PDP-433PU
88
1234
1234
C
D
F
A
B
E
1

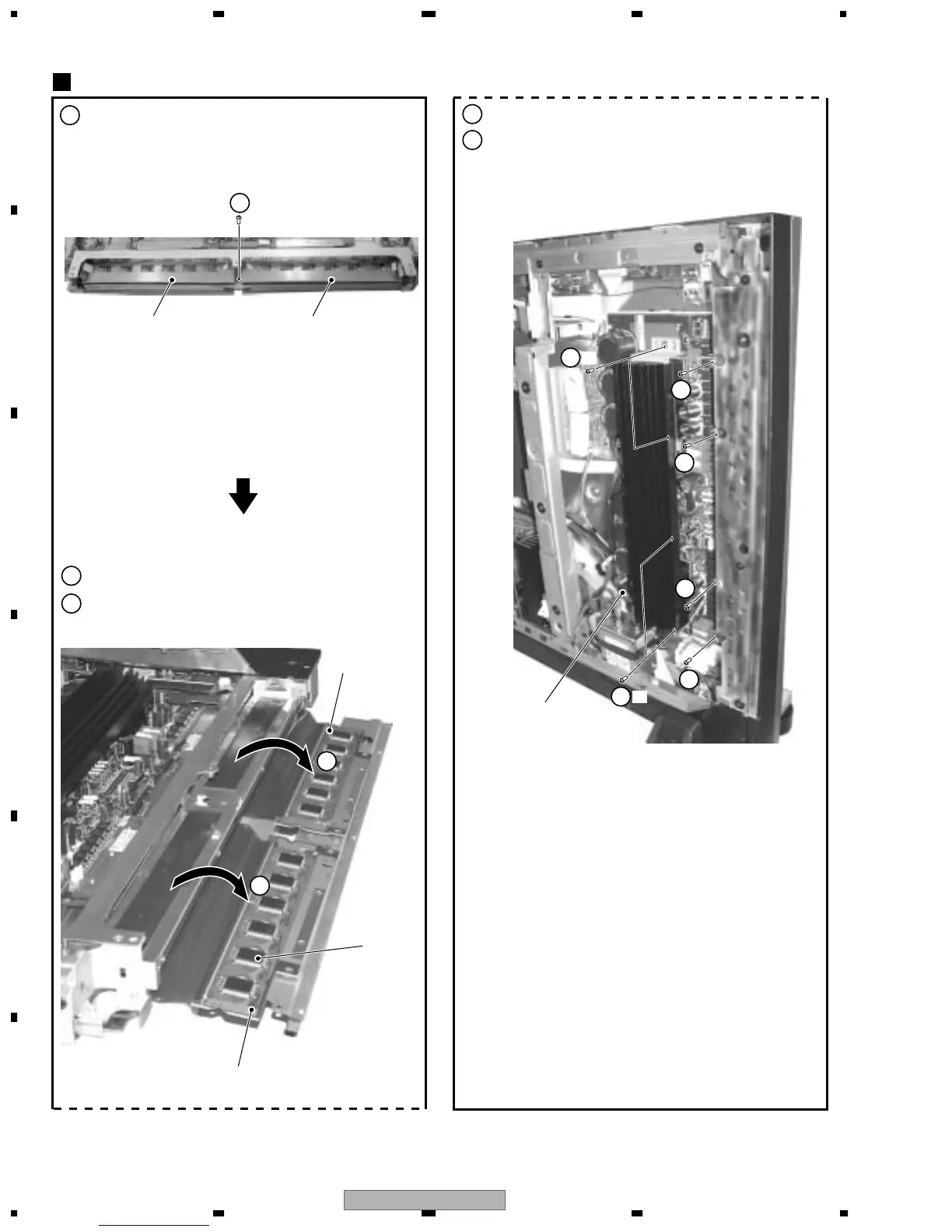

Remove the Rear Case 43P. (Screws × 19)
2
Remove the X DRIVE Assy.
(Connector, PCB Spacer × 3, Screws × 8)
X DRIVE Assy
Reverse the SCAN (A) and SCAN (B) Assemblies.
12
11
Exchange the ROM if necessary.
10
Remove the Scan IC Spring (43L) and (43R).
(Screws × 1)
×2
2
2
2
2
2
×2
2
X DRIVE Assy
11
11
SCAN (A) Assy
ROM ×6
SCAN (B) Assy
10
Scan IC Spring (43L) Scan IC Spring (43R)
