PDP-5016HD
26
1234
1234
C
D
F
A
B
E

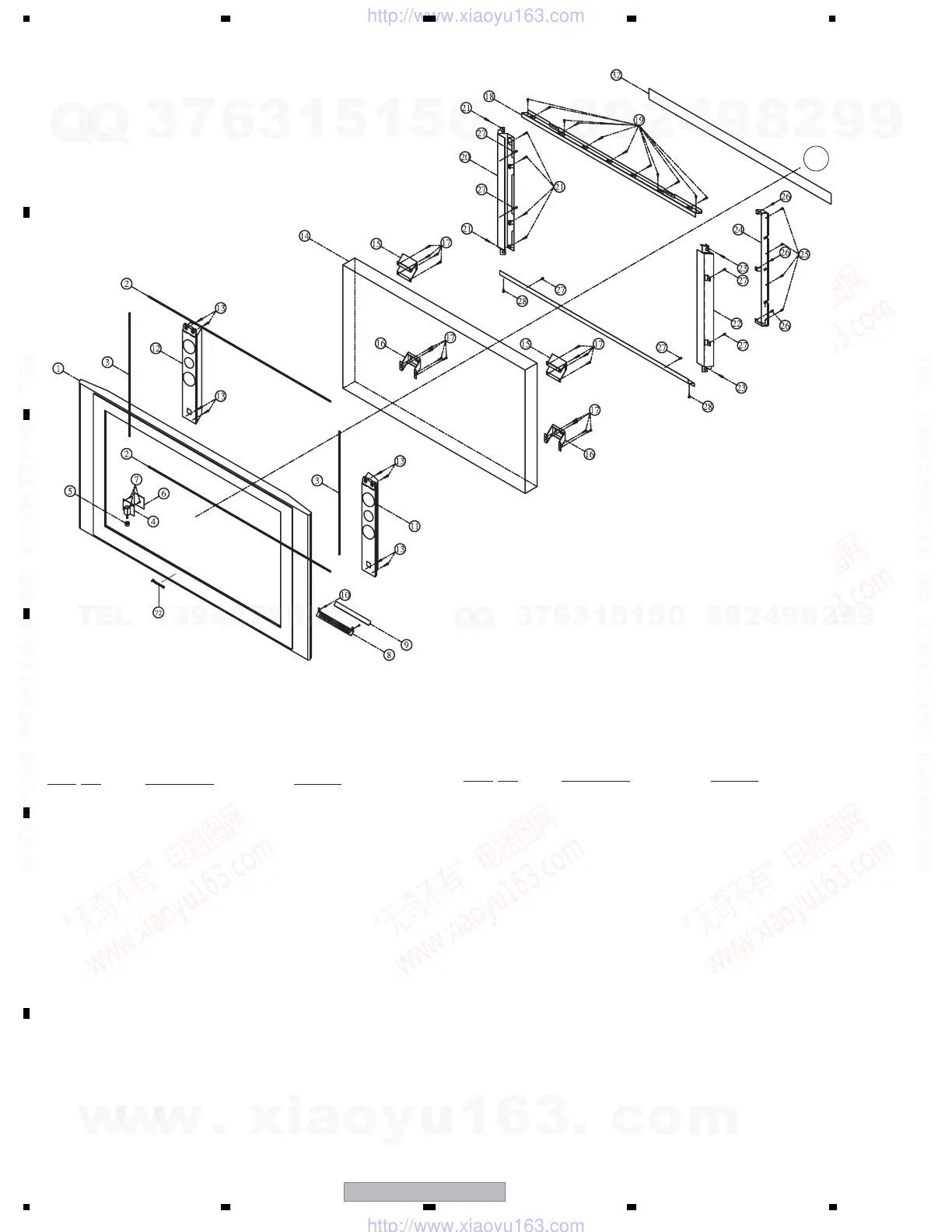

1.2.4 EXTERIOR SECTION (1/3)
(1) EXTERIOR SECTION (1/2) PARTS LIST
A
Mark
No. Description Part No.
1 Assy Cabinet Front 01421-0370
2 Cushion M-HOR 30331-02-001
3 Cushion M-VER 30331-03-001
4 SUB POWER SWITCH Assy 150-2070
5 Knob Power PDP-4214H 30251-04-002
6 Insulation Sheet-pow 30321-08-001
7 Screw T3 x 8 M1305300817
8 Knob Control 30252-14-001
9 SUB KEY Assy 220-2206
10 Screw T3 x 12 M1308301215
11 Speaker R 6 Ohm 15w /S 02400-0280
12 Speaker L 6 Ohm 15w /S 02400-0270
13 Screw T4 x 14 M1308401415
NSP 14 Panel Chassis (427) Assy AWU1171
15 Brkt Sub M-Top 30117-07-001
16 Brkt Sub M-Bot 30117-08-001
17 Screw M3 x 8 M1040300815
18 Ass'y Brkt M-hor Top 01433-0190
19 Screw M3 x 8 M1040300815
20 Ass'y Brkt M-Ver R Bot 01433-0210
21 Screw T3 x 8 M1318300815
22 Ass'y Brkt M-Ver L Bot 01433-0220
23 Screw M3 x 8 M1040300815
24 Brkt M-Ver R Top 30164-03-001
25 Screw M3 x 8 M1040300815
26 Screw M3 x 8 M1040300815
27 Ass'y Brkt M-Hor Bot 01433-0200
28 Screw T3 x 8 M1318300815
29 Brkt Fan 30172-03-001
30 Fan D08R-12TL 10511-10-001
31 Screw M4 x 20 M1040402017
32 EMI Tape 50 (W) X 900 (L) 02900-0240
72 Pioneer Badge AAM1113
