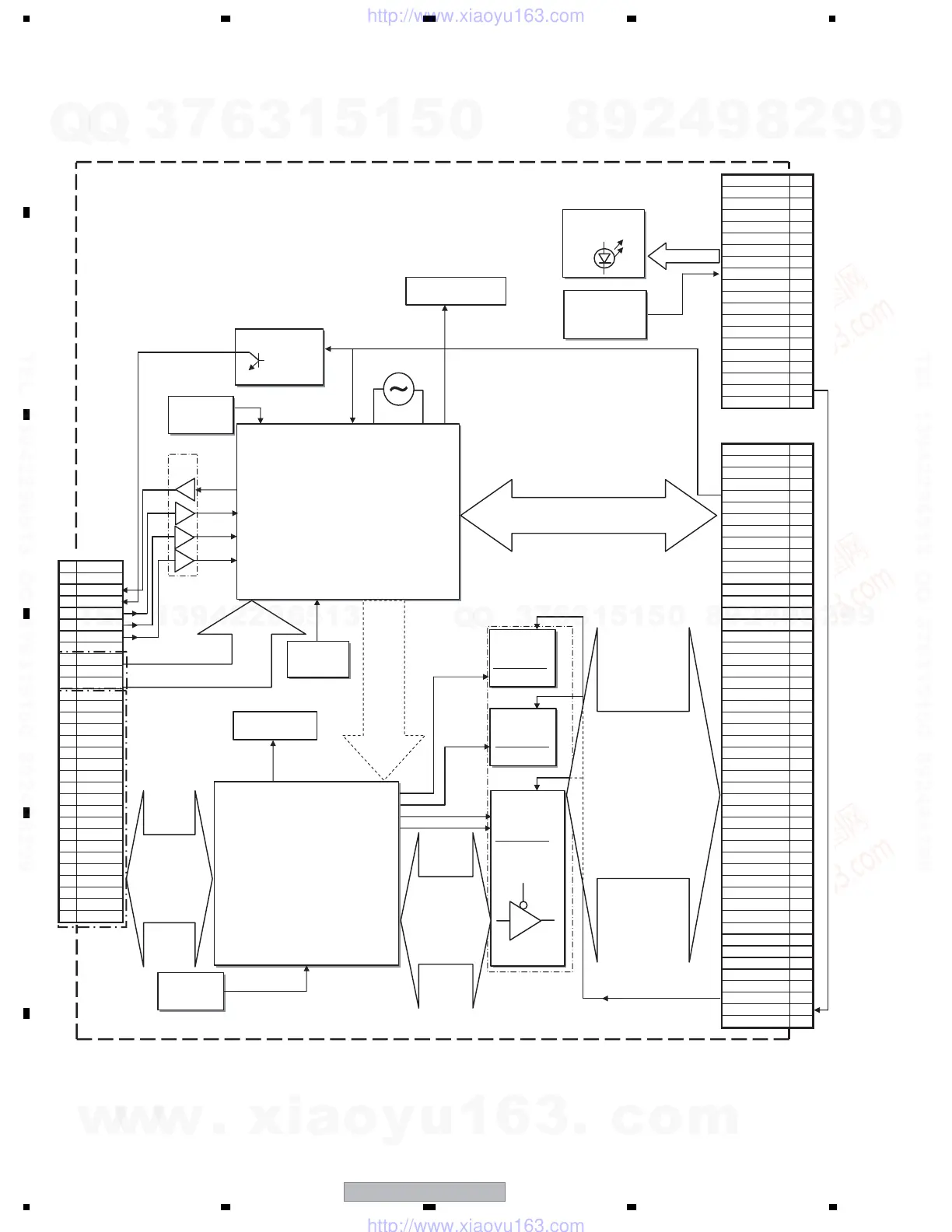

3.15 INTERFACE ASSY
V+3V_D 20
V+3V_D 19
V+3V_D 18
GND_D 17
GND_D 16
GND_D 15
LED_R 14
LED_B 13
MSEL 12
-11
-10
-9
-8
-7
-6
-5
-4
-3
STB3.3V 2
GND_D 1
CN104
CN103
GND_D 1
REQ_Md 2
RxD_Md 3
TxD_Md 4
AC_OFF 5
*N.C.* 6
GND_D 7
Para-VideoB0 8
Para-VideoB1 9
CN102 Para-VideoB2 10
1 GND_D Para-VideoB3 11
2 GND_D Para-VideoB4 12
3 STATUS Para-VideoB5 13
4AC_OFF Para-VideoB6 14
5
THEATER Para-VideoB7 15
6POWER Para-VideoB8 16
7MSEL Para-VideoB9 17
8 GND_D GND_D 18
9
I2C_SDA Para-VideoG0 19
10 GND_D
Para-VideoG1 20
11 I2C_SCL
Para-VideoG2 21
12 GND_D
Para-VideoG3 22
13 A5P
Para-VideoG4 23
14 A5M
Para-VideoG5 24
15 GND_D
Para-VideoG6 25
16 A4P
Para-VideoG7 26
17 A4M
Para-VideoG8 27
18 A3P
Para-VideoG9 28
19 A3M GND_D 29
20 CLKP
Para-VideoR0 30
21 CLKM
Para-VideoR1 31
22 GND_D
Para-VideoR2 32
23 A2P
Para-VideoR3 33
24 A2M
Para-VideoR4 34
25 A1P
Para-VideoR5 35
26 A1M
Para-VideoR6 36
27 A0P
Para-VideoR7 37
28 A0M
Para-VideoR8 38
29 GND_D
Para-VideoR9 39
30 GND_D GND_D 40
31 GND_D GND_D 41
CLK(xCLK) 42
GND_D 43
DE 44
HD(xHD) 45
VD 46
THEATER 47
INP_MUTE 48
V+3V_UCOM2 49
GND_D 50
IC111
DS90C388VJD
LDVS Receiver
LVDS
Serial
Video Data
IC103/IC104/
IC105/IC106
TC74VCX541FT
INP_MUTE
Gate/Buffer
10-BIT
Parallel
RGB
Video Data
IC101
PST3628UR
RESET
IC109
Clock
INP_MUTE
Gate/Inverter
IC110
H-sync
INP_MUTE
Gate/Buffer
HD
CLK
DE
VD
10-BIT
Parallel
RGB
Video
Data
Clock
HD/VD
INP_MUTE
IC113
AGC1025- -PI-K
(R5F21246SNFP-K)
Communication Processor
-Control Commands -
via I2C communication
-Control Commands -
via RS232C communication
S104
I2C ID
"MSK"
"MP"
"DIT"
Parallel
Control
(Optional)
"SDA"
"SCL"
STATUS
THEATER
POWER
MSEL
IC107
IC102
PST3628UR
RESET
Q101
Transistor
Invert/Open
Collector
16MHz
D101/D102
LED Indicator
MSEL
Selector
STB3.3V
V+3V_D
