PDP-5016HD
27
5678
56
7
8
C
D
F
A
B
E

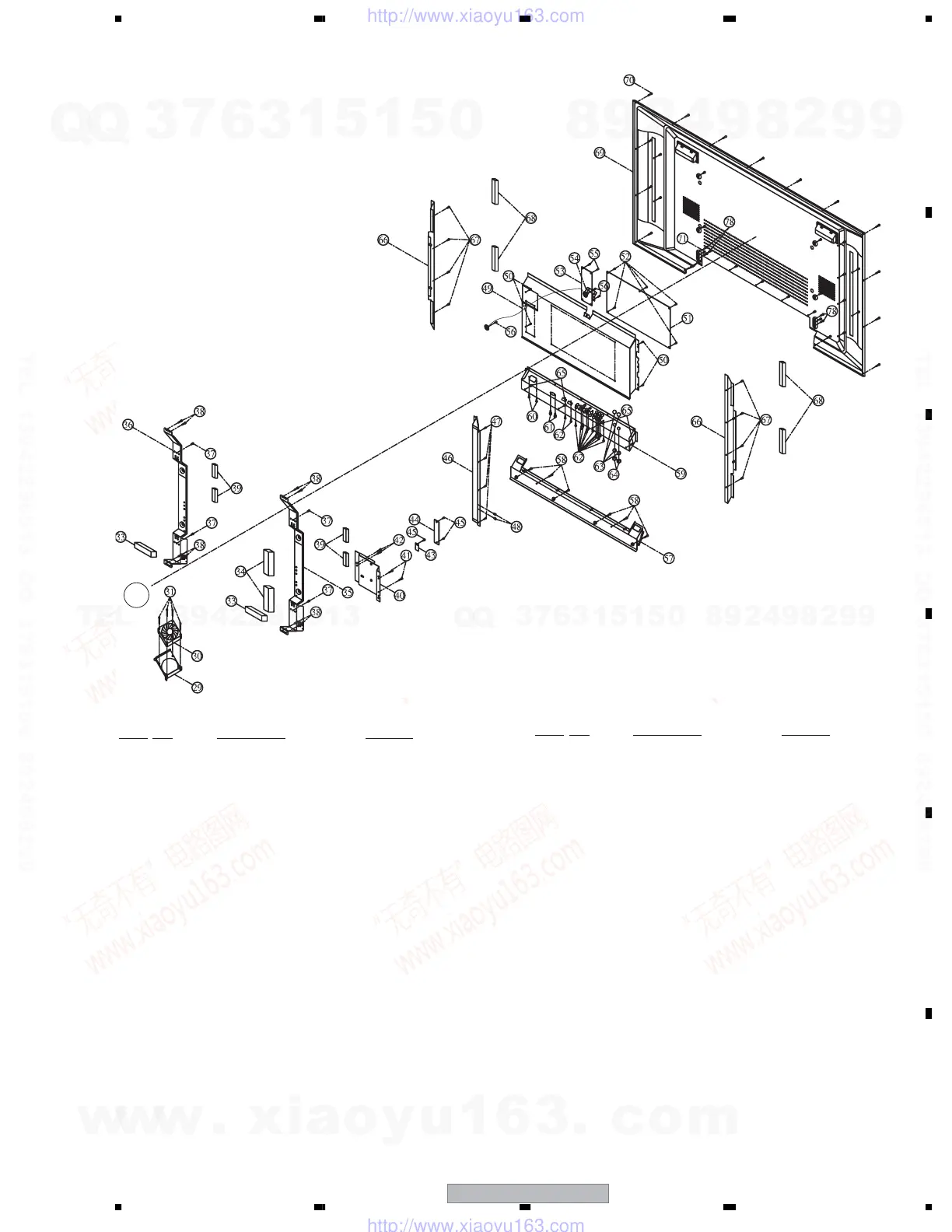

1.2.5 EXTERIOR SECTION (2/3)
(1) EXTERIOR SECTION (2/2) PARTS LIST
A
Mark
No. Description Part No.
33 EMI Gasket 25 X 25 X 50 02900-0190
34 EMI Gasket 25 X 25 X 100 02900-0200
35 Ass'y Brkt V-Supporter- R 01433-0240
36 Ass'y Brkt V-Supporter- L 01433-0230
37 Screw M4 x 8 M1015400817
38 Screw T4 x 16 M1305401617
39 EMI Gasket 13 X 15 X 51 02900-0230
40 Brkt Sub Side AV 30117-06-001
41 Screw M3 x 8 M1040300815
42 Screw M4 X 6 M1033400615
43 SUB THERMAL SENSOR Assy 220-2207
44 SUB SIDE AV Assy 220-2204
45 Screw M3x 8 M1040300815
46 Brkt Side AV-USA 30166-05-001
47 Screw M3 x 8 M1040300815
48 Screw T3 x 8 M1305300817
49 Ass'y Shield Main 01434-0080
50 Screw M3 x 8 M1040300815
51 MAIN Assy (CPU (Digital)) 010-2863
52 Screw M3 x 8 M1040300815
53 SUB EMI FILTER Assy 150-2080
54 Brkt N-Filter 30173-01-000
55 Screw M3 x 8 M1040300815
56 Screw M4 X 6 M1033400615
57 Assy Brkt Rear Bottom 01421-0380
58 Screw T4 x 16 M1305401617
59 Brkt Main AV-USA 30165-05-001
60 Screw T3 x 8 M1305300817
61 Screw M3x 8 M1116300805
62 Screw M3x 8 M1040300815
63 Washer Pai10 M1231111002
64 Nut Unf 3/8inch x 32 M1211210002
65 Screw M4x 8 M1015400817
66 Shield Side 30103-06-001
67 Screw M3x 8 M1040300815
68 Emi Gasket 110 x 15 x 15t 30501-05-009
69 Ass'y Back 01428-0120
70 Screw T4 x 16 M1305401617
71 Screw M4x 8 M1015400817
