PDP-5016HD
89
5678
56
7
8
C
D
F
A
B
E

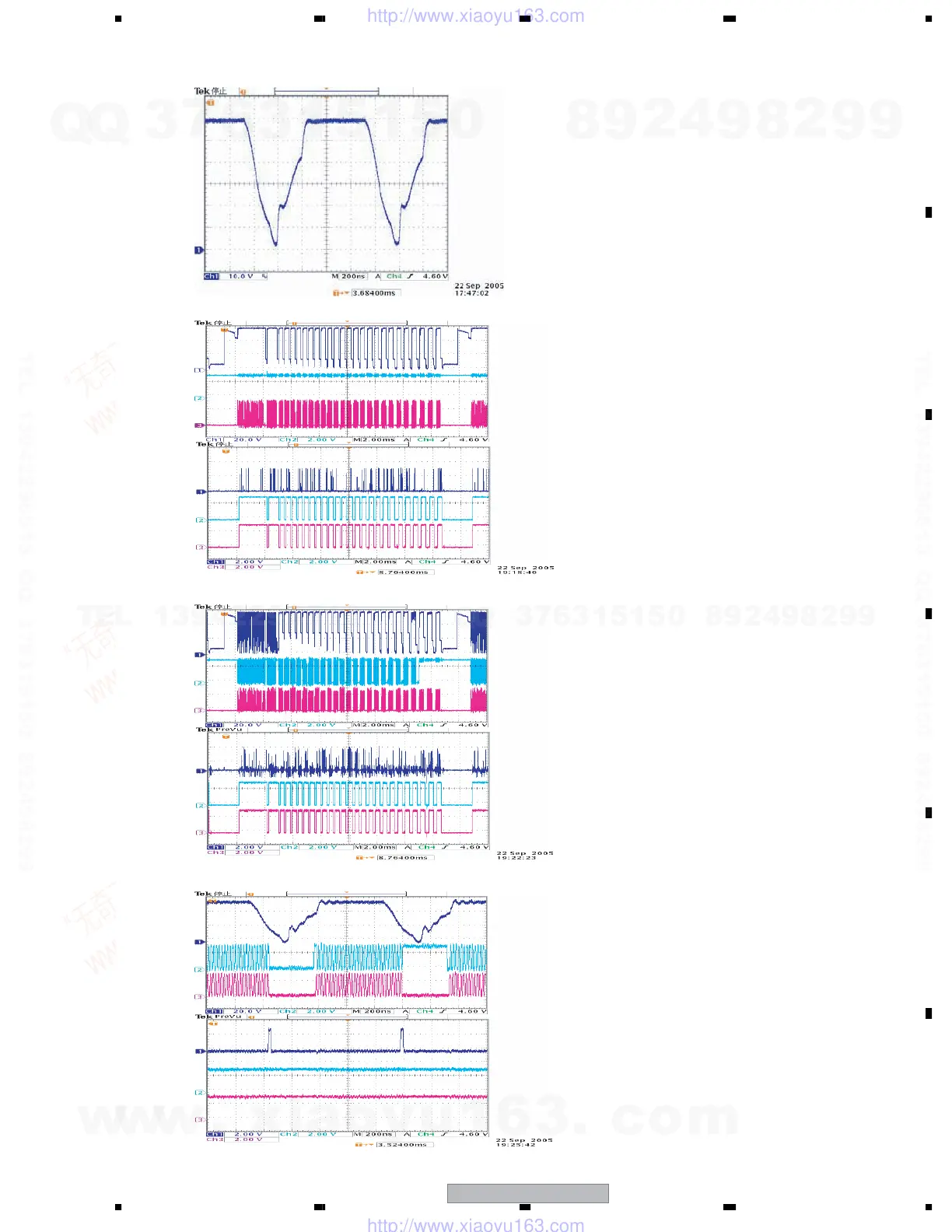

input : VIDEO 60Hz
signal : Checkered pattern of Black- White (MKSS13)
1 CH1 : IC1555 3pin (VDD2) (side-Athrough hole)
V : 10 V/div
H : 200 ns/div
VADR (Resonance part)
Incoming signals of TCP (1Field)
Incoming signals of TCP (1Field)
Incoming signals of TCP (Resonance
part)
input : VIDEO 60Hz
signal : COLOR BAR (MKSS17)
1 CH1 : IC1555 3pin (VDD2) (side-Athrough hole)
2 CH2 : IC1555 9pin (A3) side-A test plane”R_E"
3 CH3 : IC1555 16pin (CLK) side-A test plane ”CLK1"
4 CH1 : IC1555 14pin (LE) side-A test plane”LE_E"
5 CH2 : IC1555 19pin (HBLK) side-A test plane”HBLK"
6 CH3 : IC1555 17pin (LBLK) side-A test plane”LBLK"
V : 20 V/div
H : 2 ms/div
V : 2 V/div
H : 2 ms/div
V : 2 V/div
H : 2 ms/div
V : 2 V/div
H : 2 ms/div
V : 2 V/div
H : 2 ms/div
V : 2 V/div
H : 2 ms/div
input : VIDEO 60Hz
signal : Checkered pattern of Black- White (MKSS13)
1 CH1 : IC1555 3pin (VDD2) (side-Athrough hole)
2 CH2 : IC1555 9pin (A3) side-A test plane”R_E"
3 CH3 : IC1555 16pin (CLK) side-A test plane”CLK1"
4 CH1 : IC1555 14pin (LE) side-A test plane”LE_E"
5 CH2 : IC1555 19pin (HBLK) side-A test plane”HBLK"
6 CH3 : IC1555 17pin (LBLK) side-A test plane”LBLK"
V : 20 V/div
H : 2 ms/div
V : 2 V/div
H : 2 ms/div
V : 2 V/div
H : 2 ms/div
V : 2 V/div
H : 2 ms/div
V : 2 V/div
H : 2 ms/div
V : 2 V/div
H : 2 ms/div
input : VIDEO 60Hz
signal : Checkered pattern of Black- White (MKSS13)
1 CH1 : IC1555 3pin (VDD2) (side-Athrough hole)
2 CH2 : IC1555 9pin (A3) side-A test plane”R_E"
3 CH3 : IC1555 16pin (CLK) side-A test plane”CLK1"
4 CH1 :
IC1555 14pin (LE) side-A test plane”LE_E"
5 CH2 :
IC1555 19pin (HBLK) side-A test plane”HBLK"
6 CH3 : IC1555 17pin (LBLK) side-A test plane”LBLK"
V : 20 V/div
H : 200 ns/div
V : 2 V/div
H : 200 ns/div
V : 2 V/div
H : 200 ns/div
V : 2 V/div
H : 200 ns/div
V : 2 V/div
H : 200 ns/div
V : 2 V/div
H : 200 ns/div
