PDP-502MX, PDP-502MXE
75
TOP
TP301
(VADR)
TP302
(ADR GND)
TP202
(SUS GND)
TP201
(VSUS)
CN354
Pin9 (VFZ+)
TP404
(V1)
TP405
(V2)
TP355
(+14V)
TP356
(AGND)
TP113
(STB GND)
TP111
(STB +5V)
VR201
(VSUS)
VR501
(VFZ)
VR301
(VADR)
VR111
(STB+5V)
VR131
(+B)
VR356
(+14V)
VR401
(VSUS UVP)
CN354
Pin10 (VFZ–)
TP132
(P. GND)
TP131
(+B)
MAIN POWER ASSY
VF D/D
COVERTER
ASSY

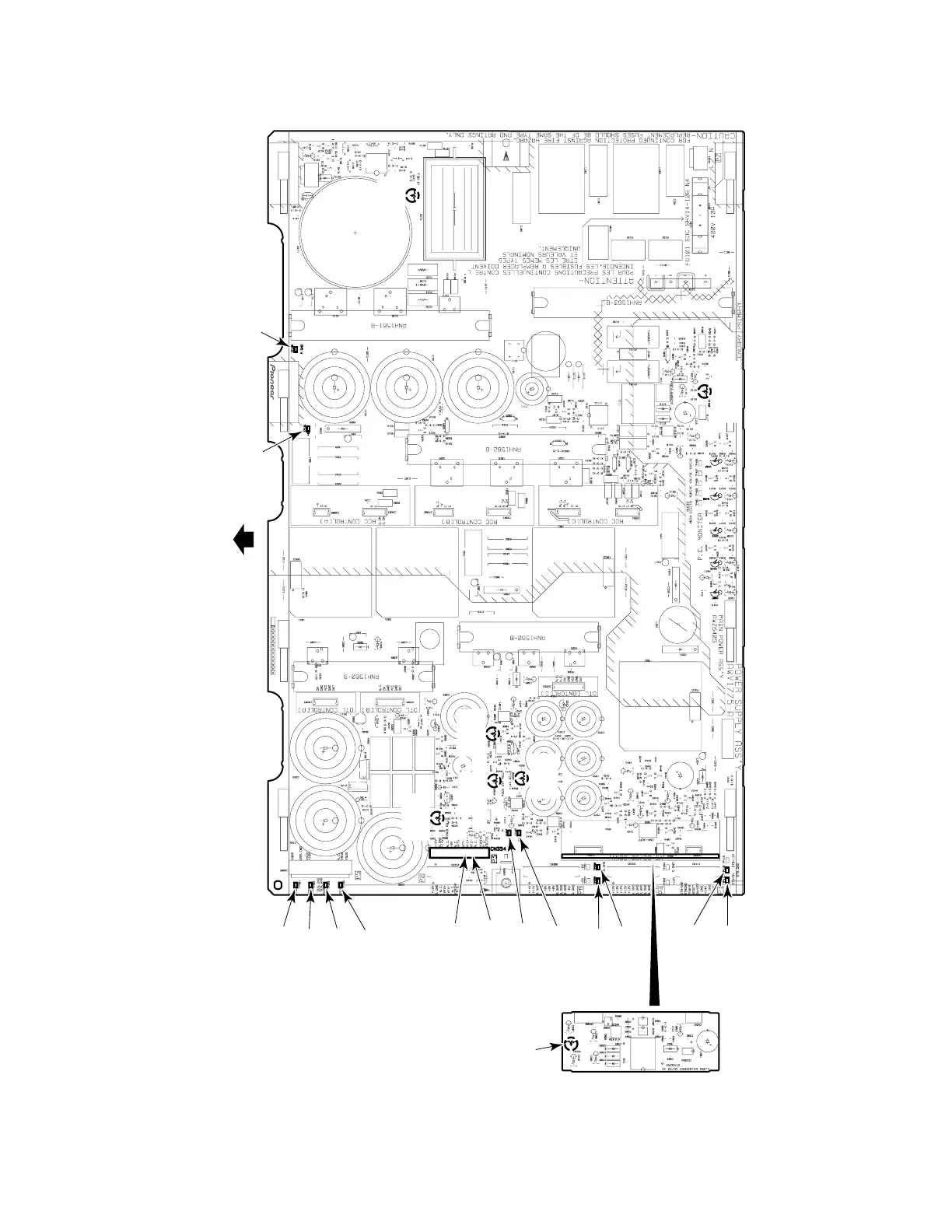

Adjusting points and Measuring points
