PDP-502MX, PDP-502MXE
74
Base Pulse
number
Adjustment

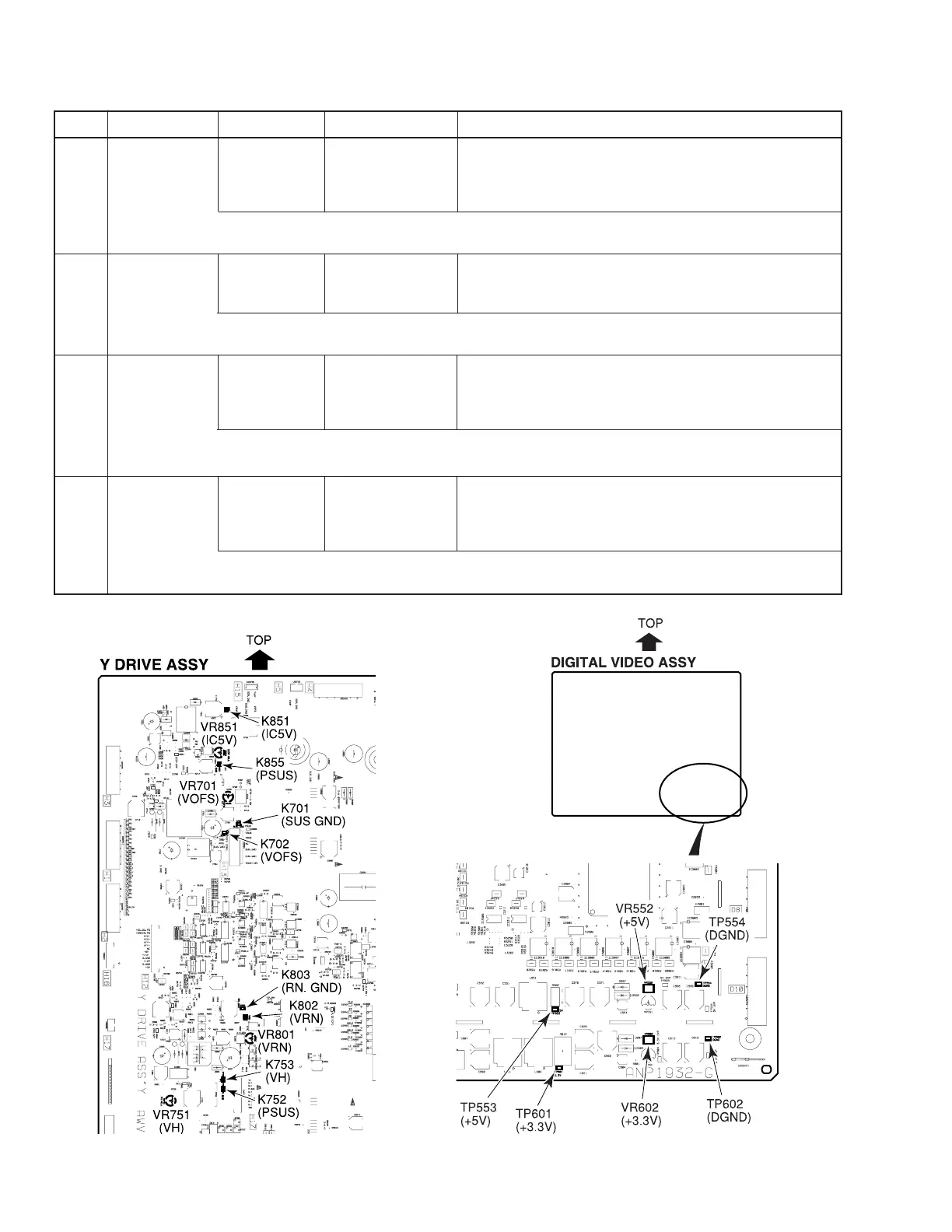

Adjusting points and Measuring points
11
Procedure
Adjusting Item Input signal Adjusting Point Adjusting Method
Any input
SUB VIDEO mode
in Factory mode
PULSE NUMBER
........."8" Key
Note) If unnecessarily adjusted, power consumption is changed and the panel is damaged.
Adjust only in case of necessity.
Set to the indicated value with the keys on the remote control unit.
(refer to SUB VIDEO mode)
ABL Level Value
Adjustment
12
Any input
SUB VIDEO mode
in Factory mode
ABL LEVEL ...."9" Key
Note) If unnecessarily adjusted, power consumption is changed and the panel is damaged.
Adjust only in case of necessity.
Set to the indicated value with the keys on the remote control unit.
(refer to SUB VIDEO mode)
ABL Level Offset
adjustment
13
Any input
REFERENCE 1
in Factory mode
ABL LEV OFFSET
........."BS9" Key
Note) If unnecessarily adjusted, power consumption is changed and the panel is damaged.
Adjust only in case of necessity.
Adjust to the ABL value mentioned on the "Drive voltage label" at the
chassis of the glass panel.
Pulse Number
Offset adjustment
14
Any input
REFERENCE 1
in Factory mode
PLS NUM OFFSET
........."BS11" Key
Note) If unnecessarily adjusted, power consumption is changed and the panel is damaged.
Adjust only in case of necessity.
Set to the indicated value with the keys on the remote control unit.
(refer to REFERENCE 1 mode)
To Next Page
