PDP-502MX
85

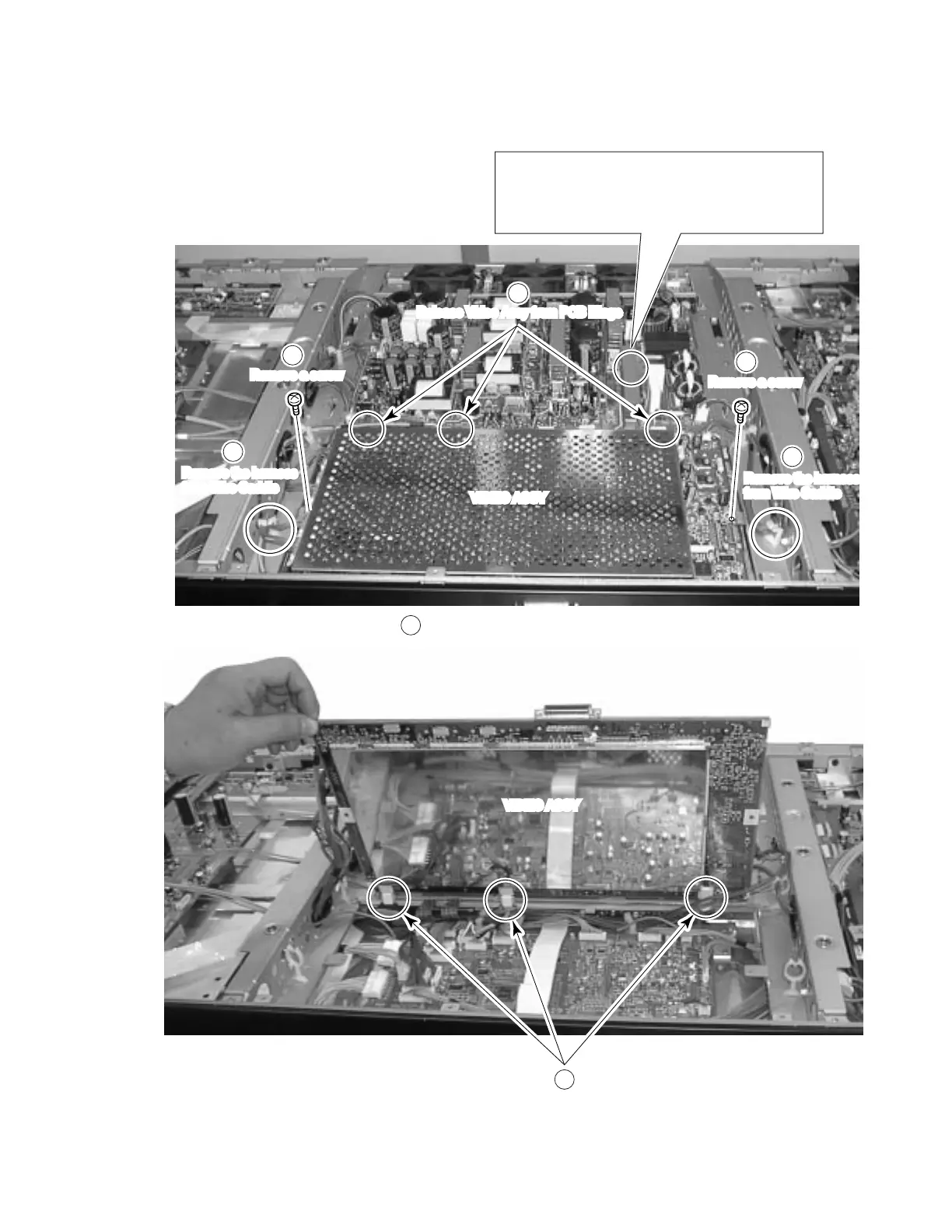

2. VIDEO ASSY
1
VIDEO ASSY
4
3
2
3
1
Note) Shield Case of Video Assy should not touch the
heat sink at the primary side of Main Power Assy in
standing Video Assy. (Noise may be generated and
that may break the Main Power Assy)
Remove all screws and nuts from Terminal Panel
Remove a screw
Remove a screw
Remove the harness
from Wire Saddle
Remove the harness
from Wire Saddle
Release Video Assy from PCB Hinge
VIDEO ASSY
5
After pulling VIDEO Assy backward to
release it from Terminal Panel, insert it
to the PCB Hinge again.
To Next Page
