63
PDP-503PE, PDP-503PU
6.2 ADJUSTMENT REQUIRED WHEN THE SET IS REPAIRED OR REPLACED
DIGITAL VIDEO Assy
When repaired
No adjustment required.
MR INTERFACE Assy
• Set slide SW according to page 22.
When replaced
SW POWER SUPPLY Module
When replaced
No adjustment required.
• Remove IC1204 (24LC04(1) SN-TBB) from the former PC
Board to replace, and install it to the new PC Board.
Y DRIVE Assy
When repaired
When replaced
1. VOFS/VH/IC5V voltage adjustment
2. Timing adjustment of pulse module
1. SUSB ground timing adjustment
2. Panel white balance adjustment
1. SUSB ground timing adjustment
2. Panel white balance adjustment
X DRIVE Assy
When repaired
When replaced
1. VRN voltage adjustment
2. Timing adjustment of pulse module
DIGITAL VIDEO
Assy
X DRIVE
Assy
Y DRIVE
Assy
MR INTERFACE
Assy
SW POWER SUPPLY
Module

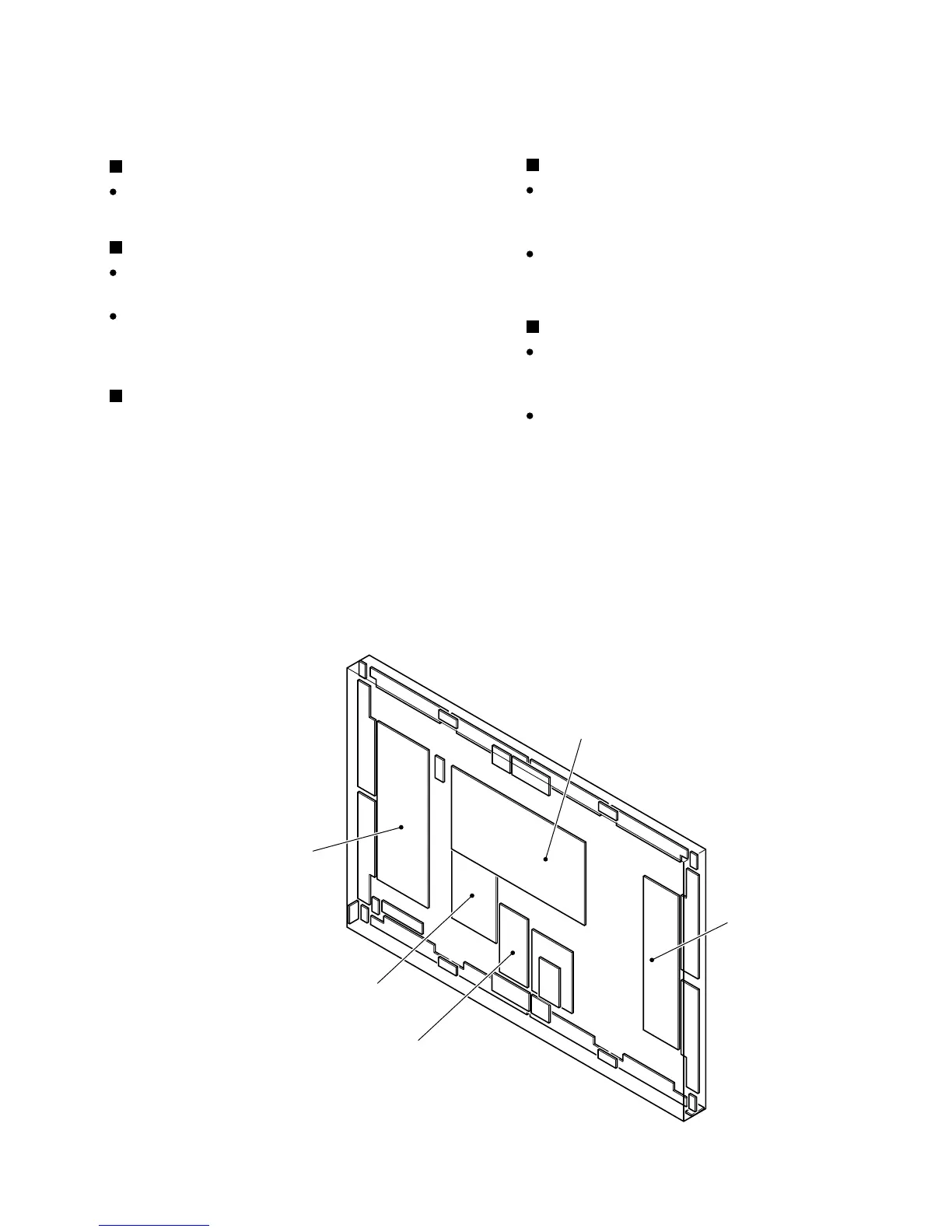

Fig. 1 PC Board Location (rear side view)
