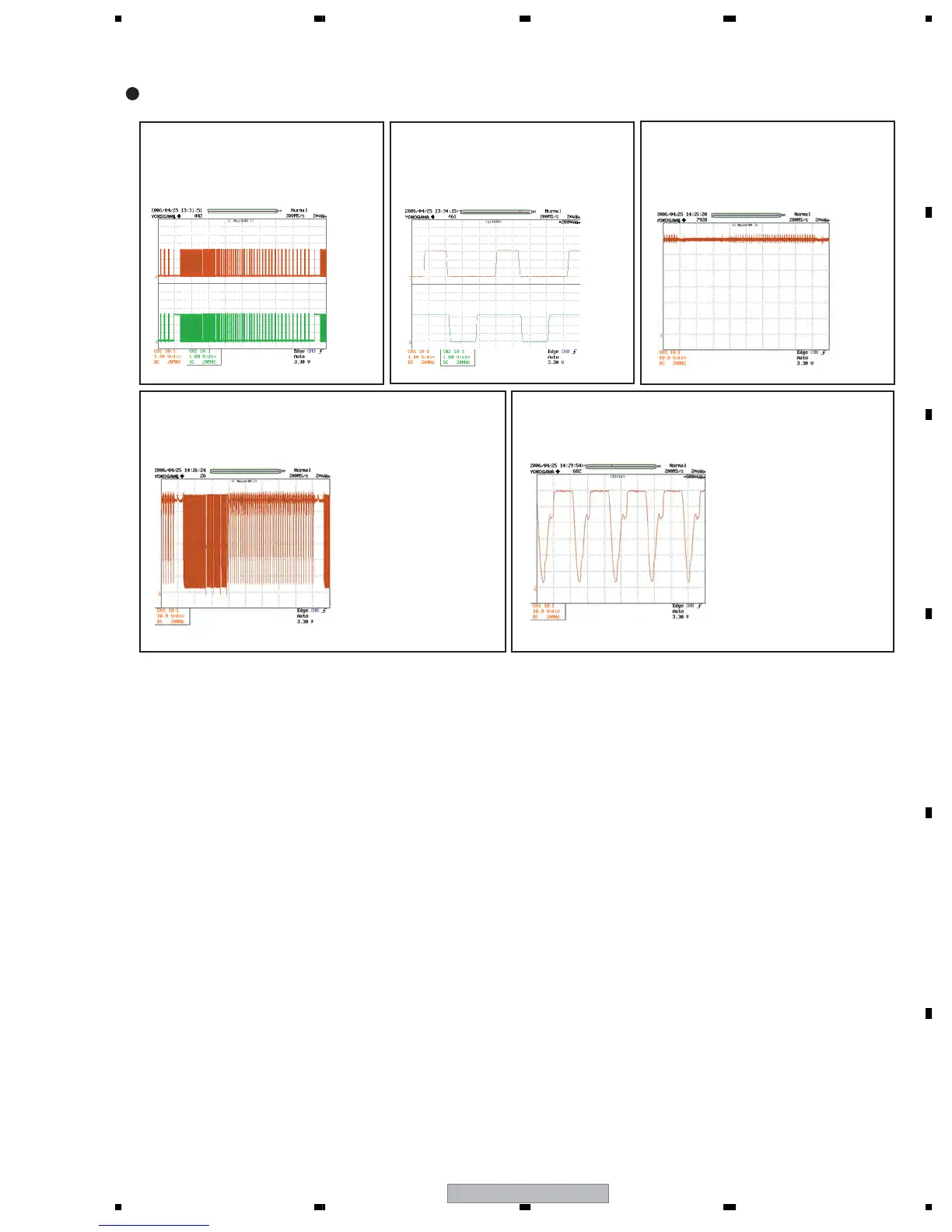

4.15 WAVEFORMS
1 input:VIDEO 60Hz
signal : COLOR BAR(MKSS17)
ch1 : ADR_B side-A test plane " B "
ch2 : ADR_D side-A test plane " D "
V : 1V/div H : 2ms/div
4 input :VIDEO 60Hz
signal : Checkered pattern of Black- White (MKSS13)
ch1 : L1730(V+ADR1)(side-A through hole)
V: 10V/div H: 2ms/div
2 input :VIDEO 60Hz
signal : COLOR BAR (MKSS17)
ch1 : ADR_B side-A test plane " B "
ch2 : ADR_D side-A test plane " D "
V : 1V/div H : 200ns/div
5 input : VIDEO 60Hz
signal : Checkered pattern of Black- White(MKSS13)
ch1 : L1730(V+ADR1)(side-A through hole)
V: 10V/div H: 500ns/div
3 input :VIDEO 60Hz
signal :COLOR BAR(MKSS17)
ch1 :L1730(V+ADR1)(side-A through hole)
V : 10V/div H : 2ms/div
60 ADDRESS ASSY
ch1
ch2
ch2
ch1
ch1
ch1
ch2
• Control signals of resonance circuit (1 Field)
• Control signals of resonance circuit (2SF)
• VADR (1 Field)
• VADR ( 1 Field)
• VADR ( 2 SF)
• ADR RESONANCE BLOCK
