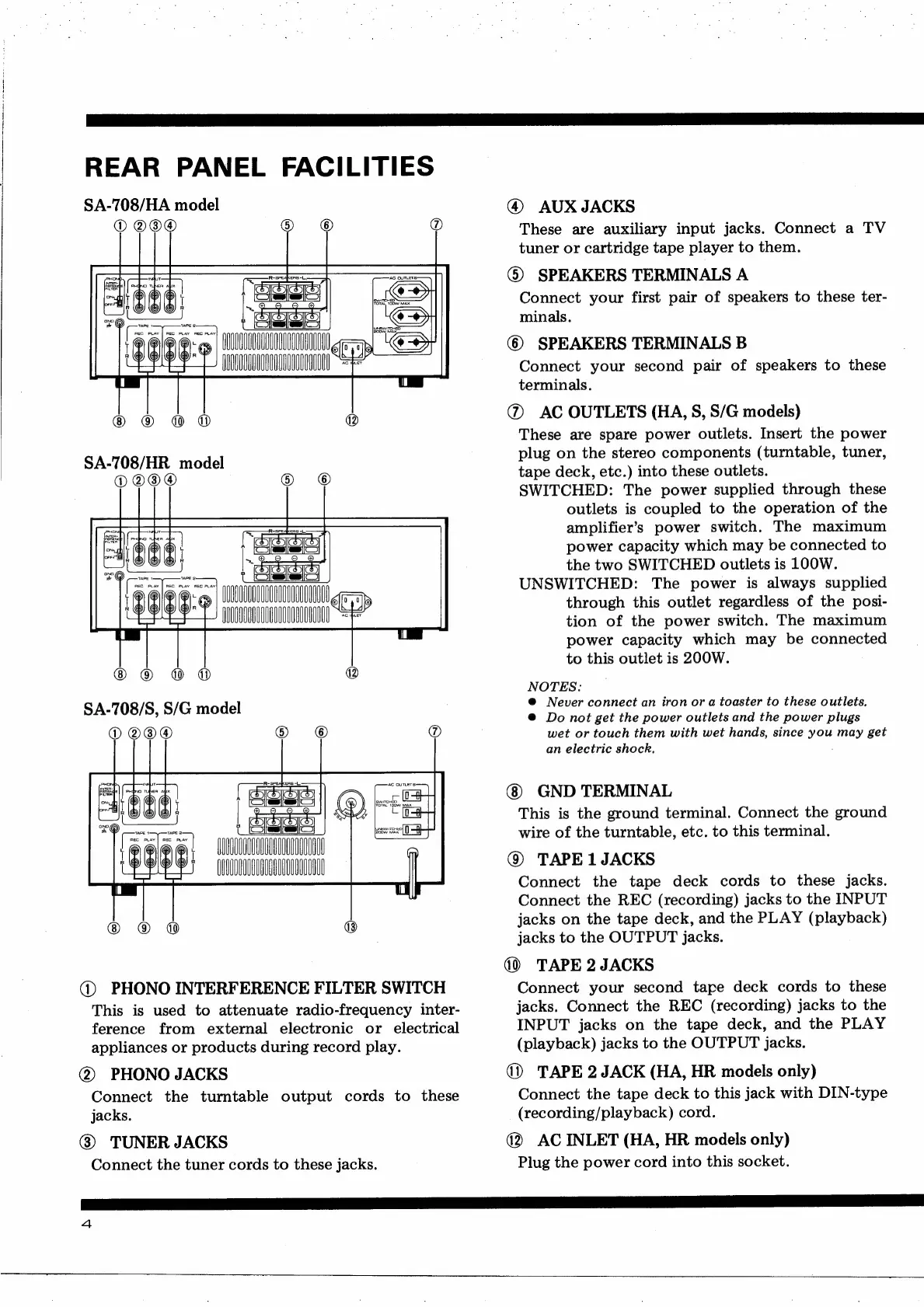

REAR PANEL FACILITIES
SA-708/HA model
Opa
i
li
Pig
0 ele
as t Oe
> eS
SS
— —a > o>
> - —s =
@ PHONO INTERFERENCE FILTER SWITCH
This is used to attenuate radio-frequency inter-
ference from external electronic or electrical
appliances or products during record play.
@ PHONO JACKS
Connect the turntable output cords to these
jacks.
@® TUNER JACKS
Connect the tuner cords to these jacks.
4
@ AUX JACKS
These are auxiliary input jacks. Connect a TV
tuner or cartridge tape player to them.
© SPEAKERS TERMINALS A
Connect your first pair of speakers to these ter-
minals.
© SPEAKERS TERMINALS B
Connect your second pair of speakers to these
terminals.
@ AC OUTLETS (HA, S, S/G models)
These are spare power outlets. Insert the power
plug on the stereo components (turntable, tuner,
tape deck, etc.) into these outlets.
SWITCHED: The power supplied through these
outlets is coupled to the operation of the
amplifier’s power switch. The maximum
power capacity which may be connected to
the two SWITCHED outlets is 100W.
UNSWITCHED: The power is always supplied
through this outlet regardless of the posi-
tion of the power switch. The maximum
power capacity which may be connected
to this outlet is 200W.
NOTES:
@ Never connect an iron ora toaster to these outlets.
@ Do not get the power outlets and the power plugs
wet or touch them with wet hands, since you may get
an electric shock.
GND TERMINAL
This is the ground terminal. Connect the ground
wire of the turntable, etc. to this terminal.
@ TAPE 1 JACKS
Connect the tape deck cords to these jacks.
Connect the REC (recording) jacks to the INPUT
jacks on the tape deck, and the PLAY (playback)
jacks to the OUTPUT jacks.
TAPE 2 JACKS
Connect your second tape deck cords to these
jacks. Connect the REC (recording) jacks to the
INPUT jacks on the tape deck, and the PLAY
(playback) jacks to the OUTPUT jacks.
@ TAPE 2 JACK (HA, HR models only)
Connect the tape deck to this jack with DIN-type
(recording/playback) cord.
a2 AC INLET (HA, HR models only)
Plug the power cord into this socket.
