CONNECTIONS
11
En

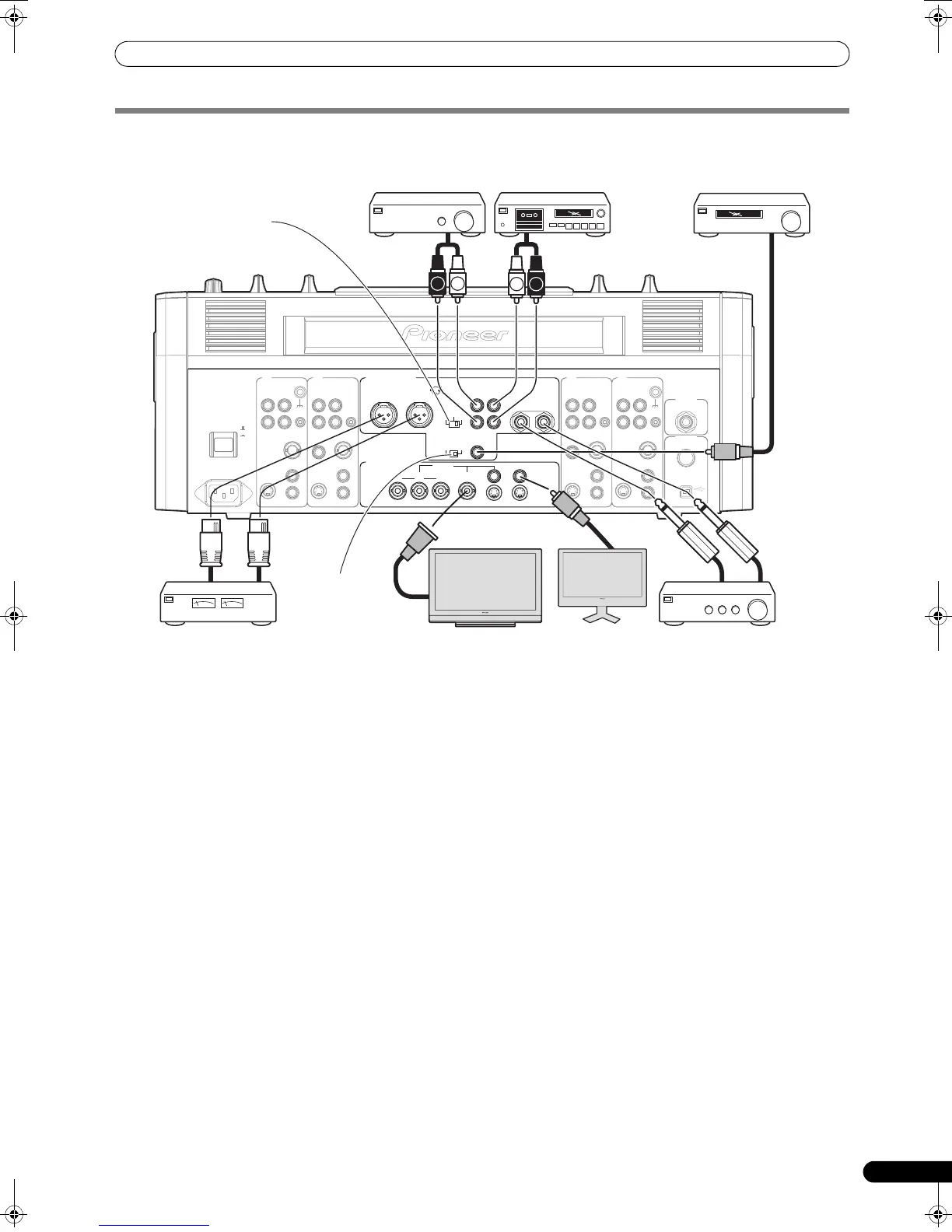

CONNECTING OUTPUTS
Audio master output
This unit is furnished with balanced output MASTER OUT 1
(supporting XLR plugs), and unbalanced output MASTER OUT 2
(supporting RCA plugs).
Using the MASTER ATT. switch, adjust the output level to match
the input sensitivity of the power amplifier used.
If the operating panel’s MONO/STEREO switch is set to [MONO],
the master output will be a monaural combination of L+R
channels.
Booth monitor output
TRS output for ø 6.3 mm phone plug. The sound volume for this
output is controlled by the BOOTH MONITOR level dial,
independently of the master output level setting.
Recording output
These are output connectors for recording, supporting RCA plugs.
Digital output
This is a coaxial digital output connector, supporting RCA plugs.
The sampling frequency can be set to 96 kHz/24-bit format or
48 kHz/24-bit format to match the connected device.
Turn power off before changing this switch position.
Video master output
Supports component, composite (RCA, BNC connector) and S-
VIDEO outputs.
Monitor output
Supports composite and S-VIDEO outputs.
POWER
AC IN
ON
OFF
PHONO
SIGNAL GND
CONTROL
SYNC
OUT
DVD
VIDEO
S-VIDEO
L
R
DVD/LINE LINE
DIGITAL
IN
CONTROL
SYNC
OUT
DVD
VIDEO
S-VIDEO
L
R
DVD
4 3
LINE
SIGNAL GND
CONTROL
SYNC
OUT
DVD
VIDEO
S-VIDEO
L
R
DVD PHONO
DIGITAL
IN
CONTROL
SYNC
OUT
DVD
USB
OUT
VIDEO
S-VIDEO
L
R
DVD/LINE
21
MIC2
MIDI
MASTER OUT 1
1 GND 2 HOT
MASTER
ATT.
MASTER
COMPONENT COMPOSITE
YC
B CR
-3 dB
-6 dB 0 dB
3 COLD
DIGITAL OUT
S-VIDEO S-VIDEO
MONITOR
MASTER
OUT 2
BOOTH
MONITOR
(TRS)
L
R
LR
REC
OUT
R
AUDIO OUT
VIDEO OUT
L
fs (Hz)
48 k 96 k
L R
LR
Power amplifier
(RCA plug input
connectors)
Cassette deck
(analog input
recording device)
Sampling
frequency
selector switch
Digital input AV amplifier
(digital input
recording device)
Power amplifier
(XLR plug input connectors)
MASTER ATT. switch
Power amplifier
(for booth monitor)
Plasma display Display
(for monitor)
SVM-1000_B_En.book 11 ページ ２００７年１１月２６日 月曜日 午後１２時５４分
