BASIC OPERATIONS
13
En

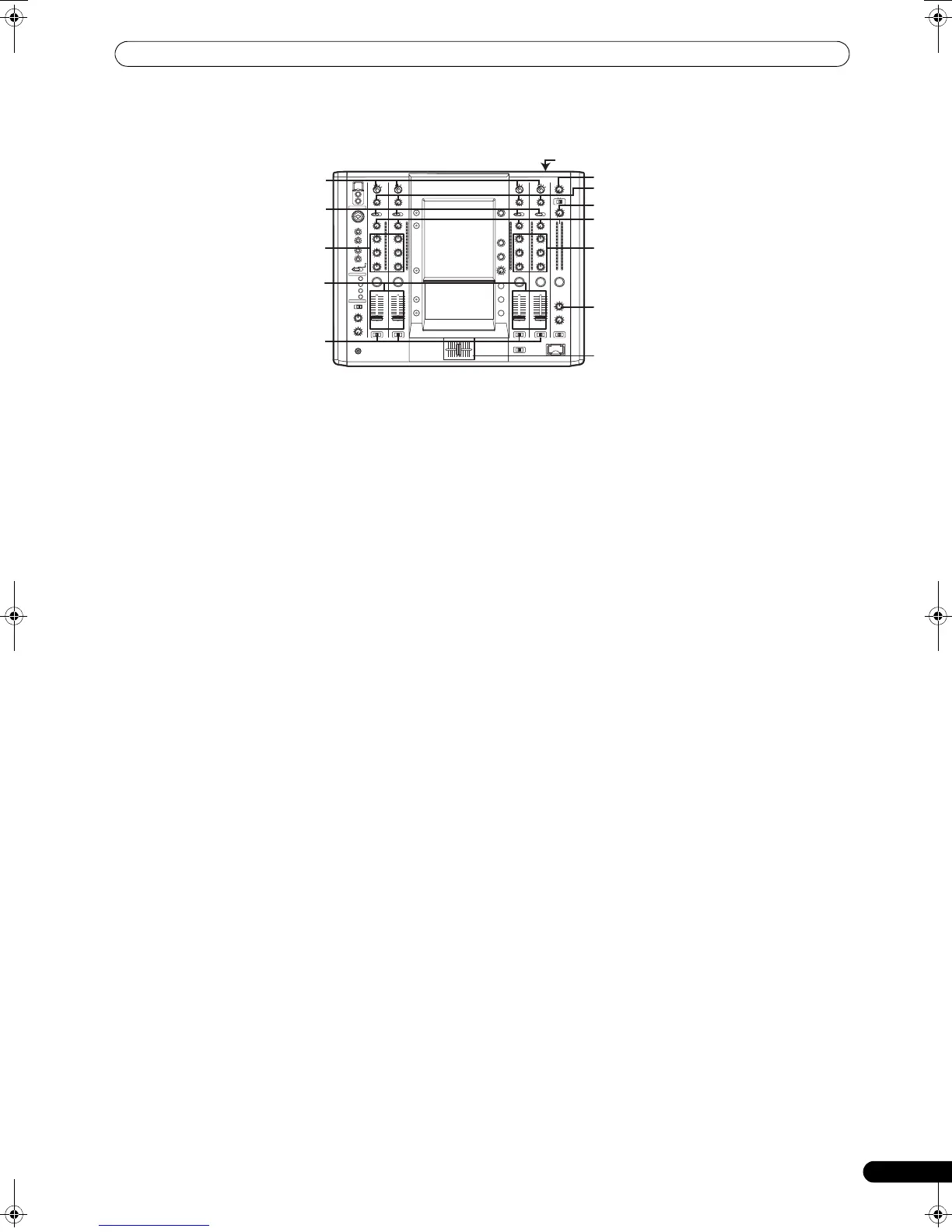

BASIC OPERATIONS
1 Set rear panel POWER switch to [ON].
2 Set the AUDIO INPUT switch for the desired channel to match
the type of connected component.
• When using the DVD input, set to [DVD].
• When using LINE input, set to [LINE].
• When using DVD/LINE input, set to [DVD/LINE].
• When using DIGITAL input, set to [DIGITAL].
• When using PHONO input, set to [PHONO].
3 Use the VIDEO INPUT switch for the selected channel to
choose the video input.
4 Use the AUDIO TRIM dial to adjust the input level for each
channel.
5 Use the VIDEO TRIM dial to adjust the input level for each
channel.
6 Use the channel equalizer dials (HI, MID, LOW) to adjust the
tone.
7 Use the channel fader lever to adjust the sound volume of
the selected channel.
8 To use the cross fader on the selected channel, set the CROSS
FADER ASSIGN switch to either cross fader channel A or
channel B, and operate the cross fader lever (A/B).
• When not using the cross fader, set the CROSS FADER
ASSIGN
switch to [THRU].
9 Use the AUDIO MASTER LEVEL dial to adjust the overall
sound volume.
10 Use the VIDEO MASTER LEVEL dial to adjust the overall
luminance level.
11 Use the BALANCE dial to adjust the sound balance between
right and left.
HI
10
9
8
7
6
5
4
3
2
1
0
10
9
8
7
6
5
4
3
2
1
0
POWER
AUDIO TRIM
VIDEO TRIM
VIDEO MASTER LEVEL
AUDIO MASTER LEVEL
BALANCE
HI, MID,
LOW
HI, MID,
LOW
CROSS FADER
ASSIGN
AUDIO
INPUT
VIDEO
INPUT
Channel fader
lever
Cross fader lever
(A/B)
