Pioneer SVM-1000 User Manual

CONNECTIONS
12
En

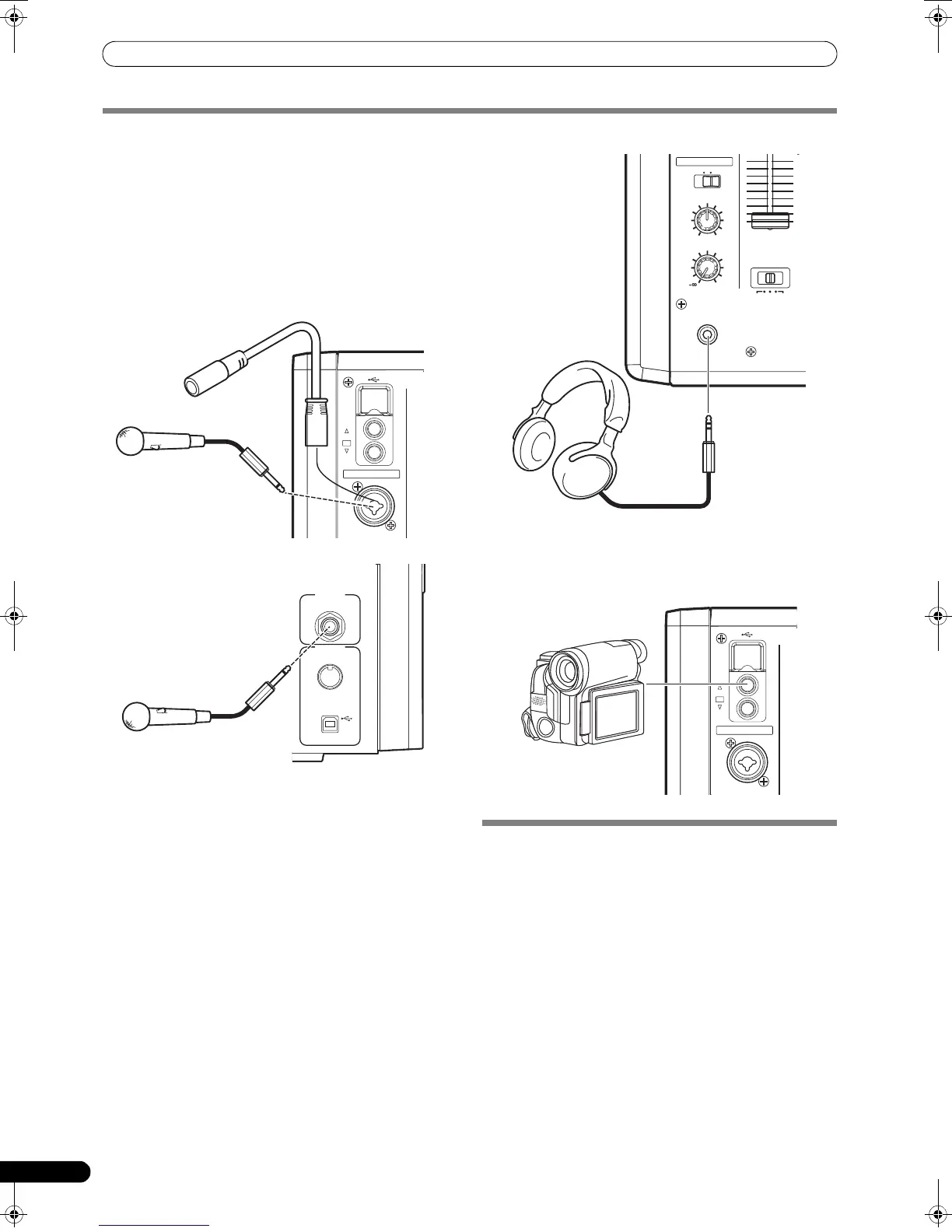

CONNECTING MICROPHONE AND HEADPHONES
Microphone
A microphone with XLR-type or Ø 6.3 mm phone-type plug can be
connected to the MIC 1 connector on the operation panel (upper) .
The MIC 2 jack on the connection panel (rear) can be used to
connect a microphone with Ø 6.3 mm phone-type plug.
• When using a microphone, set the operating panel’s MIC switch
to [ON] or [TALK OVER], and adjust the LEVEL dial as
necessary.
When not using a microphone, it is recommended to set the
MIC switch to [OFF] and rotate the LEVEL dial fully
counterclockwise to the [–∞] side.
Headphones
The PHONES jack on the operating panel (upper) can be used to
connect headphones with a Ø 6.3 mm stereo phone plug.
External video connector
A camera, DVD player or other video output device can be
connected to the CH 1/CH 4 video input connectors on the
operating panel (top).
CONNECTING THE POWER CORD
Connect the power cor d last.
When all connections are completed, connect one end of the
furnished power cord to the AC inlet on the rear panel, and the
plug on the other end to a household AC outlet, or the auxiliary
power outlet on an amplifier. Use only the furnished power cord for
this connection.
USB
OUT
MIC2
MIDI
MIC
USB
CH 1
VIDEO
EX
CH 4
MIC 1
Microphone 1
Microphone 2
HEAD PHONES
CROSS FADER
ASSIGN
PROFESSIONAL S
O
SVM
-
9
8
7
6
5
4
3
2
1
0
A THRU B
0
MONO SPLIT STEREO
MIXING
PHONES
MASTER CUE
LEVEL
Headphones
MIC
USB
CH 1
VIDEO
EX
CH 4
MIC 1
Video cameras and
devices
SVM-1000_B_En.book 12 ページ ２００７年１１月２６日 月曜日 午後１２時５４分
