Pit Boss Competition Series Assembly And Operation

ENGLISH
25
  

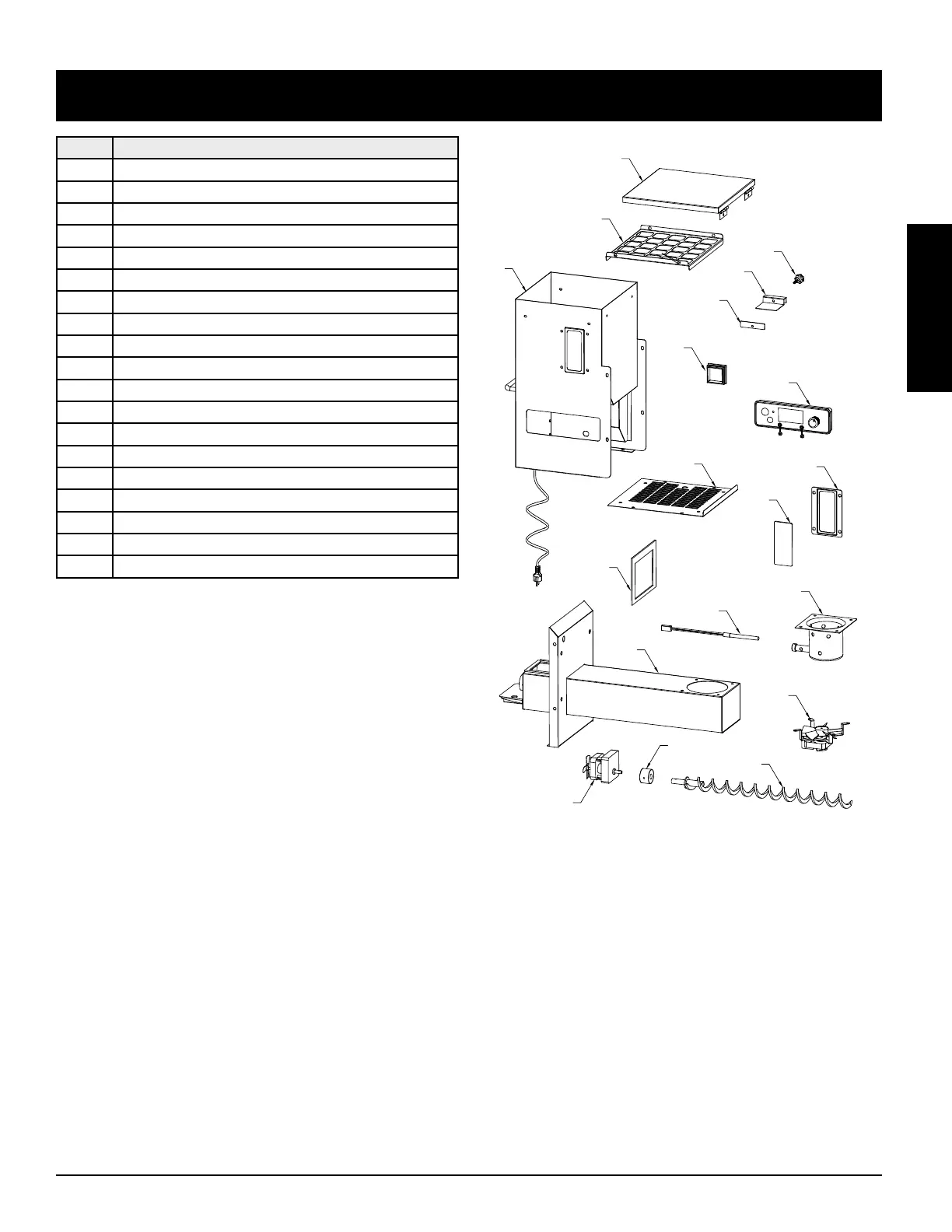

Part# Description
1 Hopper Lid (x1)
2 Hopper Safety Screen (x1)
3 Hopper Box Housing (x1)
4 Access Panel (x1)
5 Plate Screw (x1)
6 Drop Chute Plate (x1)
7 Rubber Seal (x1)
8 Drop Chute Cover (x1)
9 Control Board (x1)
10 Hopper Sight Glass Plate (x1)
11 Hopper Sight Glass (x1)
12 Hopper Housing Gasket (x1)
13 Auger Box Housing (x1)
14 Igniter (x1)
15 Burn Pot (x1)
16 Combustion Fan (x1)
17 Auger Motor (x1)
18 Nylon Bushing (x1)
19 Auger Flighting Assembly (x1)
NOTE: Due to ongoing product development, parts are subject to change without notice.
1
2
3
5
4
11
12
14
18
16
17
19
9
7
8
10
6
15
13

Pit Boss Competition Series Specifications

General

Material	Steel
Fuel Type	Wood Pellets
Temperature Range	180°F to 500°F
Grates Material	Porcelain-Coated Steel
Ignition Type	Automatic
Warranty	5 years
