Pit Boss Competition Series Assembly And Operation

ENGLISH
6
  

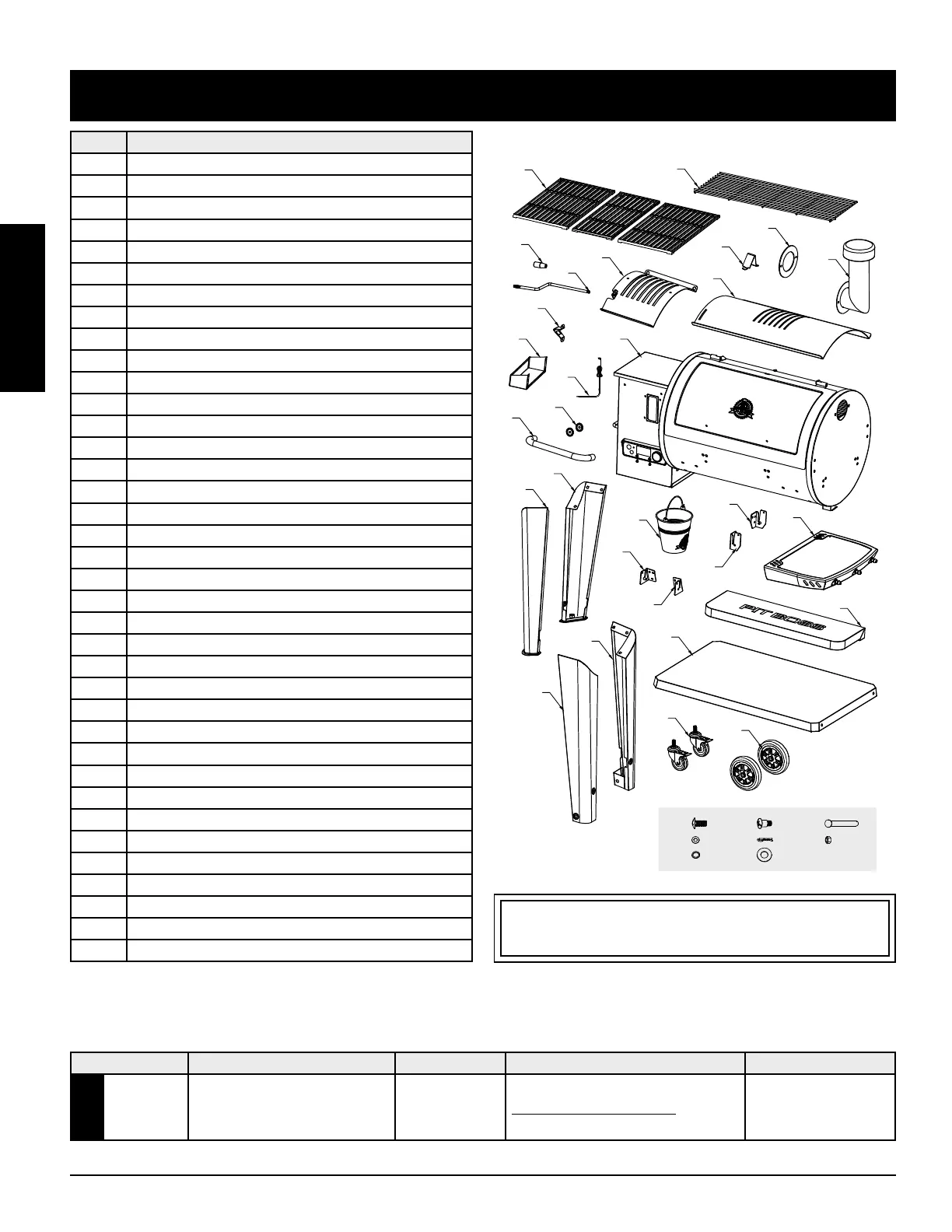

Part Description
1 Upper Cooking Grate (x1)
2 Cooking Grate (x3)
3 Lid Stopper (x1)
4 Chimney Gasket (x1)
5 Chimney (x1)
6 Flame Broiler™ Adjusting Bar Handle (x1)
7 Flame Broiler™ Adjusting Bar (x1)
8 Flame Broiler™ Slider (x1)
9 Flame Broiler™ Main Plate (x1)
10 Main Barrel (x1)
11 Bottle Opener (x1)
12 Spice Box (x1)
13 Meat Probe (x1)
14 Lid Handle Bezel (x2)
15 Lid Handle (x1)
16 Support Leg / Front (x1)
17 Support Leg / Back (x1)
18 Support Leg for Wheel / Front (x1)
19 Support Leg for Wheel / Back (x1)
20 Grease Bucket (x1)
21 Side Shelf Bracket/ Front (x1)
22 Side Shelf Bracket / Back (x1)
23 Side Shelf (x1)
24 Front Shelf Bracket / Left (x1)
25 Front Shelf Bracket / Right (x1)
26 Front Shelf (x1)
27 Bottom Shelf (x1)
28 Locking Caster Wheel (x2)
29 Wheel (x2)
A Screw (x30)
B Washer (x30)
C Locking Washer (x30)
D Step Screw (x4)
E Wheel Cotter Pin (x2)
F Wheel Washer (x2)
G Wheel Axle Pin (x2)
H Locking Nut (x4)
NOTE: Due to ongoing product development, parts are subject to change without notice. Contact
Customer Care if parts are missing when assembling the unit.
MODEL ASSEMBLED (WxDxH) WEIGHT COOKING AREA TEMPERATURE RANGE

8501
1,456  x 821  x 1,324  /
57.3 . x 32.3 . x 52.1 .
70.5  /
155.4 
   1,655  / 256.6 . .
  3,824  / 592.8 . .
  5,479  / 849.4 . .
82260° /
180500°
1
2
4
3
10
11
12
16
15
18
19
21
22
23
24
25
26
27
28
29
20
17
8
6
7
9
5
14
13
  
 

 
   
110120 , 60 z, 250 , 3  

Pit Boss Competition Series Specifications

General

Material	Steel
Fuel Type	Wood Pellets
Temperature Range	180°F to 500°F
Grates Material	Porcelain-Coated Steel
Ignition Type	Automatic
Warranty	5 years
