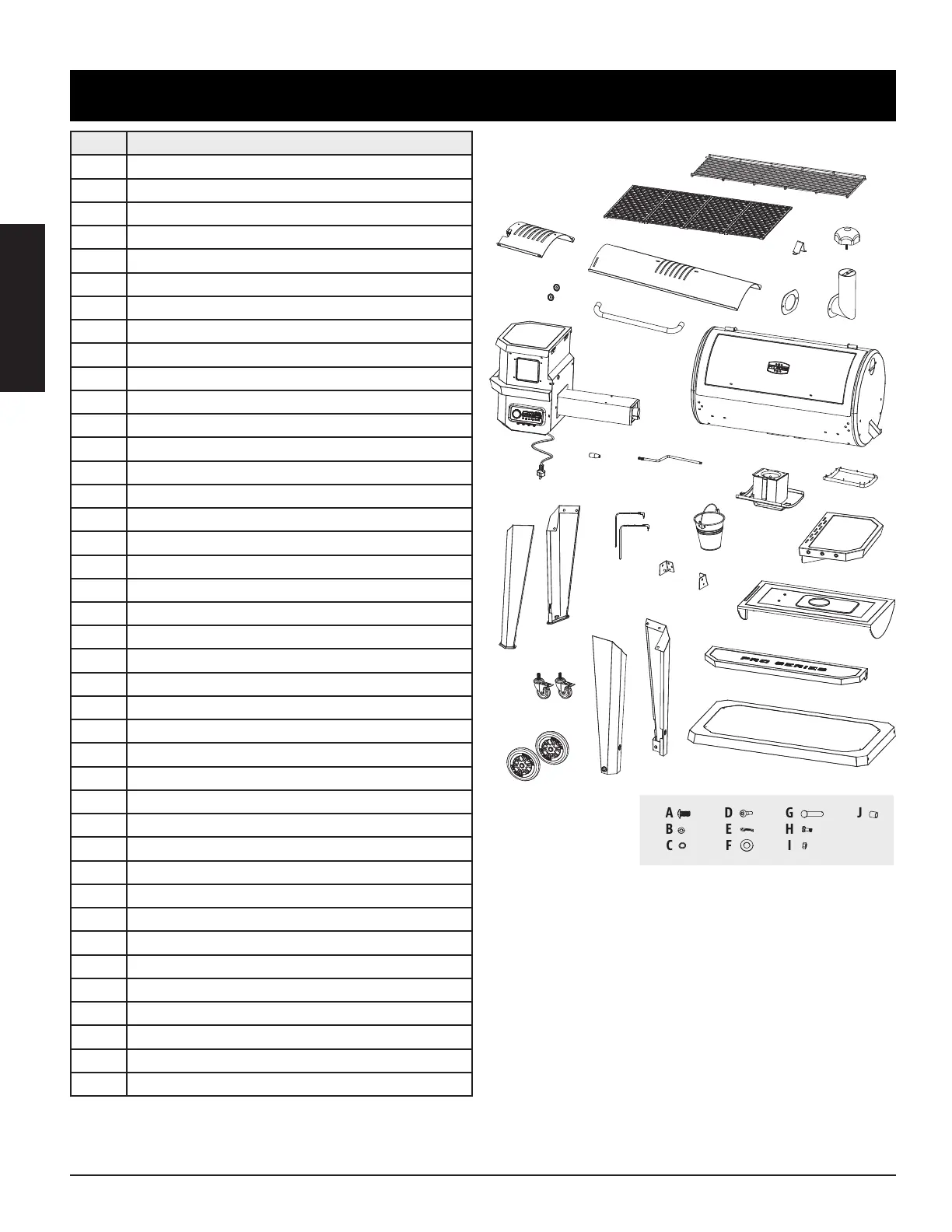

Pit Boss PB1150PS2 - Grill Replacement Parts

ENGLISH
28
  
1
2
4
3
10
11
12
15
14
17
18
20
21
22
23
24
25
26
27
28
29
30
   
  
  
19
16
8
6
7
9
5
Part# Description
1 Porcelain-Coated Steel Upper Cooking Rack (x1)
2 Porcelain-Coated Match Pattern Cast-Iron Cooking Grid (x4)
3 Lid Stopper (x1)
4 Flame Broiler Slider (x1)
5 Flame Broiler Main Plate (x1)
6 Chimney Cap (x1)
7 Chimney Stack (x1)
8 Chimney Gasket (x1)
9 Lid Handle (x1)
10 Lid Handle Bezel (x2)
11 Hopper Assembly (x1)
12 Main Barrel (x1)
13 Flame Broiler Adjusting Bar Handle (x1)
14 Flame Broiler Adjusting Bar (x1)
15 Ash Box (x1)
16 Ash Box Gasket (x1)
17 Side Shelf (x1)
18 Diffuser Plate (x1)
19 Grease Bucket (x1)
20 Meat Probe (x2)
21 Front Shelf Bracket / Left (x1)
22 Front Shelf Bracket / Right (x1)
23 Front Shelf (x1)
24 Left Support Leg - Front (x1)
25 Left Support Leg - Back (x1)
26 Right Support Leg - Front (x1)
27 Right Support Leg - Back (x1)
28 Bottom Shelf (x1)
29 Locking Caster Wheels (x2)
30 Wheel (x2)
A Screw (x28)
B Washer (x24)
C Locking Washer (x22)
D Tool Hook (x3)
E Wheel Cotter Pin (x2)
F Wheel Washer (x2)
G Wheel Axle Pin (x2)
H Screw (x2)
I Nut (x2)
J Bushing (x2)
NOTE: Due to ongoing product development, parts are subject to change without notice.
