Pitco E7 Service, Parts And Schematics

5-3

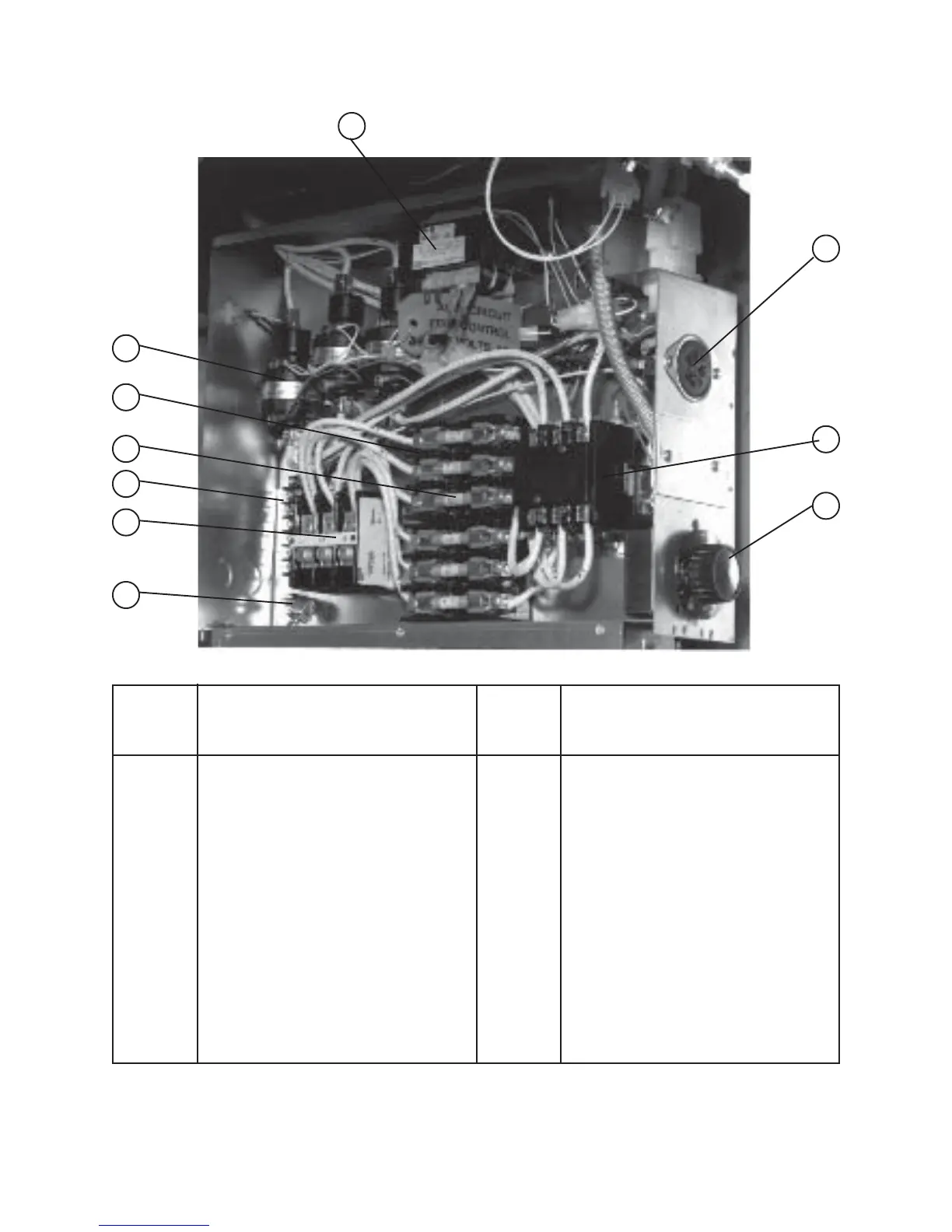

Figure 5-2 Entrance Box
Index Index
Number Description Number Description
1 Ground Lug
2 Terminal Block
3 Terminal Block
4 Fuses (6)
5 Fuse Block
6 Contactor, Mercury
7 Transformer
8 Receptacle
9 Contactor, Mechanical
10 Thermostat Knob
8
1
2
4
5
3
6
7
10
9
