6 /20
Use, maintenance and calibration
M0171G
3.5
PACKAGE CONTENTS/PRE-INSPECTION
FOREWORD
To open the packaging, use a pair of scissors or a cutter, being careful not to damage the
dispensing system or its components.
NOTE
In the event that one or more of the components described below are missing
from inside the package, please contact Piusi inc technical support.
WARNING Check that the data on the plate correspond to the desired specifications.
In the event of any anomaly, contact the supplier immediately, indicating
the nature of the defects. Do not use equipment which you suspect might
not be safe.
4 BECOMING ACQUAINTED WITH K24
FOREWORD
Electronic digital meter featuring a turbine measurement system, designed for precise
measuring of low viscosity fluids.
K24 is available in 2 versions:
1 METER – with LCD display and calibration buttons
2
PULSER – single-channel impulse, cannectable with a remote display.
Two big groups are suitable for its use:
A
With body made of inconductive plastic material of dark colour , divided into high flow
rate versions and low flow rate versions, with stainless steel F/F bushing
B
With body made of inconductive plastic material of dark colourwith galvanized steel
bushing
flow rate
values
High flow rate: 120 l/min
Low flow rate: 60 l/min
4.1 COMPATIBLE LIQUIDS
Turbine
measurement
system
The turbine is placed inside a hole through the body of k24, fitted with M-M threaded inlet
and outlet. The supplied F-F bushing enables several combinations of threads. K24 HAS 2
RUBBER PROTECTIONS, DESIGNED TO ACT AS GASKETS TOO.
The liquids compatible with k24 are at low viscosity, namely:
body made of
inconductive plastic
material of light colour
• Water
• Aus 32 (D.E.F., Ad-Blue)
• Milk not suitable for human consumption
• Windscreen
• Antifreeze
body made of
inconductive plastic
material of dark colour
• Diesel fuel
• Windscreen
• Antifreeze
• Paraffinic HVO/XTL: EN 15940

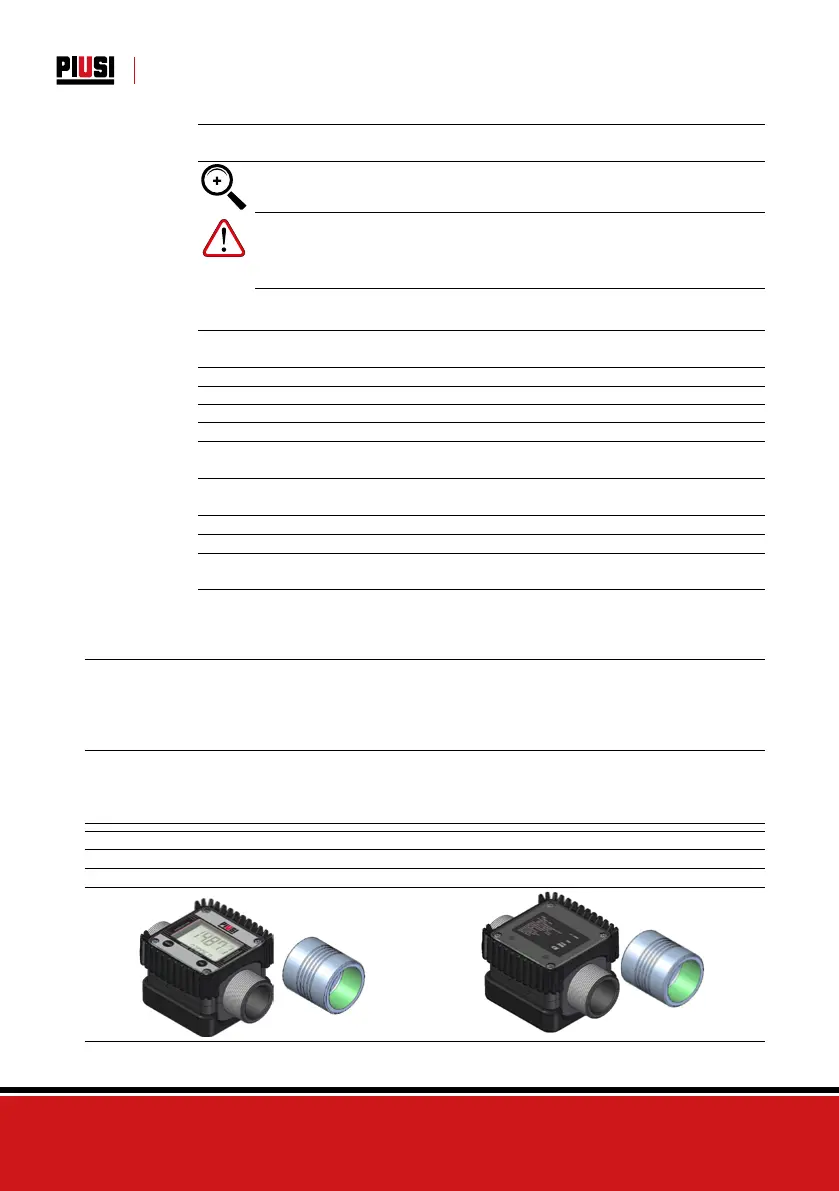

Main components: K24 Meter Main components: K24 Pulser
1 LCD display 3 CAL key 1 Plate with technical data
2 RESET key 4 F-F bushing 2 F-F bushing
11
22
33
44
11
22
