28 - ATR902 - User manual

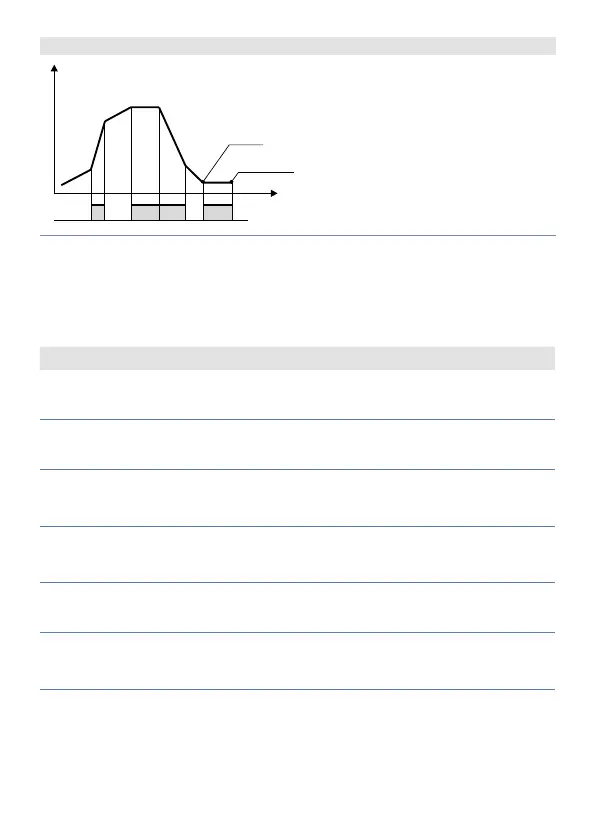

11.e Auxiliary output related to the step
Time
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
Cycle end
Operator stop
Setpoint
OFF
ON
OUT
ON/OFF status of the auxiliary output
is selectable for each step of each
cycle. The status can be selected also
at cycle end.
12 Table of Anomaly Signals
If installation malfunctions, controller switches o regulation output and reports
the anomaly.
For example, controller will report failure of a connected thermocouple visualizing
E-05
(ashing) on display. For other signals see table below:
Cause How to do
E - 01
sYs. e.
Error in EEPROM cell programming.Call Assistance.
E-03
eep. e.
Incorrect cycle data. Riprogrammare il ciclo
E-04
sYs. e.
Incorrect conguration data.
Possible loss of instrument
calibration.
Verify that conguration
parameters are correct.
E-05
prb .1
Sensor connected to AI1
broken or temperature out of
range.
Control connection with probes
and their integrity.
E-08
sYs. e.
Missing calibration. Call Assistance.
E -11
sYs. e.
Cold junction sensor failure or
room temperature outside of
allowed limits.
Call Assistance.
