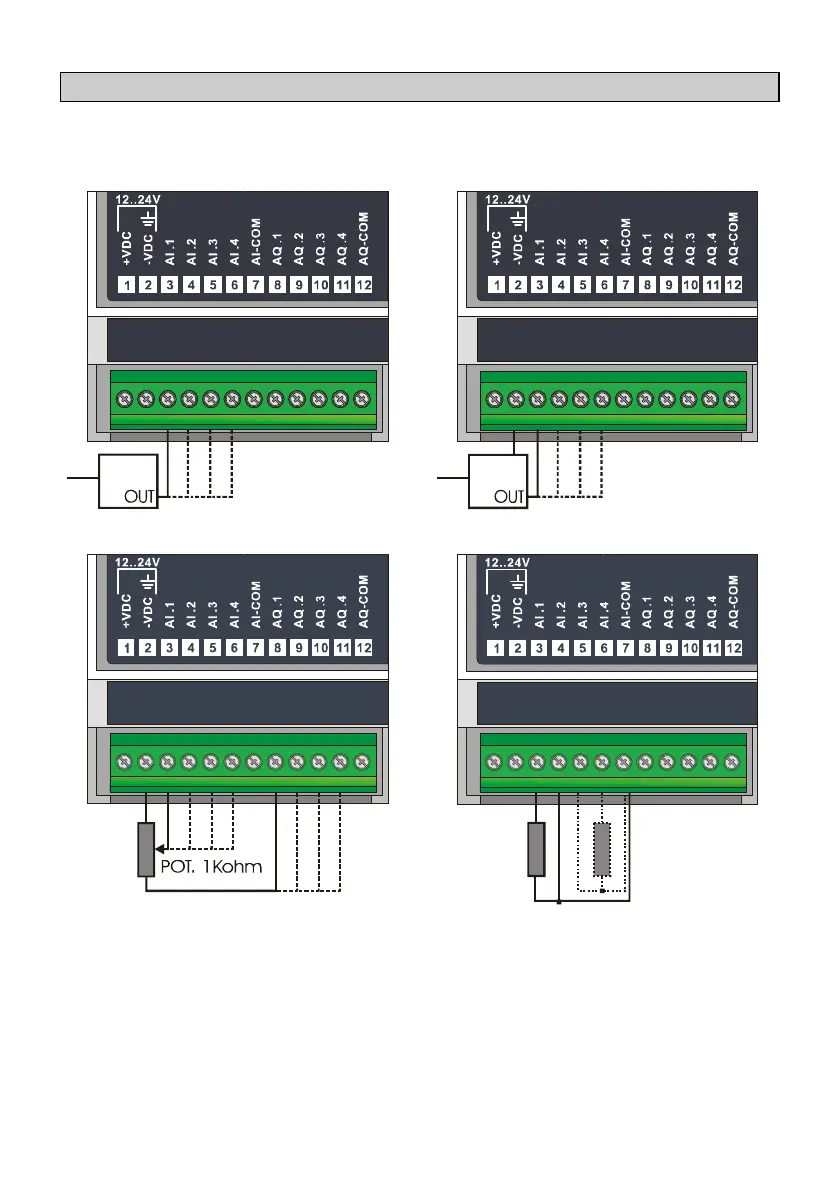

1.5.2 Connection of sensors to analogue inputs
Below some examples of connection for common sensors to the analogue
inputs of the PL260.
1 2
PT100/NI100
a 3 fili
0-10V
0-20mA
4-20mA
3 wires
+V
(21)
+
-
0-20mA
4-20mA
2 wires
+V
(21)
+
