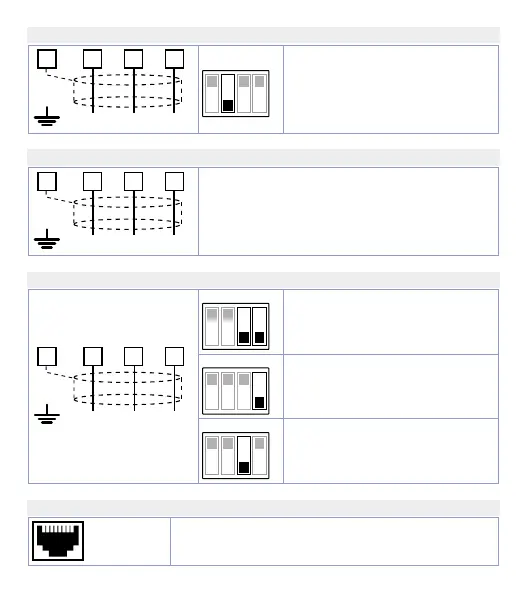

5.b CAN1 serial
43
CANH CANL C
5 6
4 3 2 1
ON OFF
CAN MASTER:
120Ω terminator
Connect any shield of the cable to
terminal 3.
5.c RS232 / COM1 serial
93
TXD RXD C
10 11
Connect any shield of the cable to terminal 3.
5.d RS485 / COM2 serial
63
C A- B+
7 8
4 3 2 1
ON OFF
RS485 MASTER:
120Ω terminator
470Ω polarizer
4 3 2 1
ON OFF
RS485 MASTER:
Only 470Ω Polarizer
4 3 2 1
ON OFF
RS485 SLAVE:
Only 120Ω Terminator
5.e Ethernet
10/100 Mbit Ethernet port to program the
development software and network connectivity.
