List of possible commands:
1) F1/Page Operations with the selected Channel Data Logger page.
• New Creating a new page;
• Delete Deleting a page;
• Info Viewing current page information;
• Open Viewing page content;
2) F2/Start Start scanning the selected channel Data Logger.
3) F3/Sort Sorting the table by Status, Name of the Channel Data Logger, Channel Plan
or Limit Plan.
4.4.4.3 Creating New Channel Data Logger Page

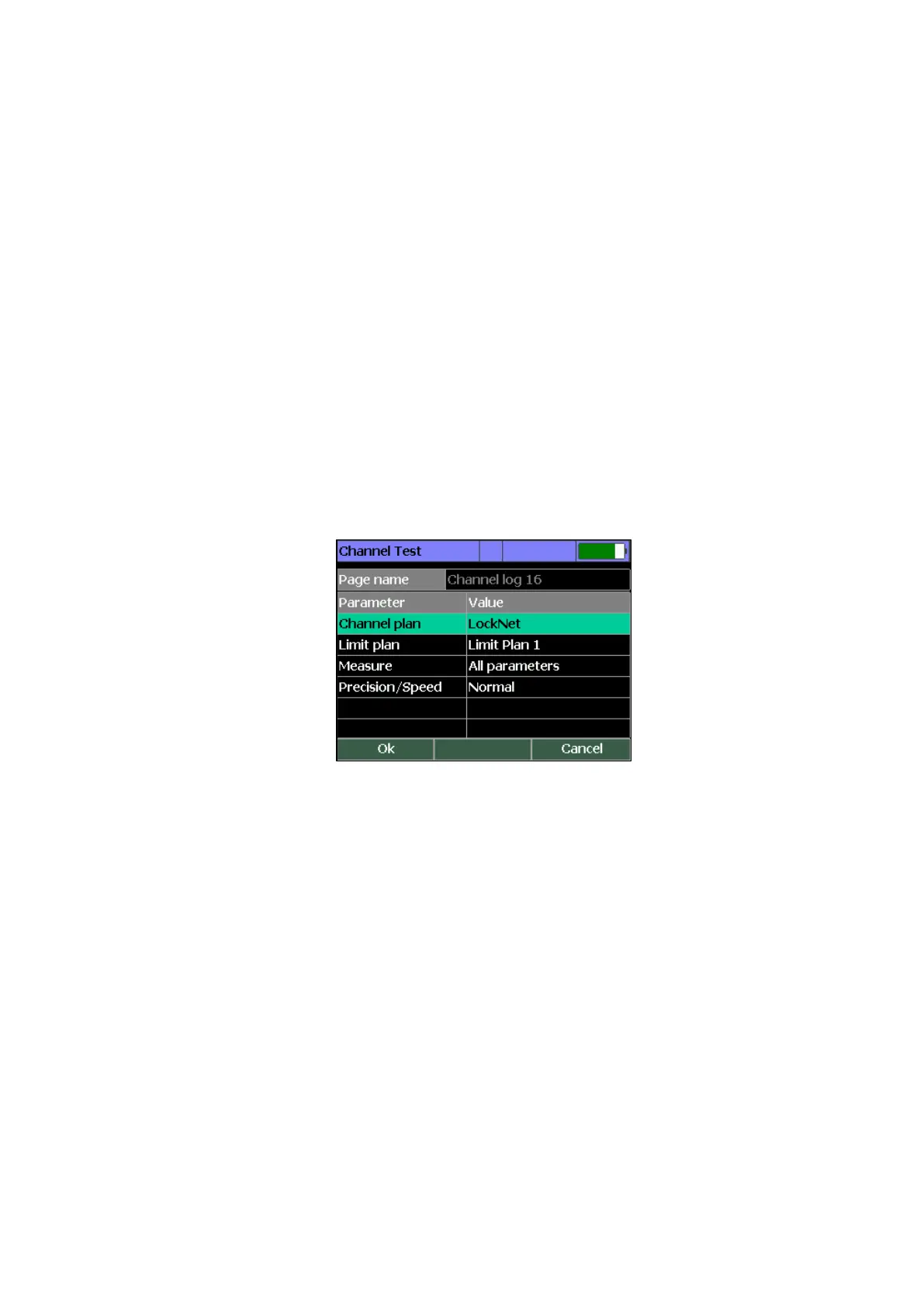

To create a new page, press «F1/Page» and select New. A table for preparing a new page will
appear on the screen (Figure 4.14).
Figure 4.14
The name of the page is assigned automatically. In the table it is necessary to select a channel plan
and a limit plan from those prepared in advance. The page will be associated with the selected
plans. When deleting or editing these plans, the Channel Data Logger page will be deleted from
memory.
Next, you need to select the parameter measurement mode. You can set the following
measurement parameters:
• All parameters Measurement of all parameters;
• Level only Measurement of channel levels only;
• Level+CN/MER. Measurement of channel levels and C/N ratio for analog
channels and MER for digital.
