23

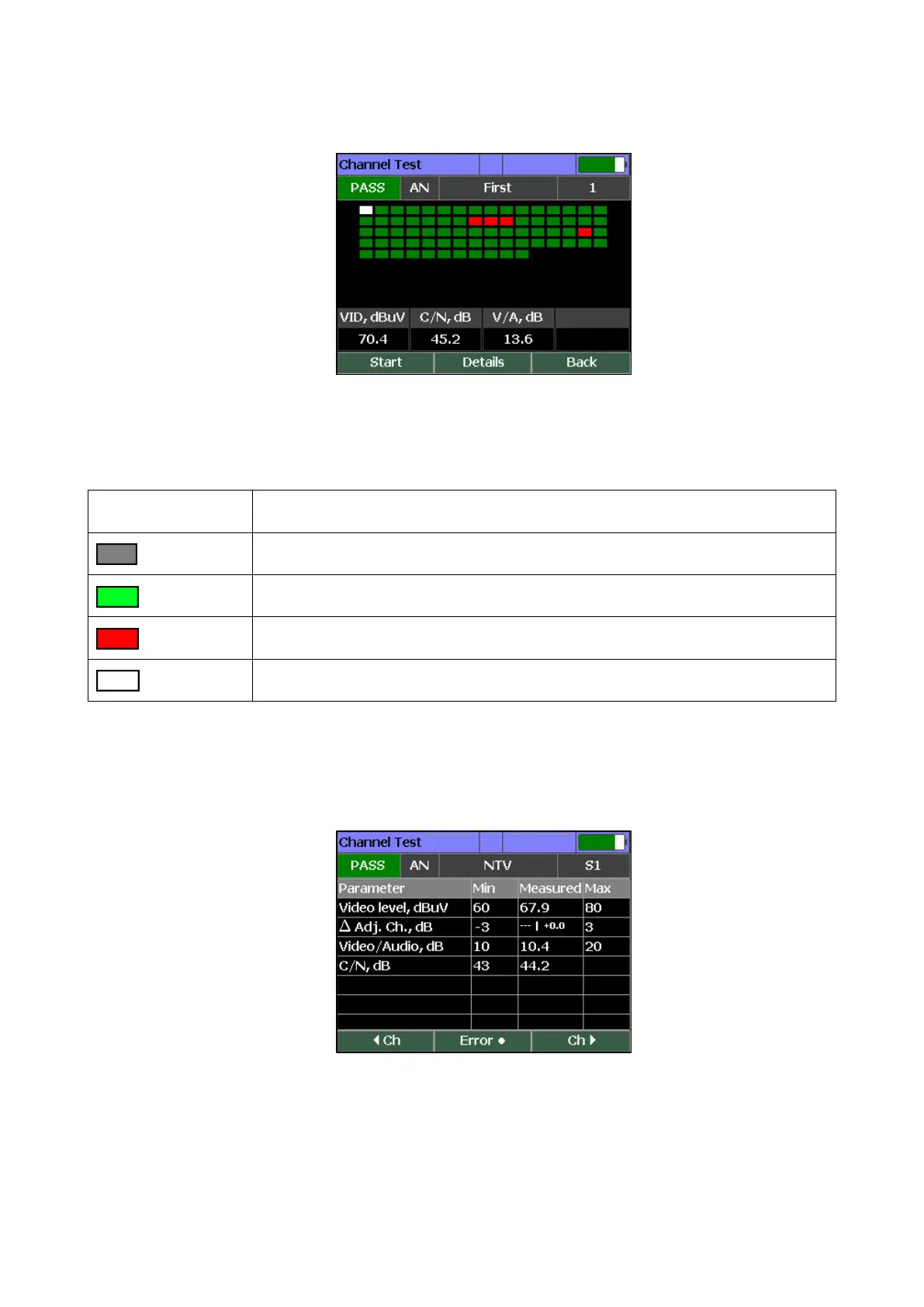

To view the general results of the Data Logger measured data, press «F2 /Map». The screen will
display the list of channels in a graphical format (Figure 4.16).
Figure 4.16
Each rectangle corresponds to a definite channel from the channel plan, which color determines
its status.
Channel parameters are not measured yet
No channel errors are detected
There are errors in the channel parameters
The cursor is located on the channel.
Using the navigation buttons you can select the channel, which number and name are displayed at
the top, and also the measured parameters in the bottom row. For more information, press
«F2/Details» to enter the detailed information mode. In this mode, the measured data with
permissible limits are displayed in a table (Figure 4.17).
Figure 4.17
To go through the channels, use the navigation buttons «◄», «►» or «F1», «F3». To go through
only channels with errors, press «F2/Error».
