FIG-1
FIG-4
FIG-2
FIG-3
FIG-5
D
!
FIG-1

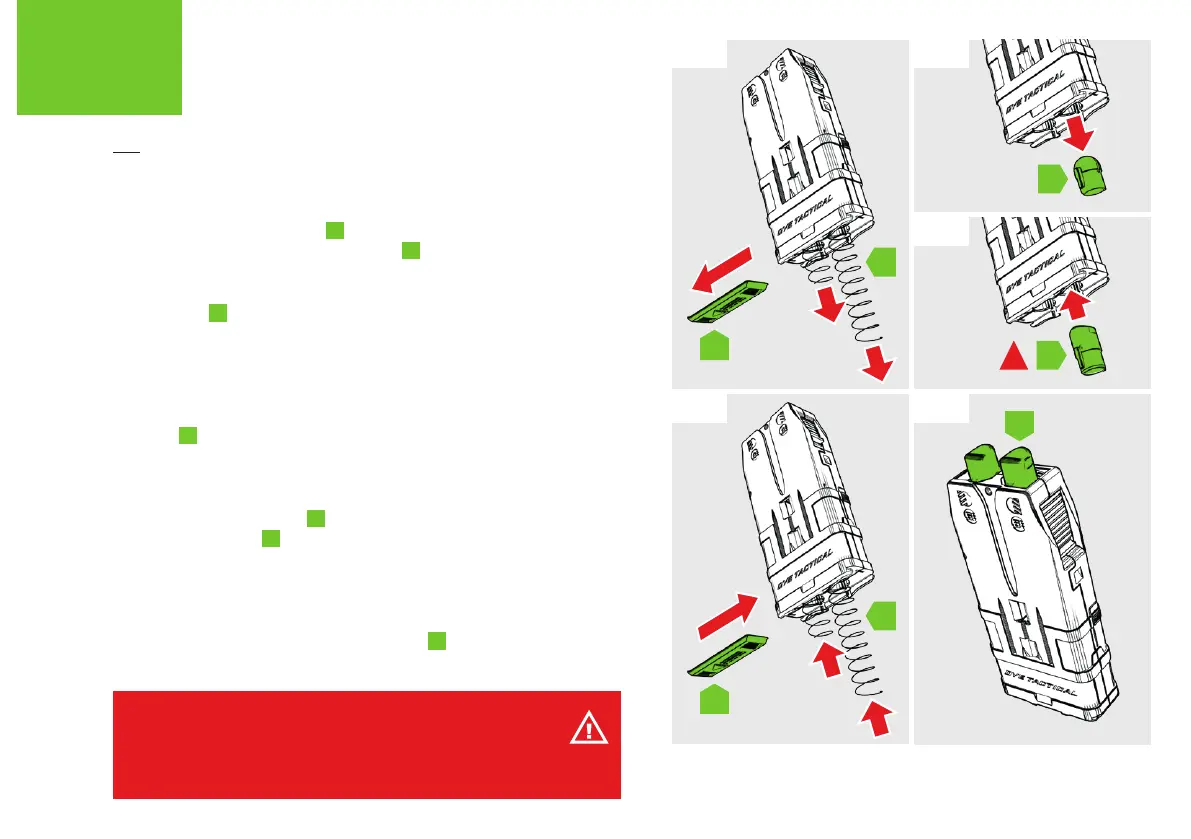

Slide the spring retention plate
A
away from the magazine base in the
direction shown on the plate. The springs
B
will pop out.
FIG-2
The followers
C
will drop to the bottom of the magazine chamber. Pull
the magazine chamber cover down and the follower will drop out.
FIG-3
With the magazine upside down, fully retract each magazine chamber
cover to allow the followers to fall down into the magazine. Insert the new
followers
D
into position with the at face near the top of the follower
facing outwards (away from the middle of the magazine).
FIG-4
Insert the upgraded springs
E
and compress them as you slide the
spring retention plate
A
in (reverse to how it was removed).
Take care not to trap the springs under the spring retention plate.
FIG-5
When the Eclipse magazine follower and spring upgrade kit has been
installed the followers will look as shown here
D
.
B
E
C
D
A
A
17
MG 100
QUICK START
CHANGING MAGAZINE
SPRINGS
WARNING!
Be careful when removing springs when they’re under tension.
Make sure the new followers are installed the correct way up, facing outwards.
