PLANET ECLIPSE MG 100 - Push On Purge System (POPS)

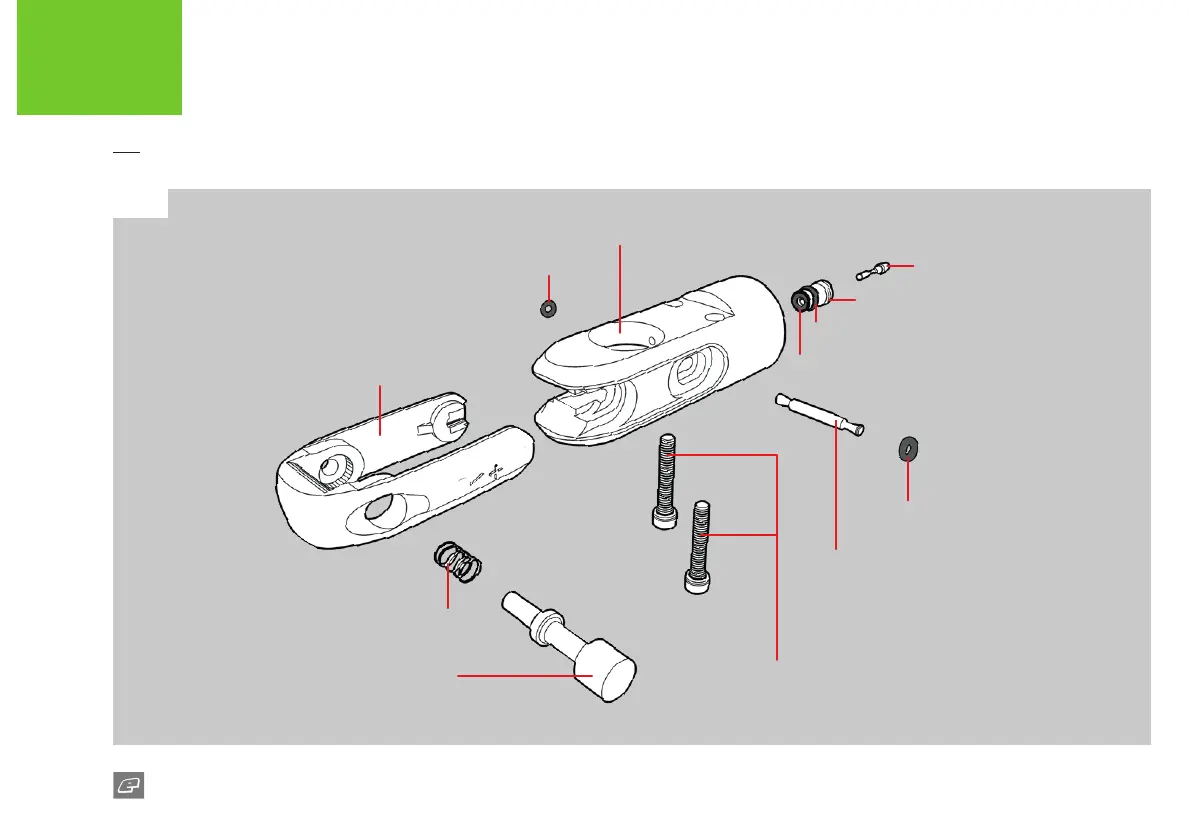

FIG-1
Latch spring
POPS insert
POPS screw 10-32 UNF x 1”
cap head socket
POPS pin
Latch button
Internal o-ring #005 NBR90
External o-ring #007 NBR70
#004 NBR70
Push rod
POPS body
POPS bonnet
#004 NBR70
39
MG 100
TECHNICAL
PUSH ON PURGE SYSTEM (POPS)
