PLANET ECLIPSE MG 100 - Attaching a PAL Loader System

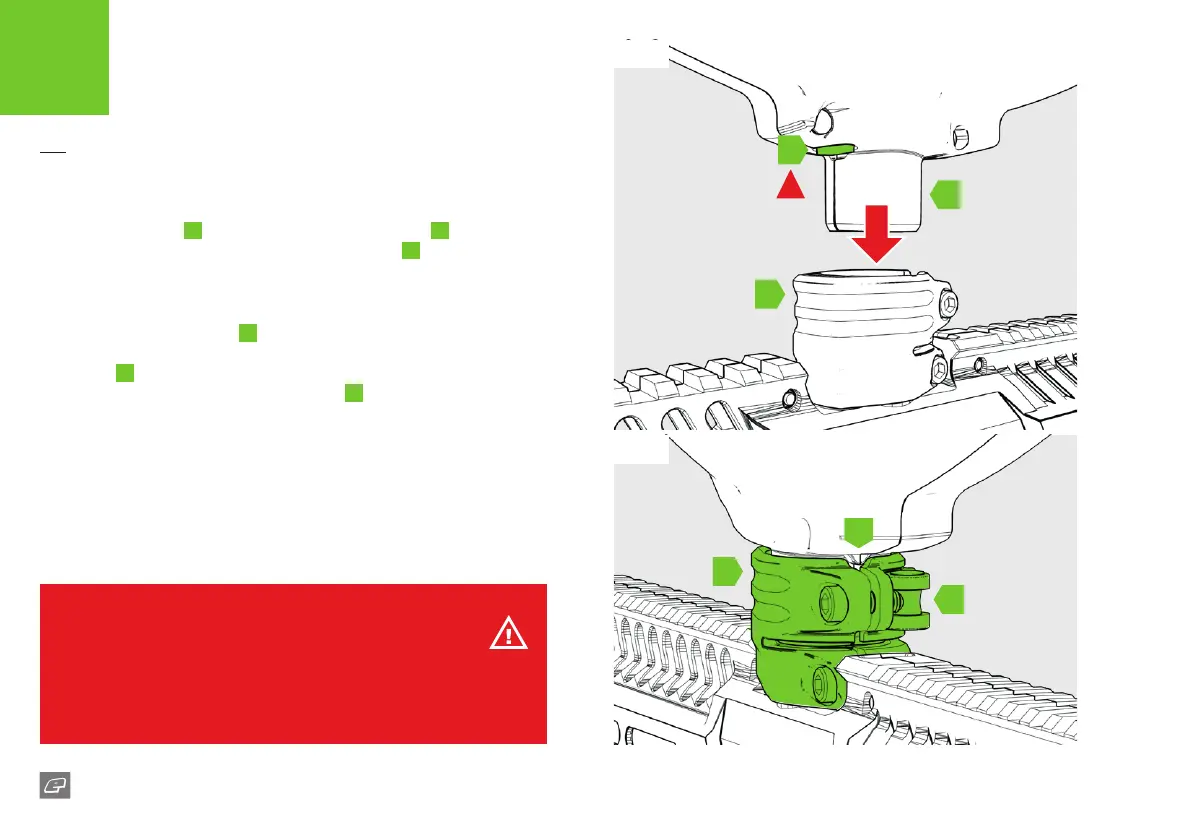

FIG-1
Push the PAL loader
A
into the PAL feedneck assembly
B
as per any
other loader. Ensure the PAL agitation plate actuator
C
aligns with the
PAL plunger in the front of the PAL feedneck assembly to work correctly.
FIG-2
The PAL feedneck assembly
B
has a recess in the rear to assist with
alignment of the PAL loader. When tting the PAL loader make sure
the dimple
D
sits centrally within the recess. If the PAL loader doesn’t
t correctly use the clamping feedneck lever
E
to loosen / tighten
accordingly.
WARNING!
If the agitator plate actuator isn’t aligned with the PAL plunger then the PAL
system may not work correctly.
Always make sure the marker is set to SAFE when installing a loader.
WARNING
FIG-1
FIG-2
A
E
B
B
C
D
!
18
MG 100
QUICK START
ATTACHING A PAL
LOADER SYSTEM
