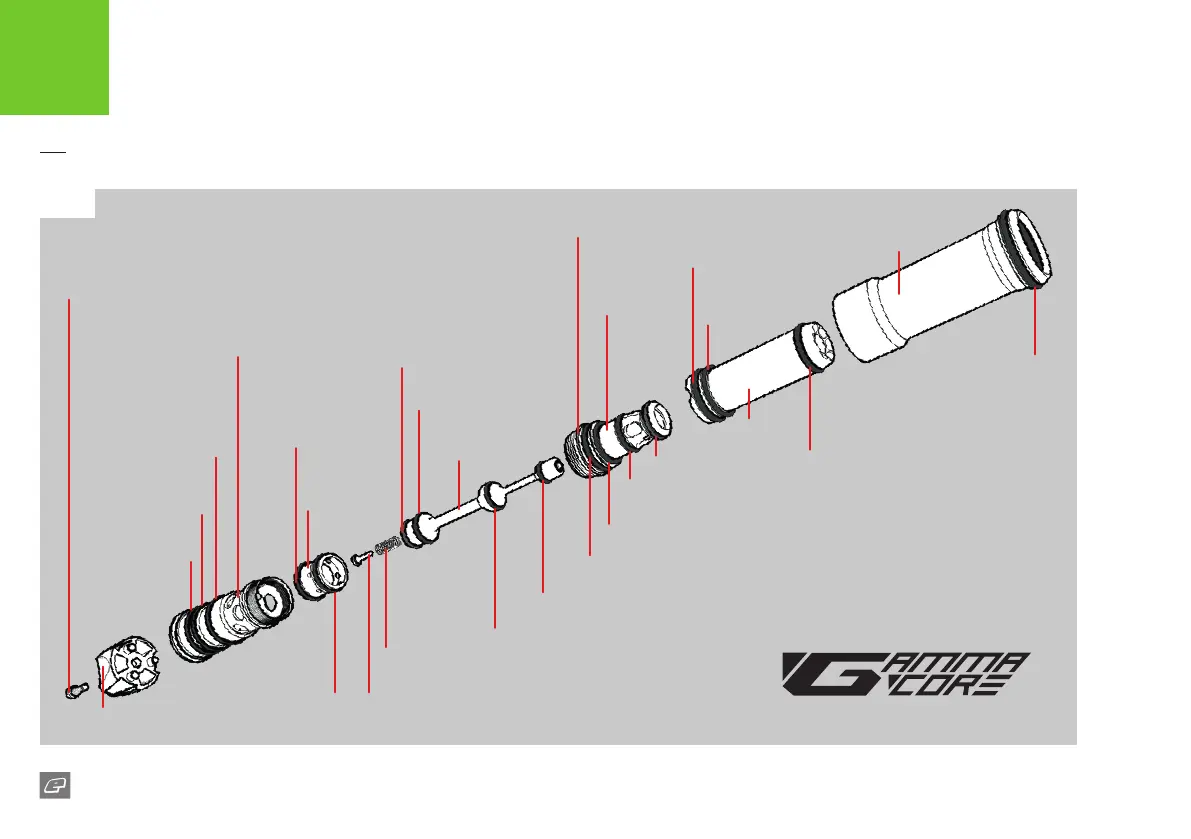

PLANET ECLIPSE MG 100 - Bolt Assembly

FIG-1
38
MG 100
TECHNICAL
BOLT ASSEMBLY (68CAL)
Back cap
10-32 UNF x 0.5”
cap head screw
#012 NBR70
Bolt guide
#014 NBR70
#015 NBR90
14 x 2 NBR70
#016 NBR70
#012 NBR70
#011 NBR70
Switch
#016 NBR70
Valve chamber
#020 NBR70
#020 NBR70
#020 NBR70
Bolt
#013 NBR70
Can
#020 NBR70
Internal:
#017 NBR70
Spring guide
Spool spring
Spool
#008 NBR70
14 x 2 NBR70
#013 NBR70
#013 NBR70
#013 NBR70
