FIG-2
FIG-1
B C
D
B
5/64
A
C
25
MG 100
QUICK START
DETENTS

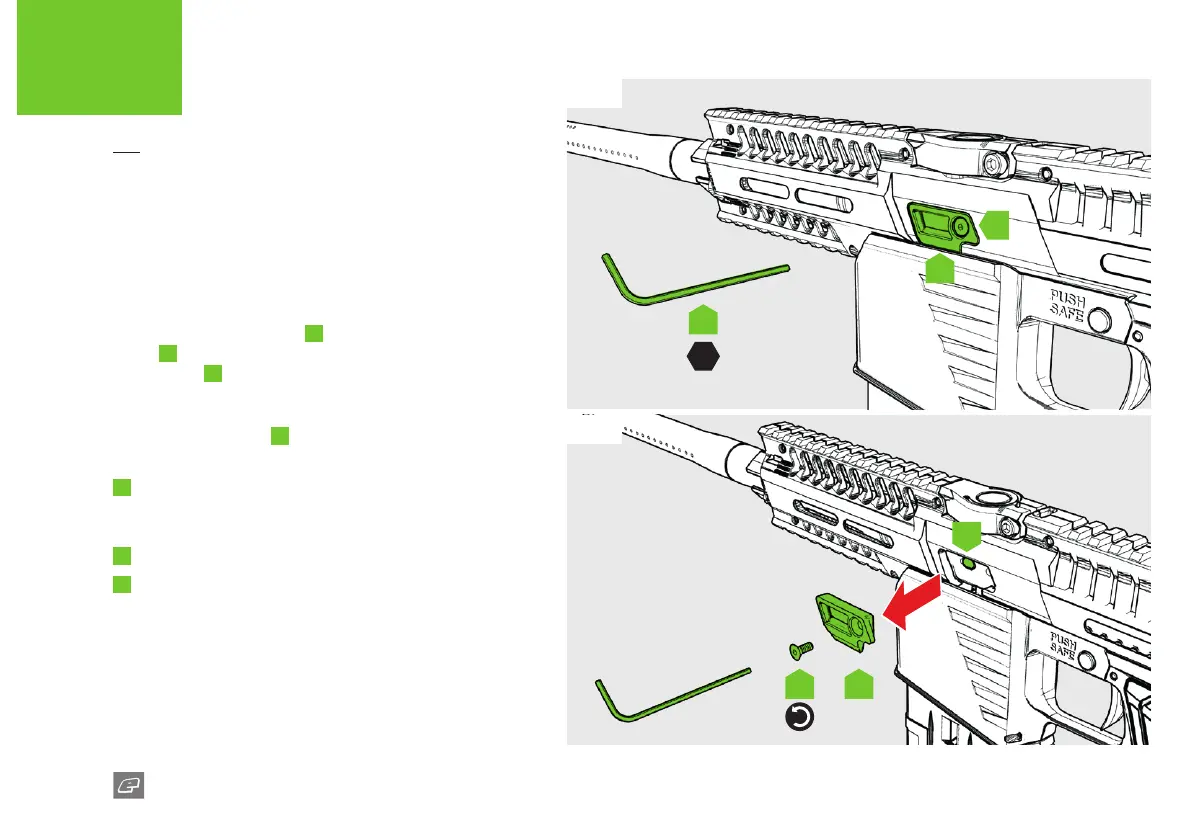

The MG 100 rubber detents (see Fig-2) hold each paintball
in place until ready to re. This prevents paintballs from
rolling down the barrel and maintains feed consistency.
These can be removed for cleaning or replacement.
FIG-1
Use a 5/64” (2mm) hex key
A
to remove the detent cover
screw
B
by rotating counter-clockwise. This will release the
detent cover
C
(see Fig-2).
FIG-2
To remove the detents
D
simply use a small hex key, or
your nger tips, to gently lift the rubber detent from its seat.
B
Detent cover screw
6-32UNC x 5/16
countersunk socket screws
C
Detent cover
D
Rubber detent
The elements within this diagram apply to both sides of the
marker.
