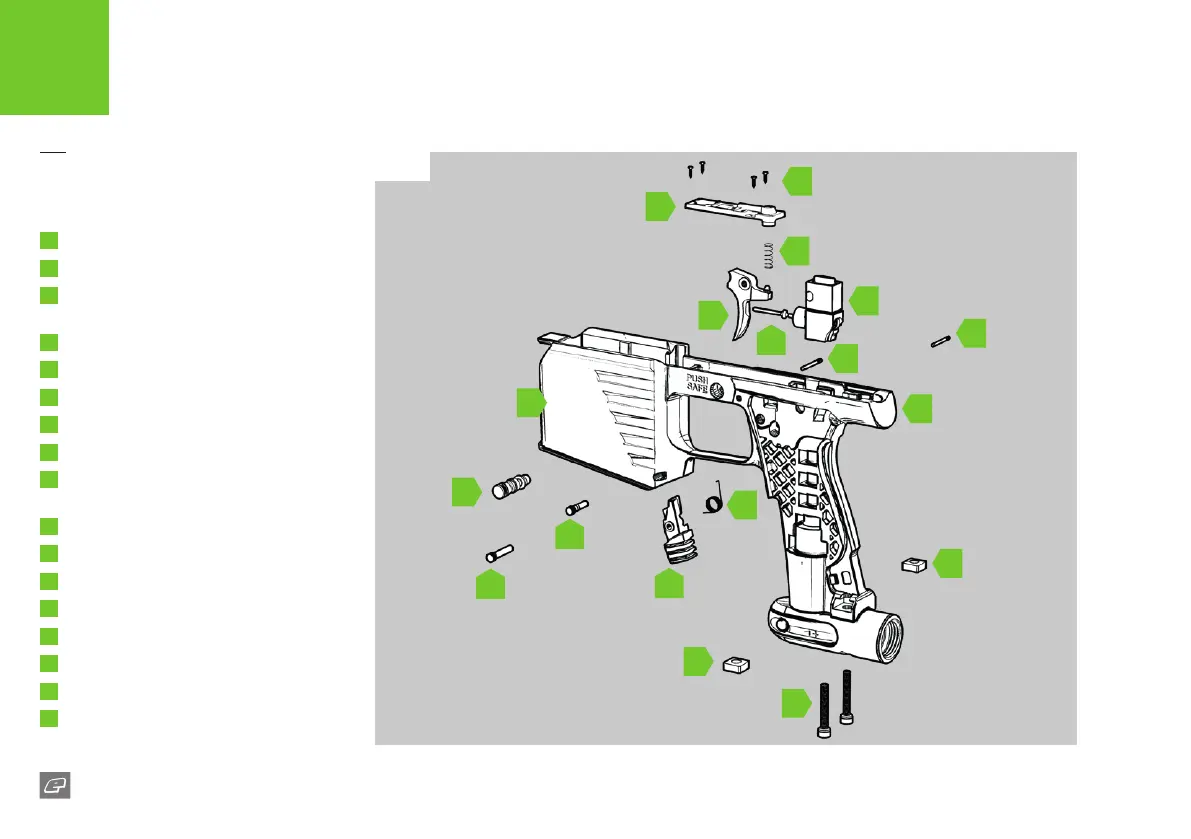

PLANET ECLIPSE MG 100 - Frame Assembly

FIG-1
2
9
8
3
17
15
5
14
16
13
11
7
6
4
1
10
12
8
40
MG 100
TECHNICAL
FRAME ASSEMBLY
FIG-1
1
Magazine well
2
Safety button
3
Three-way body pin
with 3x1 NBR70 o-ring
4
Magazine latch pivot pin
5
Magazine release catch
6
Magazine latch spring
7
MG 100 frame
8
POPS ASA retaining nuts
9
POPS ASA screws
10-32 UNF x 1” cap head socket
10
Trigger
11
Trigger spring
12
Trigger plate
13
Trigger plate retaining screws
14
Three-way assembly
15
Three-way push pin
16
Trigger pin
17
Push pin retainer
with 3x1 NBR70 o-ring
