PLANET ECLIPSE MG 100 - Inline Regulator

FIG-1
36
MG 100
TECHNICAL

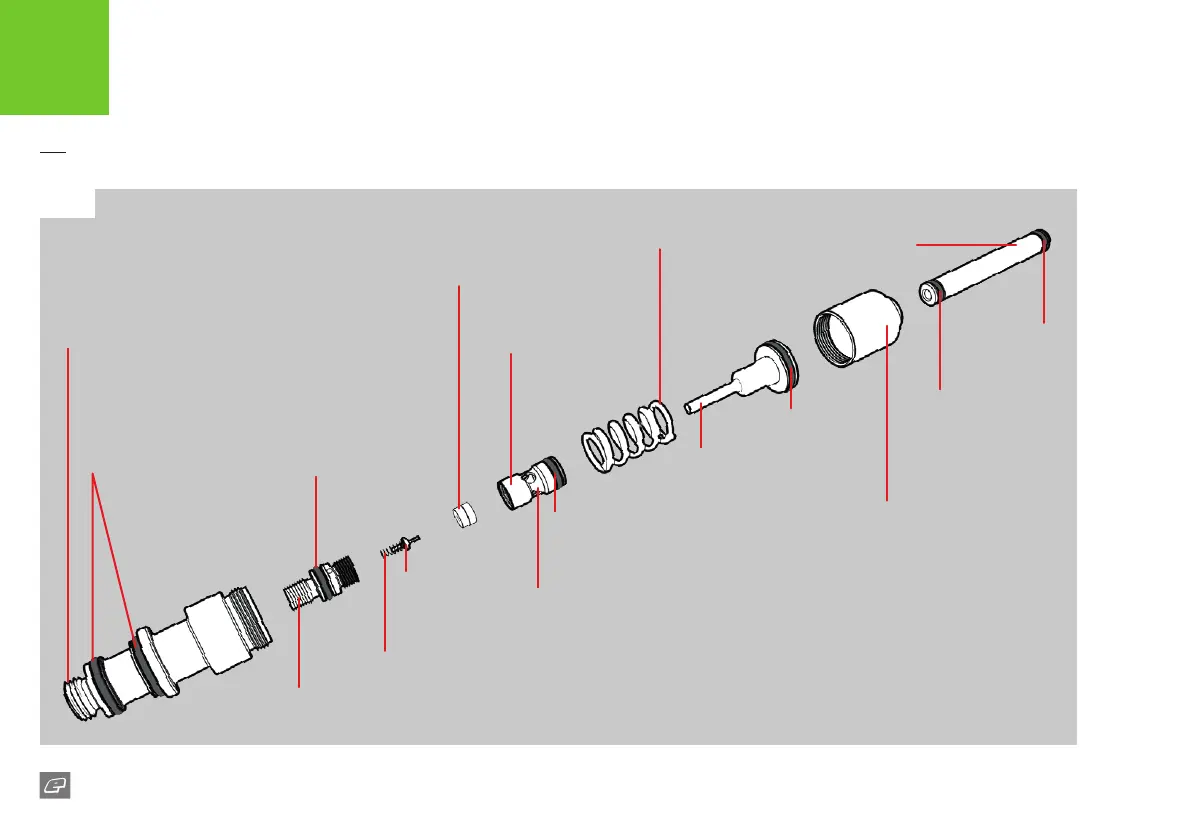

MG 100 INLINE REGULATOR
1
Regular body
Adjuster bottom
Purge poppet
3
Purge poppet spring
Adjuster external
o-ring #011 NBR70
Adjuster internal
o-ring #008 NBR70
Regulator spring
2
Inlet pipe
Regulator seal
Regulator
piston
Piston
o-ring
14 x 2
NBR70
Regulator cap
#010 NBR70
#010 NBR70
Adjuster top
Adjuster o-ring
#011 NBR70
1 Reset the MG 100 regulator to factory after re-assembly.
2 Only use the spring provided with the MG 100 regulator.
3 Failure to re-install the purge poppet assembly correctly
could seriously damage the MG 100.
Regulator body o-rings
#015 NBR70
