#Notice:
Please refers to APPENDIX-A for detailed wiring information of the Managed Media Converter.
To prevent from optic acceptor malfunction, check the both wires / transmitter before power on the
converter.
GT-905A Installation
GT-905A is with high reliability and flexibility to extend the distance from 220m to 120Km. It depends on the Gigabit mini
GBIC modules. The SFP transceivers are hot-plug and hot-swappable. You can plug-in and out the transceiver to/from
any SFP port without having to power down the converter.

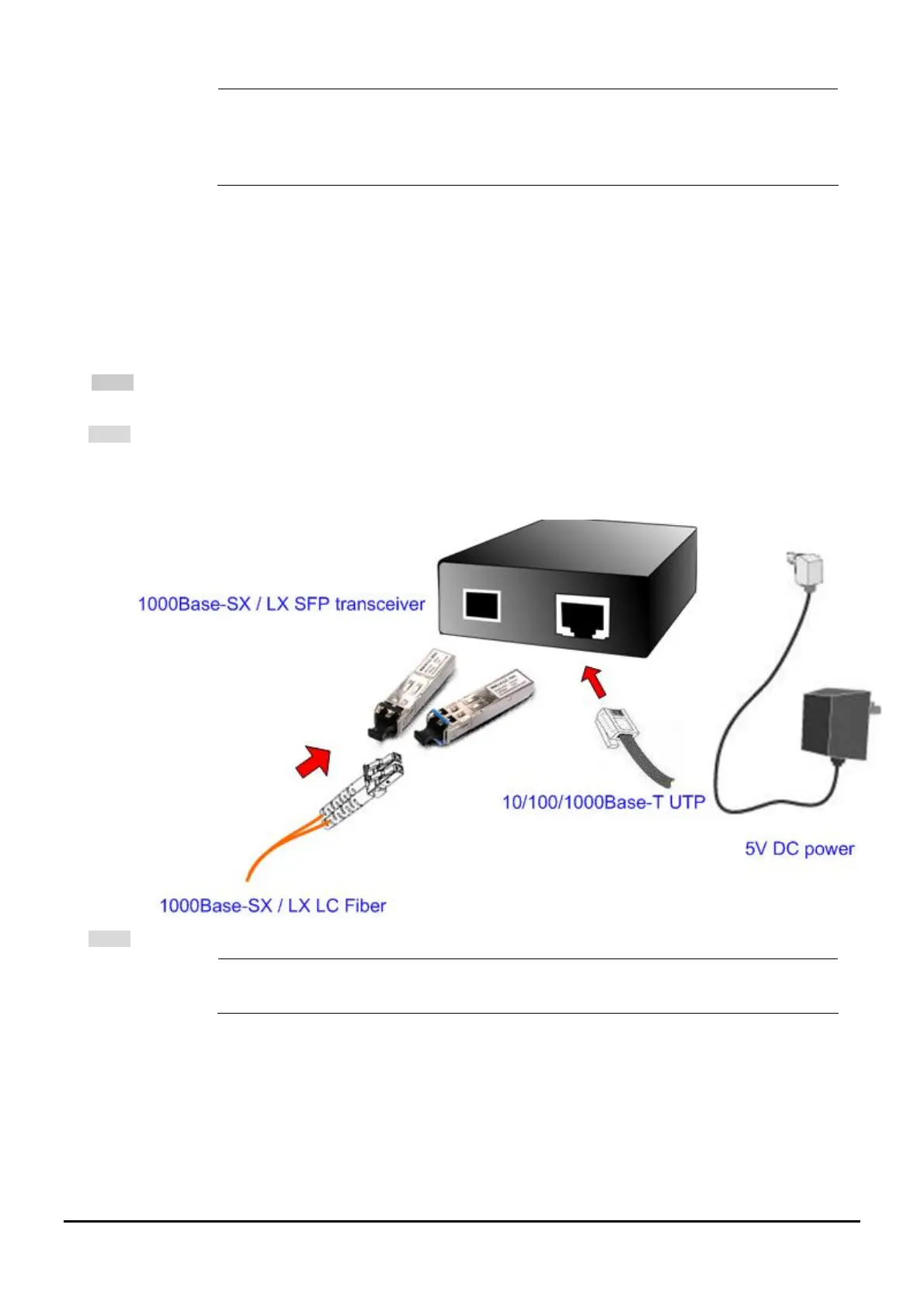

To install GT-905A with 1000Base-SX / LX SFP, simply complete the following steps:
Step 1: Precede with the steps 4 and steps 5 of session 2.2.1 Stand-alone Installation to connect the network cabling
and supply power to your converter.
Step 2: Slot in the 1000Base-SX / LX SFP. Make sure both side of the SFP transceiver are with the same media type, for
example: 1000Base-SX / 220m & 550m to 1000Base-SX / 220m & 550m, 1000Base-LX / 10km to 1000Base-LX /
10km
Step 3: Connect the fiber cable. Attach the duplex LC connector on the network cable into the SFP transceiver.
#Notice:
It recommends using PLANET MGB series 1000Base-SX / LX / LX WDM SFP on the GT-905A. If
you insert a SFP transceiver that is not supported, the GT-905A will not recognize it.
