2.2.2 Chassis Installation and Rack Mounting
To install the Managed Media Converter in a 10-inch or 19-inch with standard rack, follow the instructions described
below.
Step 1: Place your Managed Media Converter on a hard flat surface, with the front panel positioned towards your front
side.
Step 2: Carefully slide in the module until it is fully and firmly fitted into the slot of the chassis.

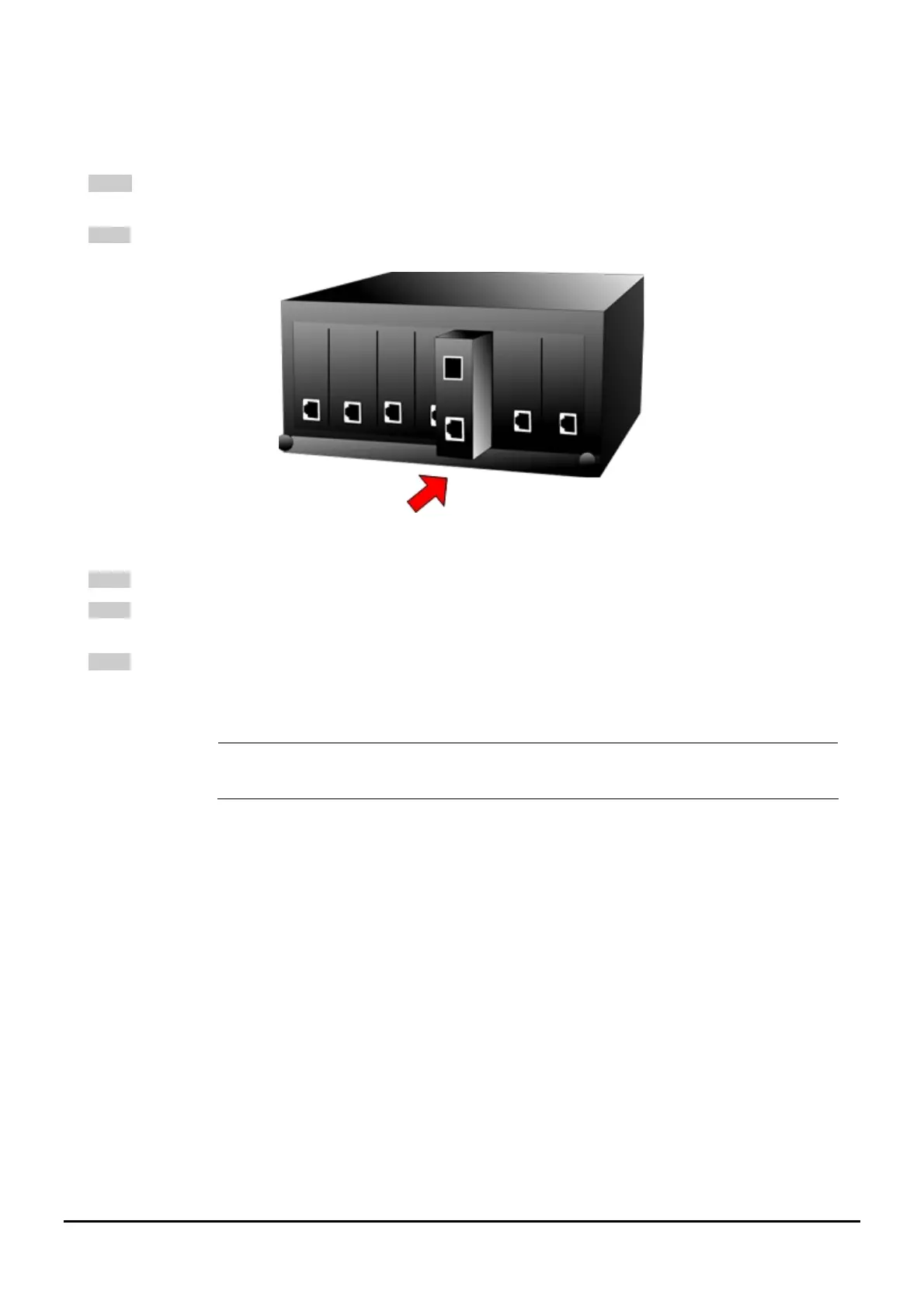

Figure 2-5: Insert a Managed Media Converter into an available slot
Step 3: Attach a rack-mount bracket to each side of the Chassis with supplied screws attached to the package.
Step 4: After the brackets are attached to the chassis, use suitable screws to securely attach the brackets to the rack, as
shown in Figure 2-6.
Step 5: Precede with the steps 4 and steps 5 of session 2.2.1 Stand-alone Installation to connect the network cabling
and supply power to your Chassis.
Caution:
You must use the screws supplied with the mounting brackets. Damage caused to the parts by using
incorrect screws would invalidate your warranty.
-10-
