4.5.2 VLAN Per Port Setting
This function provides IEEE 802.1Q VLAN per port setting for TP and Fiber port of Managed Media Converter. Press the
“Apply” button to save the current configuration of Managed Media Converter. The screen in Figure 4-29 appears and
Table 4-10 describes the VLAN Per Port Setting object of Managed Media Converter.

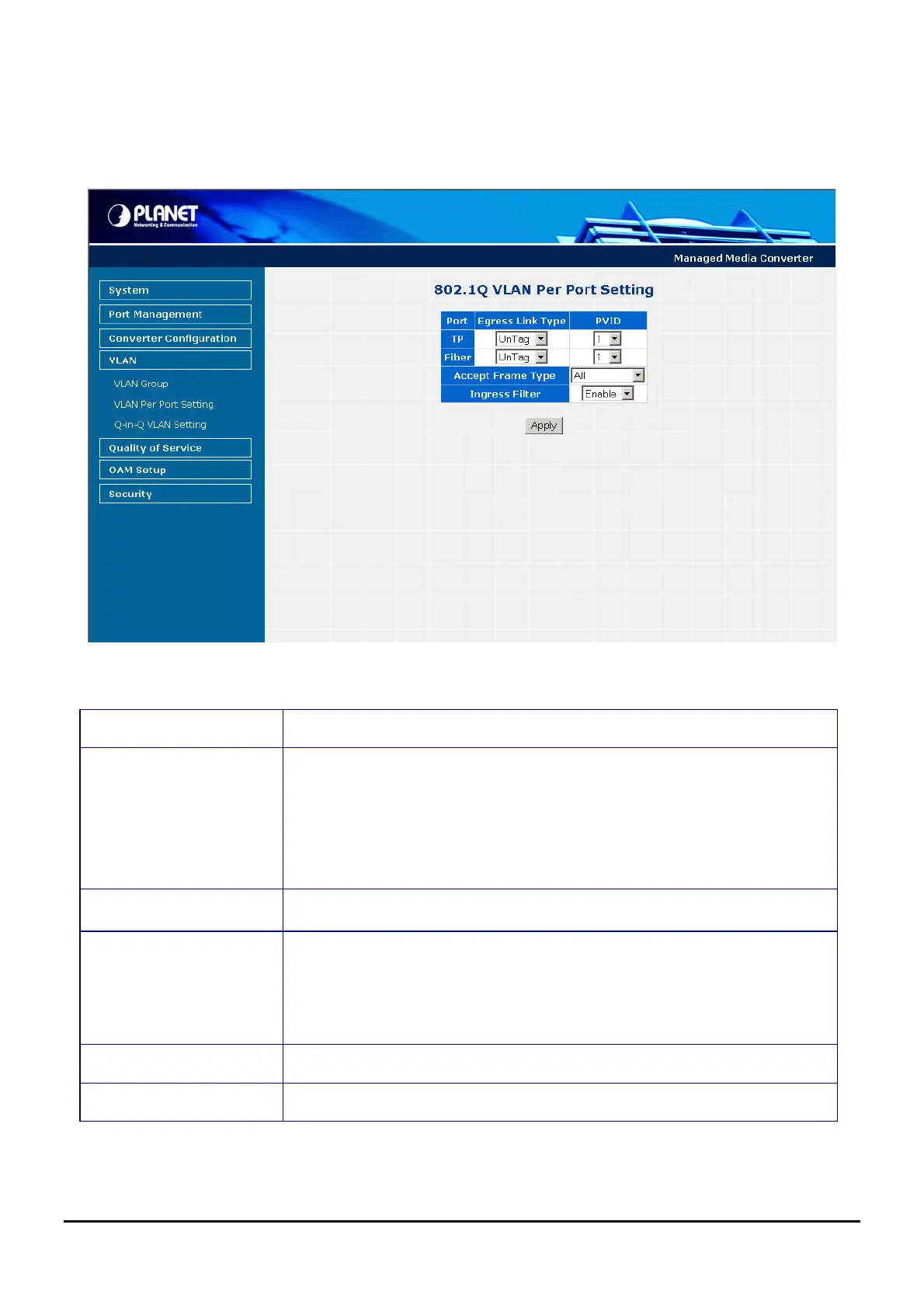

Figure 4-29 VLAN Per Port Setting Web Page screen
The VLAN Per Port Setting Web page includes the following configurable data:
Port
Indicate the TP port and Fiber port.
Egress Link Type
Provide Egress Link Type options for TP port and Fiber port, the available options are:
UnTag
Tag
ByPass
Default mode is UnTag.
PVID
Provide PVID assign for TP port and Fiber port, the available options are 1 to 4094.
Default mode is 1 to 16.
Accept Frame Type
Provide define the Accept Frame Type and the available options are
All
Tagged Only
Default mode is All.
Ingress Filter Provide disable or enable the Ingress Filter function. Default mode is Enable.
Apply button
Press this button for save current configuration of Managed Media Converter.
Table 4-10 Descriptions of the VLAN Per Port Setting Web Page Screen Objects
-39-
