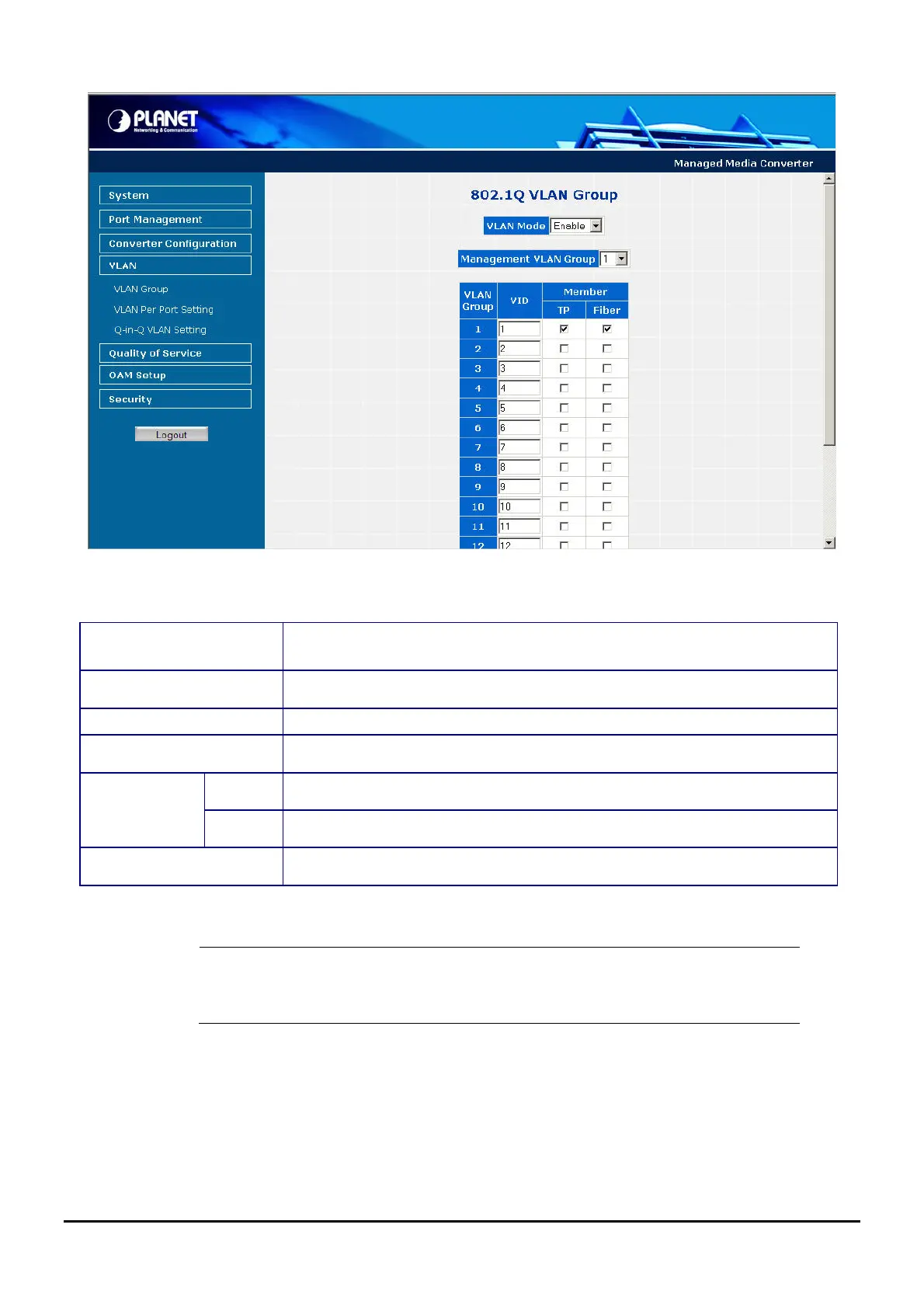

Figure 4-28 VLAN Group Web Page screen
The VLAN Group Web page includes the following configurable data:
VLAN Mode
Provide Disable or enable the IEEE 802.1Q VLAN operation mode. Default mode is
Disable.
Management VLAN Group
Provide define the Management VLAN group. Default mode is VLAN1.
VLAN Group
Indicate the VLAN Group from 1 to 16.
VID
Provide define the VLAN Group ID and the available options are 1 to 4094.
TP
Provide assign TP port into VLAN Groups.
Member
Fiber
Provide assign Fiber port into VLAN Groups.
Apply button
Press this button for save current configuration of Managed Media Converter.
Table 4-9 Descriptions of the VLAN Group Web Page Screen Objects
#Notice:
When change the Management VLAN Group setting, please assure the TP or fiber port that
connect to administrator PC is in the same VLAN Group, otherwise, for further managed is
impossible. The only solution is press the reset button 10 seconds for system reset to default
mode.
-38-
