4.3.3 Por
t Statisti
cs
This function allows display
ing TP / Fiber port detail Statistics, press the
“Clear”
button to clear current counte
r
information
. Press
the
“Refr
esh”
button to renew the screen
, the screen in
Figure 4-24 & 4-25
appears.

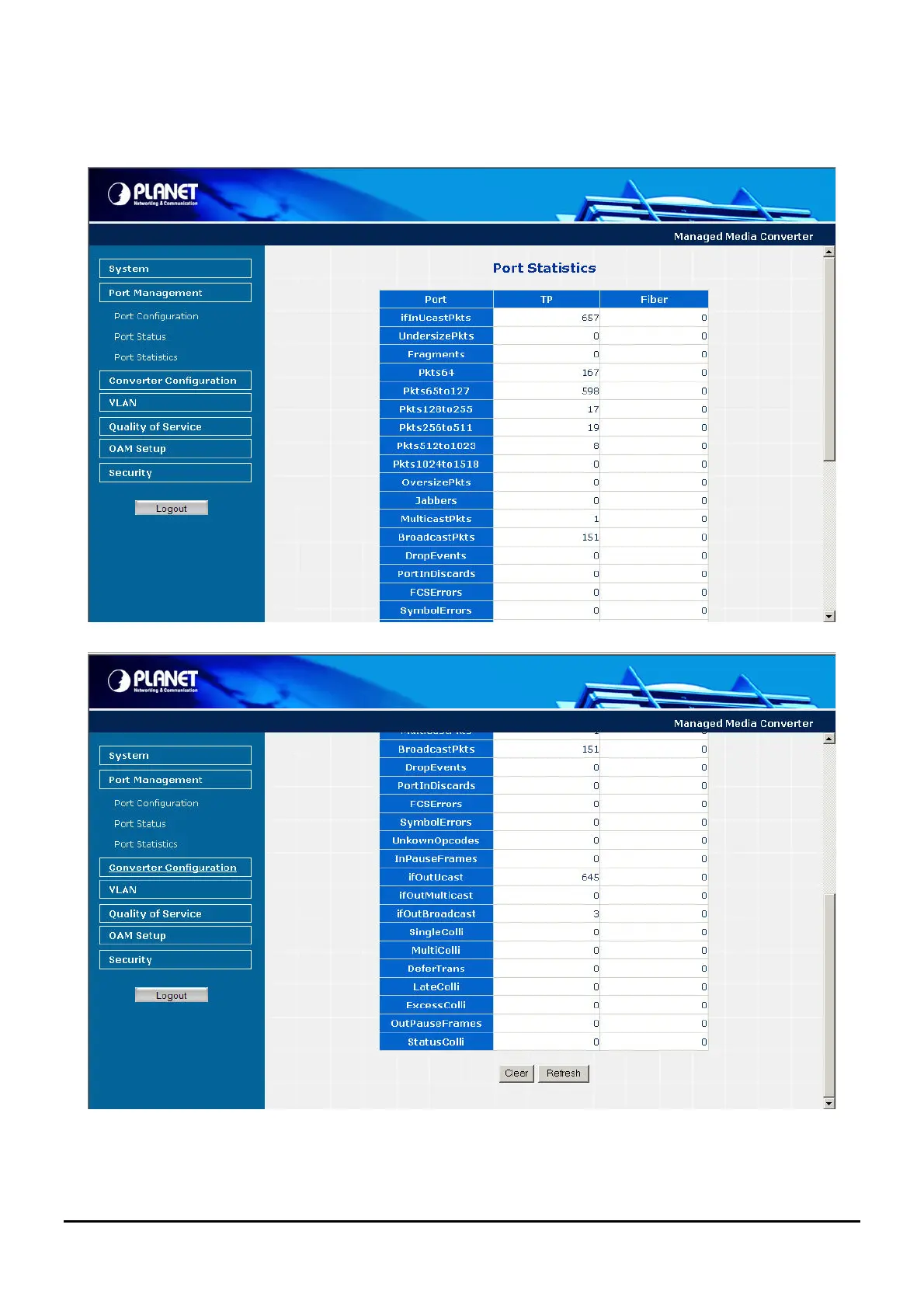

Figure 4-24
Port Stati
stics Web Page screen
Figure 4-25
Port Stati
stics Web Page screen
-33-
