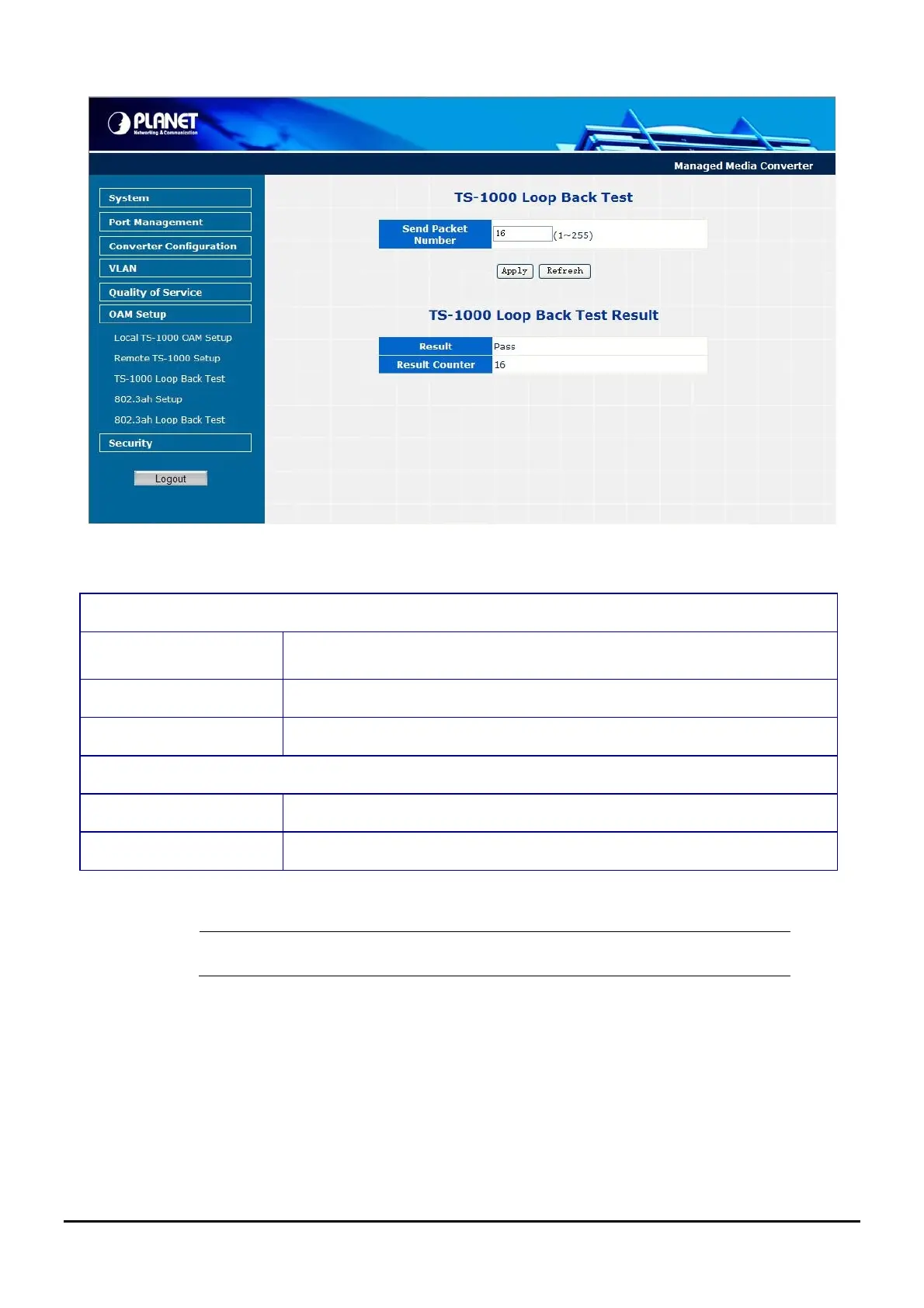

Figure 4-38 Remote TS-1000 Loop Back Test Web Page screen
The TS-1000 Loop Back Test Web page includes the following configurable data:
TS-1000 Loop Back Test
Send Packet Number
Allow input the number for packet send and the available options is 1 to 255. Default is
16.
Apply button
Press this button for save current configuration of Managed Media Converter.
Refresh button
Press “Refresh” button to refresh current status.
TS-1000 Loop Back Test Result
Result
Display the TS-1000 Loop Back Test Result. Fail or Pass.
Result counter
Display the value of Counter Result.
Table 4-14 Descriptions of the TS-1000 Loop Back Test Web Page Screen Objects
#Notice:
Please use the PLANET GT-80x and GT-90x as the Remote device.
