Planet VC-231G User Manual

18
VC-234G/CO

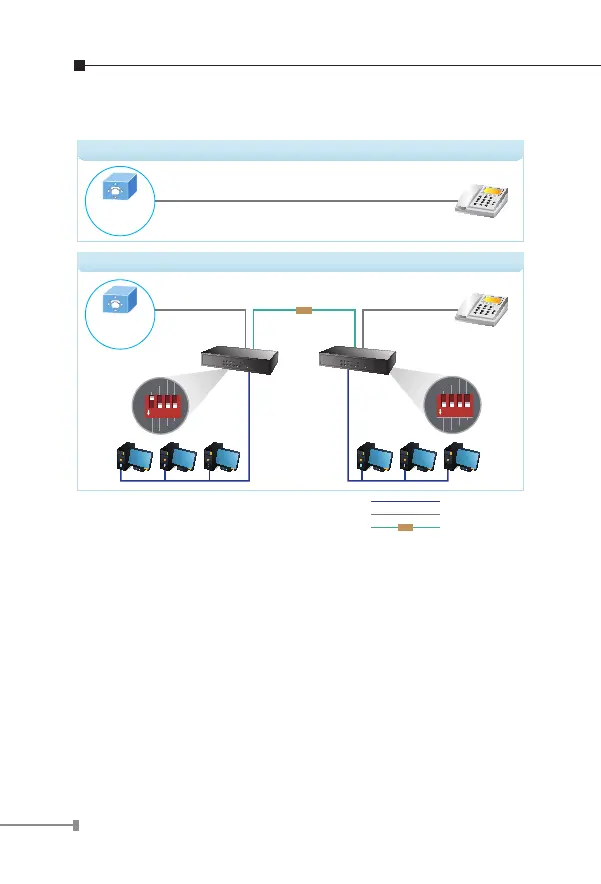

LAN to LAN Connection
Up to 1.4km
VDSL2
Telephone wire
Phone
Main office/PBX,
Telco CO,
Wire Closet
Telephone wire
Ethernet Telephone Network
Phone
Ethernet over VDSL2 and Telephone Network
VC-234G/CPE
VDSL2
VDSL2
1000BASE-T UTP
Telephone wire
Main office/PBX,
Telco CO,
Wire Closet
CO
G.INP
Asym.
Inter
Sym.
8dB
ON
OFF
1 2 3 4
ON
CO
G.INP
Asym.
Inter
Sym.
8dB
ON
OFF
1 2 3 4
ON
Refer to the following procedures to set up the VDSL2 Bridge
LAN to LAN connection.
1. [LAN1] Set the VDSL2 Bridge at LAN 1 to be CO mode from
the DIP switch.
2. [LAN2] Set the VDSL2 Bridge at LAN 2 to be CPE mode from
the DIP switch.
3. Power on the VDSL2 Bridge CO and CPE at both sides by
connecting its power source.

Planet VC-231G Specifications

General

Maximum data transfer rate	1000 Mbit/s
Auto MDI/MDI-X	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Material	Metal
Product type	Network bridge
Product color	Black
Power requirements	DC 5V, 2A
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Harmonized System (HS) code	85176990

Weight and Dimensions

Weight	184 g
Dimensions (WxDxH)	97 x 70 x 26 mm
