Planet VC-231G User Manual

17
Phone
RJ11 Phone Jack
IP TV Wireless LaptopPC
VC-234G
Telephone wire
1000BASE-T UTP
LAN
4 3 2 1
10/100/1000T
VDSLPhone
5V DC
CO
G.INP
Asym.
12dB
CPE
Inter
Sym.
8dB
ON
OFF
1 2 3 4
ON
IP Camera

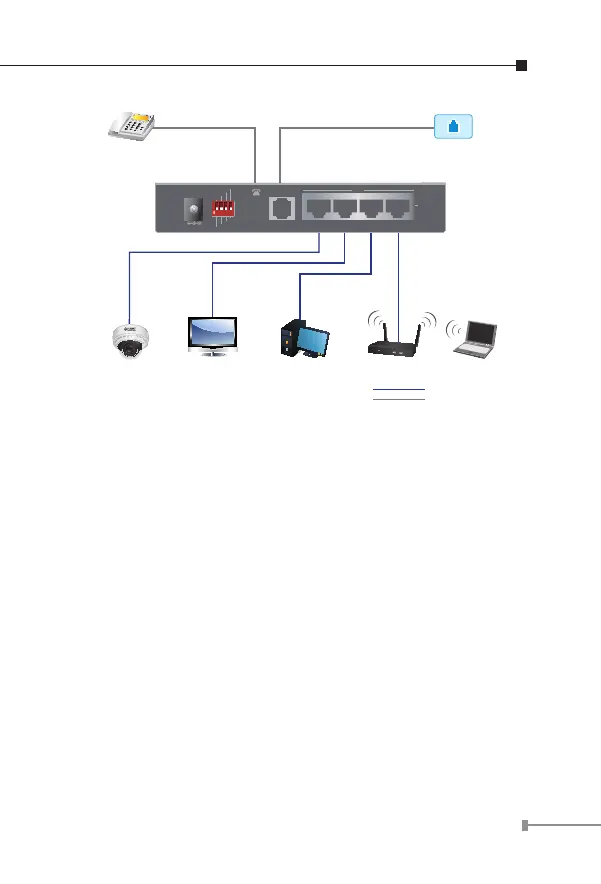

4.1 Point-to-Point Application -- LAN to LAN
Connection
Two sets of the VDSL2 Bridge could be used to link two local
Area networks that are located in a dierent place. Through
the normal telephone line, it could be set up a 150/150Mbps
(G.INP, Sym, 8dB) symmetric backbone, but one VDSL2 Bridge
must be Master (CO mode) and the other one is Slave (CPE
mode).

Planet VC-231G Specifications

General

Maximum data transfer rate	1000 Mbit/s
Auto MDI/MDI-X	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Material	Metal
Product type	Network bridge
Product color	Black
Power requirements	DC 5V, 2A
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Harmonized System (HS) code	85176990

Weight and Dimensions

Weight	184 g
Dimensions (WxDxH)	97 x 70 x 26 mm
