3.2 Rear Panel and Mode DIP Switch

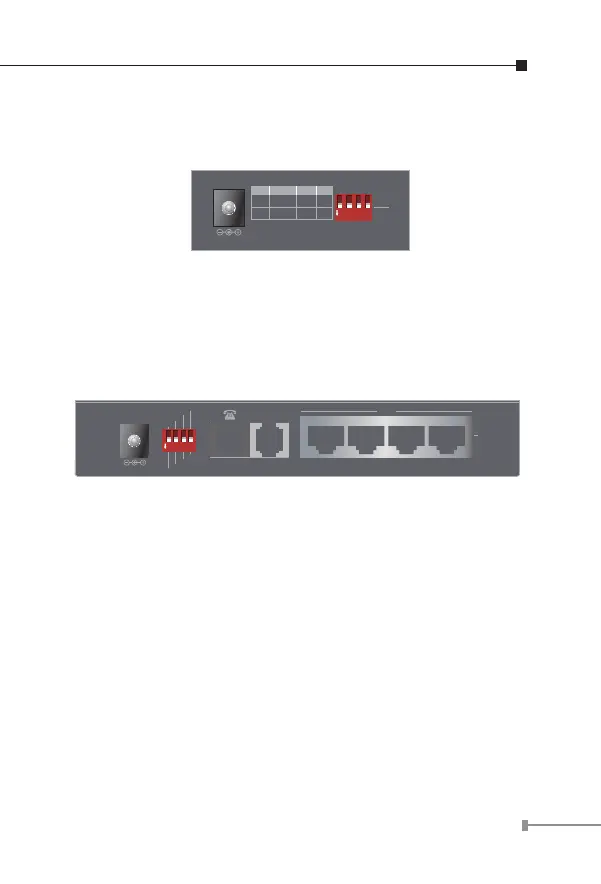

 VC-231G and VC-231GF Rear Panel
5V DC
CO
CPE
G.INP
Interleave 8dB
12dB
OFF
ON
Mode Tran.
Sym.
Asym.
Band SNR
1 2 3 4
ON
Figure 3-2-1: VC-231G and VC-231GF Rear Panel
¾ DIP switch
¾ DC jack (DC input) for power adapter
 VC-234G Rear Panel
LAN
4 3 2 1
10/100/1000T
VDSLPhone
5V DC
CO
G.INP
Asym.
12dB
CPE
Inter
Sym.
8dB
ON
OFF
1 2 3 4
ON
Figure 3-2-2: VC-234G Rear Panel
¾ Four 10/100/1000BASE-T RJ45 connectors for Ethernet
¾ One RJ11 connector for VDSL2; connect to IP DSLAM or
another VDSL2 Bridge
¾ One RJ11 connector for telephone or PBX POTS
¾ DIP switch
¾ DC jack (DC input) for power adapter
 DC Power Jack
The VC-231G Series requires 5V DC, 2A power input, which
conforms to the bundled AC adapter. Should you have the
issue of power connection, please contact your local sales
representative.

Planet VC-231G Specifications

General

Maximum data transfer rate	1000 Mbit/s
Auto MDI/MDI-X	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Material	Metal
Product type	Network bridge
Product color	Black
Power requirements	DC 5V, 2A
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Harmonized System (HS) code	85176990

Weight and Dimensions

Weight	184 g
Dimensions (WxDxH)	97 x 70 x 26 mm
