Planet VC-231G User Manual

8

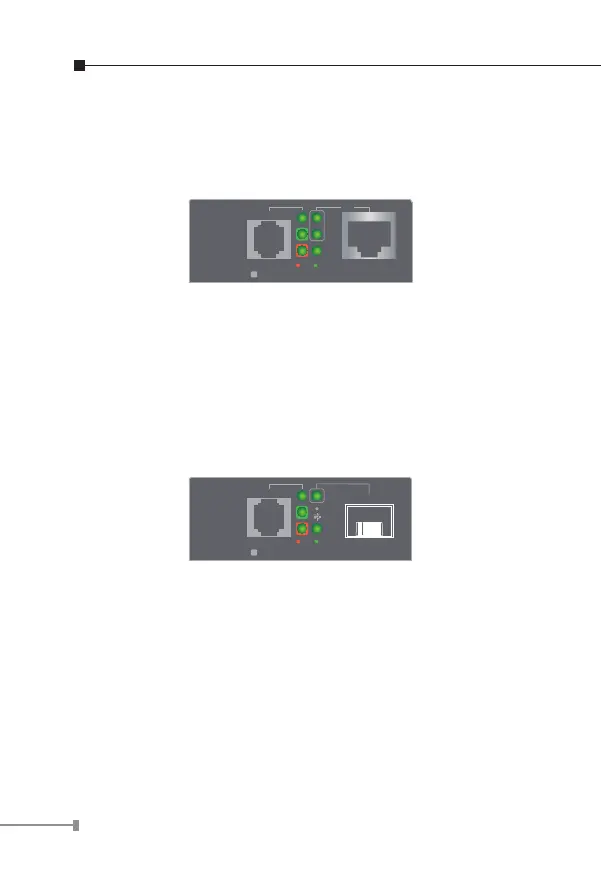

3. Hardware Introduction
3.1 Front Panel and LED Indicators
 VC-231G Front Panel
Ethernet over VDSL 2 Converter
VC-231G
PWR
VDSL
TP
1000
100
CPE
CO
10/100/1000
Figure 3-1-1: VC-231G Front Panel
¾ 10/100/1000BASE-T RJ45 connector for Ethernet
¾ RJ11 connector for VDSL2; connect to IP DSLAM or another
VDSL2 Bridge
¾ LEDs for power, Ethernet and VDSL
 VC-231GF Front Panel
Ethernet over VDSL 2 Converter
VC-231GF
PWR
VDSL
SFP
1000
CPE
CO
1000X
LNK
ACT
Figure 3-1-2: VC-231GF Front Panel
¾ 1000BASE-X SFP slot for Ethernet
¾ RJ11 connector for VDSL2; connect to IP DSLAM or another
VDSL2 Bridge
¾ LEDs for power, Ethernet and VDSL

Planet VC-231G Specifications

General

Maximum data transfer rate	1000 Mbit/s
Auto MDI/MDI-X	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Material	Metal
Product type	Network bridge
Product color	Black
Power requirements	DC 5V, 2A
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Harmonized System (HS) code	85176990

Weight and Dimensions

Weight	184 g
Dimensions (WxDxH)	97 x 70 x 26 mm
