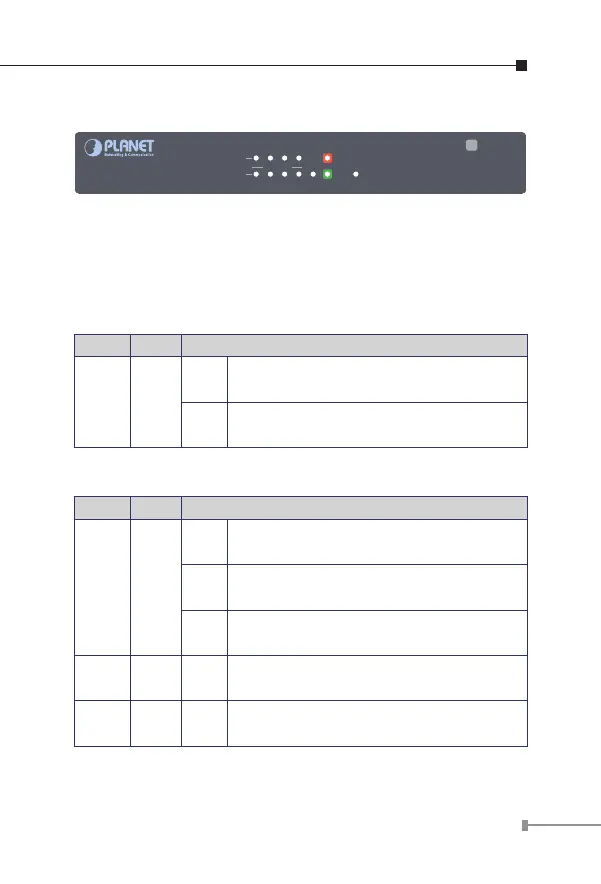

 VC-234G Front Panel
Power
VC-234G
1
1000
2 3 4 VDSL CPE
CO
LNK/ACT
Ethernet over VDSL Bridge
2
10/100
Figure 3-1-3: VC-234G Front Panel
¾ LEDs for power, Ethernet and VDSL
 LED Indicators
 System
LED Color Function
PWR Green
Lit
Indicates that the VDSL2 Bridge has
power.
O
Indicates that the VDSL2 Bridge has no
power.
 VDSL
LED Color Function
VDSL Green
Lit
Indicates that the VDSL link is
established.
Fast
Blink
Indicates that the VDSL link is at training
status (about 10 seconds).
Slow
Blink
Indicates that the VDSL link is at idle
status.
CO Green Lit
Indicates the VDSL2 Bridge is running in
CO mode.
CPE Green Lit
Indicates the VDSL2 Bridge is running in
CPE mode.

Planet VC-231G Specifications

General

Maximum data transfer rate	1000 Mbit/s
Auto MDI/MDI-X	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Material	Metal
Product type	Network bridge
Product color	Black
Power requirements	DC 5V, 2A
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Harmonized System (HS) code	85176990

Weight and Dimensions

Weight	184 g
Dimensions (WxDxH)	97 x 70 x 26 mm
