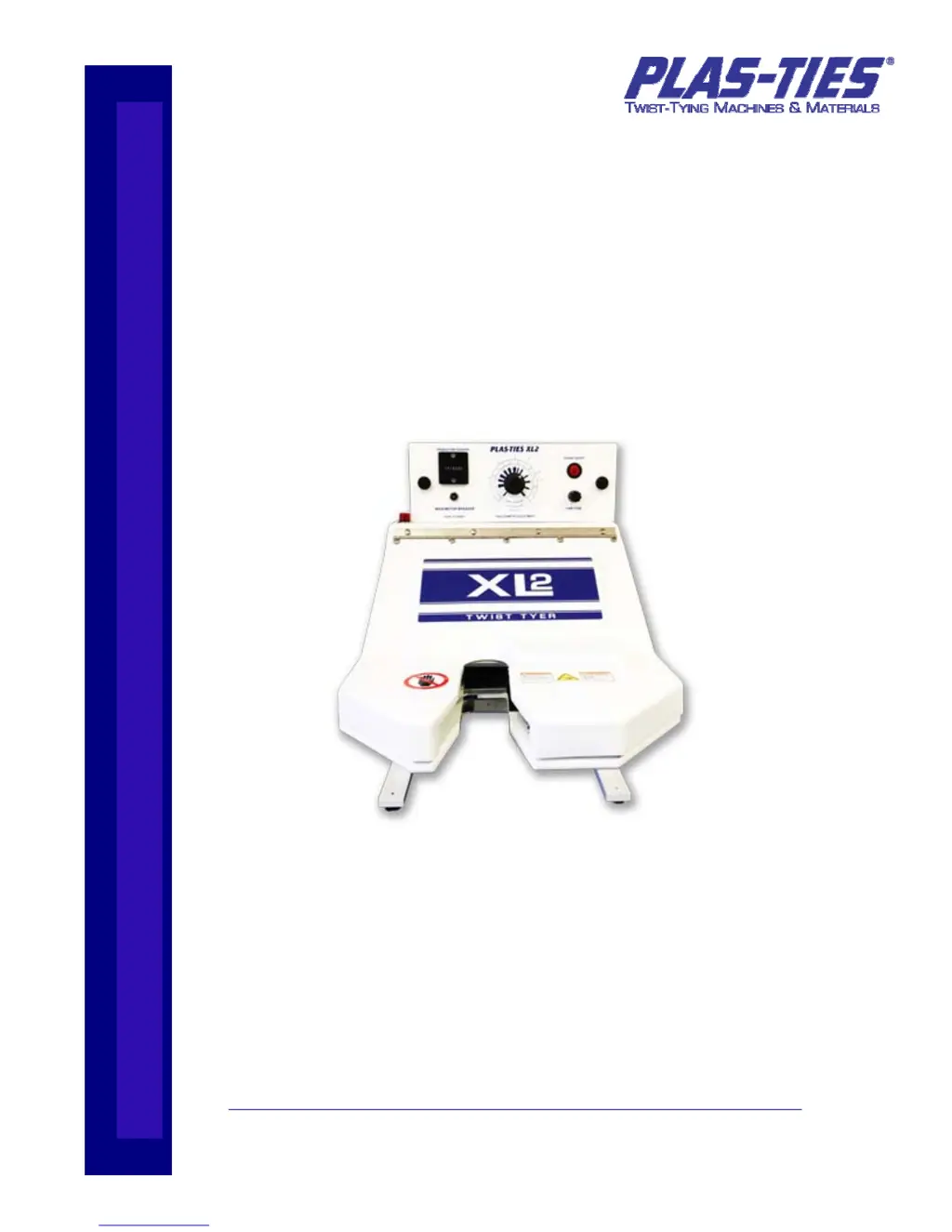

Plas-Ties XL2 - User Manual

Questions and Answers

M
Michael WilsonAug 2, 2025
What to do if my Plas-Ties XL2 Packaging equipment has no ribbon feed?
- D
  Dr. Cassandra Alexander DDSAug 2, 2025
  If your Plas-Ties Packaging equipment is not feeding ribbon, several issues could be the cause. First, check for any obstructions in the ribbon path and clear any debris. Another potential reason is the misalignment of the scissors or the knife not returning to its home position; in this case you should reset the anvil position. The return spring might be broken or not assembled correctly, so inspect the spring and replace it if needed. Finally, ensure that LS-3 (the bottom switch) isn't releasing before the scissors leave the home position; adjust the LS-3 arm so that both the top (LS-2) and bottom (LS-3) switches activate almost simultaneously.
S
Steven SaundersAug 7, 2025
How to fix missing ties in Plas-Ties Packaging equipment?
- G
  Glenda CardenasAug 7, 2025
  If your Plas-Ties Packaging equipment is producing missing ties, it could be due to a few reasons. Check the ribbon length and adjust it for a longer length. Another potential cause is the twister being installed backward; to fix this, unscrew the twister and reinstall it 180 degrees.
M
Michael HarrisAug 12, 2025
Why is there no ribbon feed in my Plas-Ties XL2?
- R
  Richard GardnerAug 12, 2025
  If your Plas-Ties Packaging equipment is not feeding ribbon, it might be because LS-2 (the top switch) is out of adjustment; adjust LS-2. It's also possible that the Time Delay Relay is defective, and in that case, you should replace it.
K
Kristie JonesAug 17, 2025
What to do if Plas-Ties XL2 is producing missing ties?
- P
  Patrick ParkerAug 18, 2025
  If your Plas-Ties Packaging equipment is producing missing ties, the safety device on the arm might be releasing, preventing the scissors from reaching their full forward position. Remove the ribbon from the scissors and check if the safety device is working correctly. Another potential issue is a misaligned cutter knife.
B
bthompsonAug 22, 2025
How to troubleshoot no ribbon feed in Plas-Ties XL2?
- D
  Deborah WellsAug 22, 2025
  If your Plas-Ties Packaging equipment is not feeding ribbon, first check if the ribbon drive pressure wheel is making proper contact with the ribbon drive wheel. Also, examine the chain sprocket on the drive wheel to see if it's loose; if it is, tighten the set screw.
B
Blake AustinAug 27, 2025
Why does my Plas-Ties Packaging equipment have missing ties?
- B
  brobbinsAug 27, 2025
  If your Plas-Ties Packaging equipment is producing missing ties, it could be due to a malfunction of the Time Delay Relay, resulting in sporadic ribbon length. The suggested solution is to replace the Time Delay Relay.

Summary

PLAS-TIES XL2 Machines Operating Manual

General Information

Introduction and Machine Overview

Overview of the PLAS-TIES XL2 machine, its capabilities, and options.

Technical Support Information

Details on technical support availability, hours, and contact methods.

Supplies and Service Information

Details on ordering supplies, service, and contact information for Plas-Ties.

Repair and Service Requests

Procedure for requesting repairs, including obtaining an RMA number and required information.

Safety Instructions (Part 1)

General safety precautions for operating the XL2 machine, covering work area and personnel.

Safety Instructions (Part 2)

Continued safety guidelines, including handling electrical connections, apparel, and maintenance.

Warranty Details and Limitations

Information on the warranty coverage, activation requirements, and conditions that void the warranty.

Machine Specifications

Model Designation and Performance

Specifies the model, performance metrics like ties per minute, and product twist count.

Power, Dimensions, and Spools

Details power requirements, physical dimensions, weight, and recommended tie spools.

Machine Operation

Major Component Descriptions

Descriptions of key machine components such as Brake Assembly, Ribbon Chute, and Stop Guide.

Component Adjustments (Scissor, Twister, Cutter)

Instructions for adjusting the Scissor, Twister, and Ribbon Cutter for optimal performance.

Product Tying Stages

Step-by-step explanation of the automated tying process, from product insertion to completion.

Mounting Options

Details on the Standard Mount, Side Mount, and Pedestal Stand options for the machine.

Pedestal Stand Assembly Instructions

Step-by-step guide for assembling the optional pedestal stand for the XL2 machine.

Brake Assembly Options

Visual representation and description of the Standard Small Brake Arm option.

Brake Assemblies Parts Listing

List of parts for the different brake assembly options available for the XL2.

Loading Twist Tie Material

Procedure for correctly loading the twist tie ribbon material into the machine.

Tying Operation Procedure

Instructions on how to insert product and execute the tying cycle.

Chutes and Ribbon Guide

Information on chute lengths and a graph relating product diameter to ribbon length.

Tying Adjustments (Dial, Guides, Motor)

Guides for adjusting the tying diameter dial, stop guides, and ribbon drive motor.

Machine Maintenance

General Maintenance and Lubrication

Overview of maintenance, including lubrication points and frequency for long service life.

Preventive Maintenance Record

Template for recording scheduled maintenance activities and inspections.

Troubleshooting Guide

Troubleshooting Solutions Matrix (Part 1)

Matrix listing common issues, their causes, and remedies for machine malfunctions.

Troubleshooting Solutions Matrix (Part 2)

Continued troubleshooting solutions for machine operation problems and tying consistency.

Parts and Assemblies

Machine Parts Identification

Detailed list of individual components with item numbers, part numbers, descriptions, and quantities.

Assembly Parts Identification

List of components categorized as sub-assemblies for the machine.

XL2 Spare Parts Kit

List of components included in the XL2 Spare Parts Kit and replacement chains.

Explosion Chart

Exploded View Diagram

Visual exploded view of the machine components for identification and assembly reference.

Case and Cover Components Diagram

Diagram illustrating the parts associated with the machine's case and cover.

Electrical System

Electrical System Functions

Explanation of how the electrical system components interact during the tying cycle.

Electrical System Parts List

List of electrical components, including relays, switches, motors, and their part numbers.

Electrical System Details and Layout

Diagrams showing the layout of relays and sockets within the control box.

Plas-Ties XL2 Specifications

General

Brand	Plas-Ties
Model	XL2
Category	Packaging equipment
Language	English
