ACTP715
Installation: Primary Unit
GATE OPENS
INSIDE
White Sm.
Green Sm.
Red Lg.
Black Lg.
White Lg.
Black Sm.
Red Sm.
GATE OPENS
OUTSIDE
White Sm.
Green Sm.
Red Lg.
Black Lg.
Black Sm.
White Lg.
black Sm.
Red Sm.

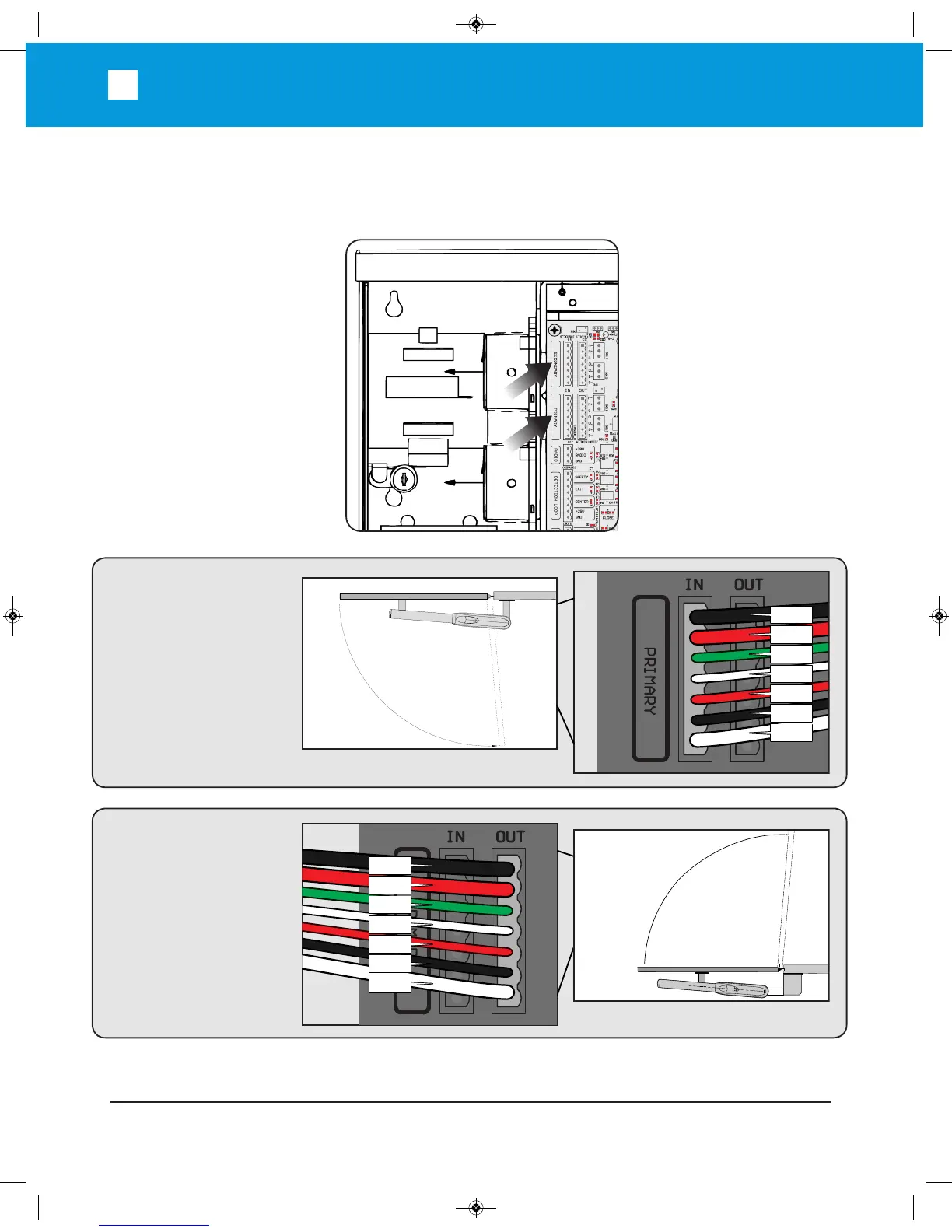

SINGLE UNIT CONNECTION:
Connect the wire harness
to the PRIMARY “IN”
connector if the gate
opens inside.
Connect the wire harness
to the PRIMARY “OUT”
connector if the gate
opens outside.
B+
M-
M+
G
OL
B-
B+
CL
