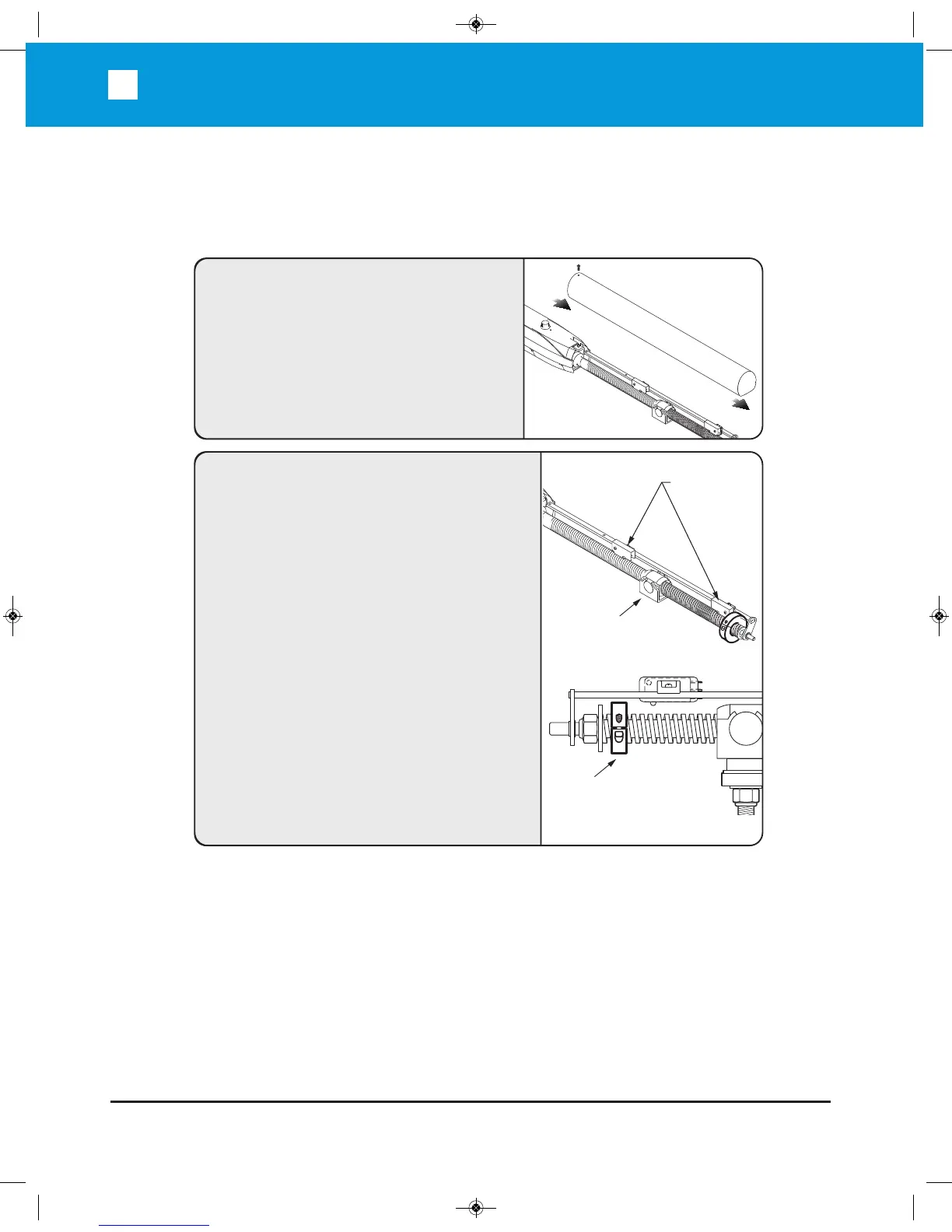

LIMIT SWITCH SET-UP:
STEP 6
Adjust the limit switches by loosening the screws
on the limit switch holder, then position the limit
switches to the desired positions.
Then move the gate manually and make sure
that the limit switches click at the desired open
and closed positions by touching the lead screw
carrier.
Tighten the screws on the limit switch holder
once the proper position has been determined.
Make sure the optional Travel Limiter is at least
1/8” apart from the Close Limit Switch.
STEP 5
Remove the screw and take the cover off by
sliding out the cover.
Limit Switches
Lead Screw
Carrier
Travel
Limiter
