PlayStation PS4 - DUALSHOCK 4 CONTROLLER LAYOUT

;
D"
#$%&'(%()*+","-'./"0%+-%$!
9-%$'3*1B",">)/.$.''"1*+(/*$$./"G5/*+(H"

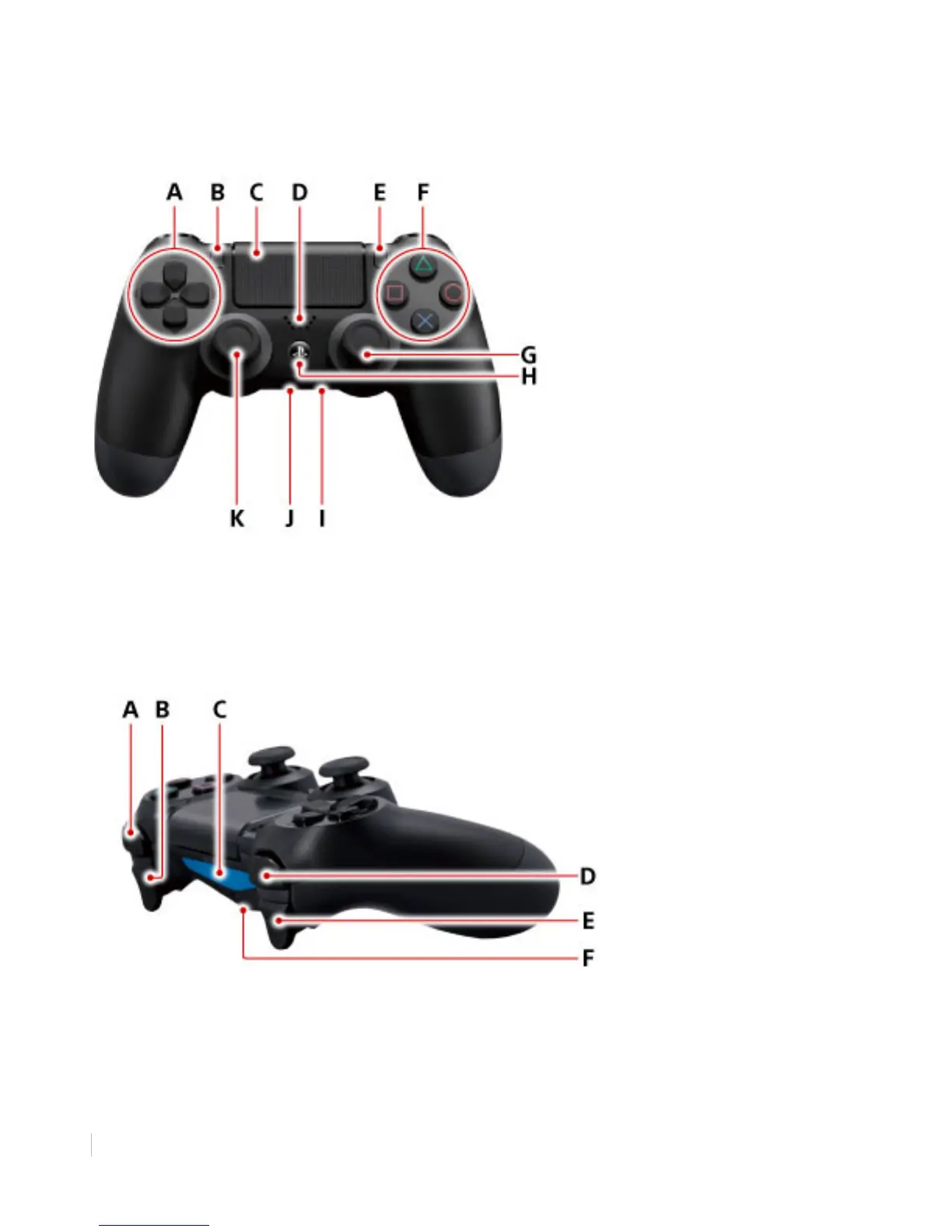

Figure 4: DUALSHOCK 4 Wireless Controller front view
9-%$'3*1B",">)/.$.''"1*+(/*$$./"G7%1BH"
Figure 5: DUALSHOCK 4 Wireless Controller back view
A) Directional!B uttons!
B) SHARE!Button!
C) Touch!Pad!(Button)!
D) Speaker!
E) OPTIONS!Button!
F) Face!Buttons!(Clockwise!
from!12!–!Triangle!/!Circle!
/!X!/!Square)!
G) Right!Stick/R3!Button!
H) PS!Button!
I) Stereo!Headset!Jack !
J) Extension!Port!
K) Left!Stick/L3!
A) R1!Button!
B) R2!Button!
C) Light!Bar!
D) L1!Button!
E) L2!Button!
F) USB!Port!
