PlayStation PS4 - PLAYSTATION 4 HARDWARE LAYOUT

#$%&'(%()*+","-'./"0%+-%$"
@!
#$%&'(%()*+","G5/*+(H"

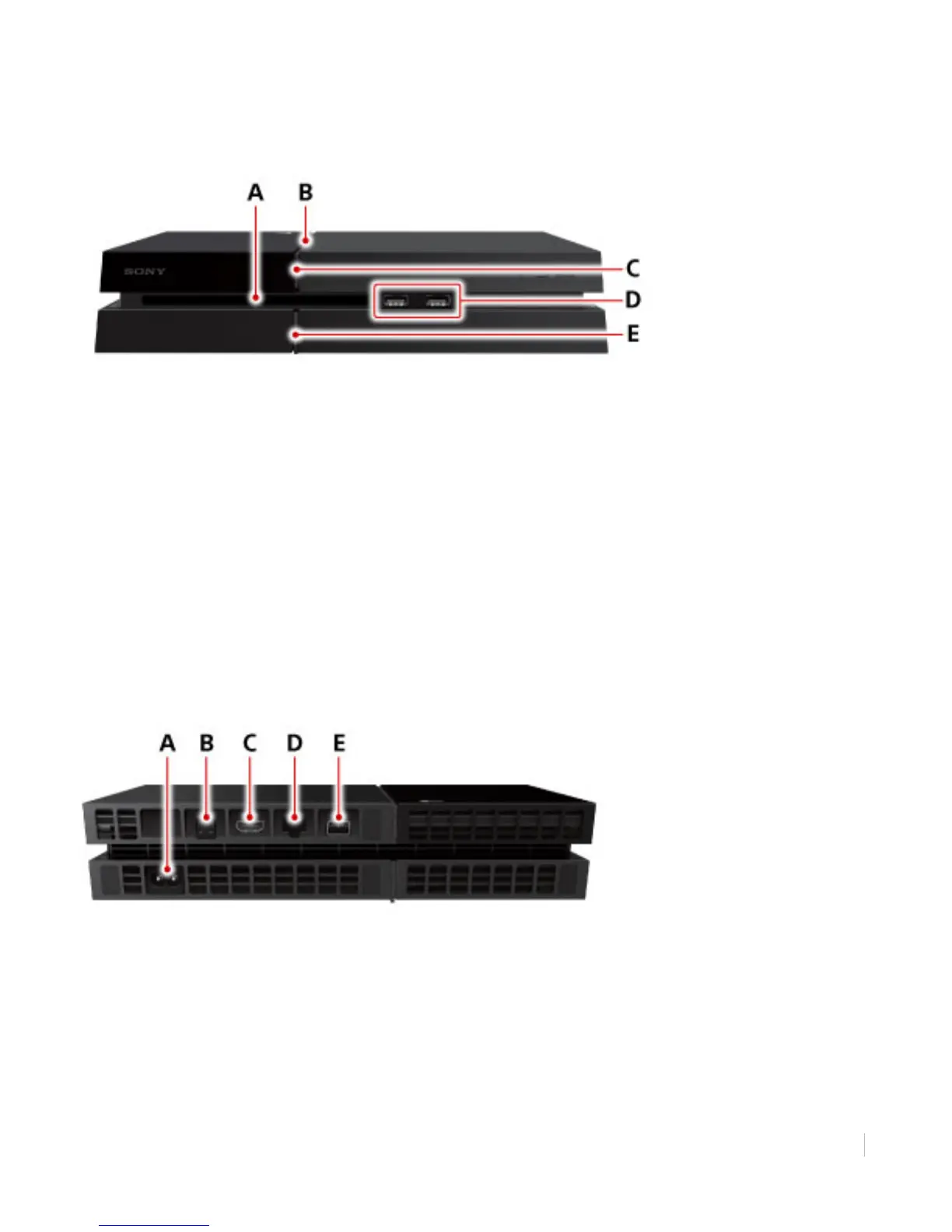

Figure 2: PlayStation 4 front view
A) Disc Slot
B) Power Indicator
C) Power Button
D) USB Port
E) Eject Button
POWER INDICATOR LIGHT
White = Powered On
Orange = Rest Mode
No Light = Powered Off
Blinking Red = Overheating
#$%&'(%()*+","G7%1BH"
Figure 3: PlayStation 4 back view
A) AC IN Connector
B) DIGITAL OUT (OPTICAL) Port
C) HDMI OUT Port
D) LAN Port
E) AUX Port
