22
Once the heat buffer (36) has been loaded, the regulator stops the pump (6) and enters
SUPERVISION mode. The pump (6) starts in-spite of loaded buffer (36) once the boiler
temperature has exceeded the preset value by 10 C. Pumps (12) and (13) are stopped, and servo
(14) is closed once the buffer temperature has dropped to below Min. buffer temp.
9 Technical Data
Power supply
230V~; 50Hz;
Current consumption by the
regulator
I = 0.02 A
11
Max. rated current
6 (6) A
IP rating of the regulator
IP20, IP00
12
Ambient temperature
0...50 C
Storage temperature
0...65 C
Relative humidity
5 - 85% without
steam condensation
Temperature measurement
range of sensors CT4
0...100 C
Temperature measurement
range of sensors CT4-P
-35...40 C
Accuracy of temperature
measurement using sensors
CT4 and CT4-P
2 C
Connectors
Screw terminals at
supply voltage side -
2.5mm
2
Screw terminals at
control voltage side
- 1.5mm
2
Graphical display
128x64
Overall dimensions
Control panel:
164x90x40 mm
Operating Unit:
140x90x65 mm
Total weight
0.5 kg
Standards
PN-EN 60730-2-9
PN-EN 60730-1
Software class
A
Protection class
suitable to built-into
Class I devices
Pollution degree
2nd pollution degree
Table 1 Technical Data
10 Storage and transport conditions
The controller can not be exposed to
immediate effects of atmospheric conditions
i.e. rain or sunrays. Temperature of storage
and transport should be within scope -15…65
degrees C.
During transport the controller can not be exposed to
vibrations bigger than typical for transport of boilers.
11 REGULATOR INSTALLATION
11.1 Environmental conditions
Due to fire risk it is forbidden to use the
controller in proximity of explosive gases or
dust. Moreover the controller can not be
used in conditions of water steam
condensation or be exposed to effects of
water.
11.2 Mounting requirements
Regulator should be installed by qualified and
authorized technician with observance of
applicable standards and regulations. The
manufacturer disclaims any liability for
damage caused by non-observance of
instructions specified in this manual.
Regulator is intended to build into other
equipment, and may not be used as a
stand-alone device.
Ambient temperature and temperature of
mounting base should be within the range of
0 - 50˚C. Regulator is composed of two
modules: control panel and operating unit,
connected with electric wire.
11.3 Installation of control panel
The control panel is to be enclosed on a
mounting plate. Proper thermal insulation
between hot boiler walls and the panel and
the connecting tape must be provided. The
space required for the control panel is shown
in rys 20. During installation, follow the
guidelines below.
STEP 1
A hole must be made in the mounting plate,
in accordance with the drawing below.

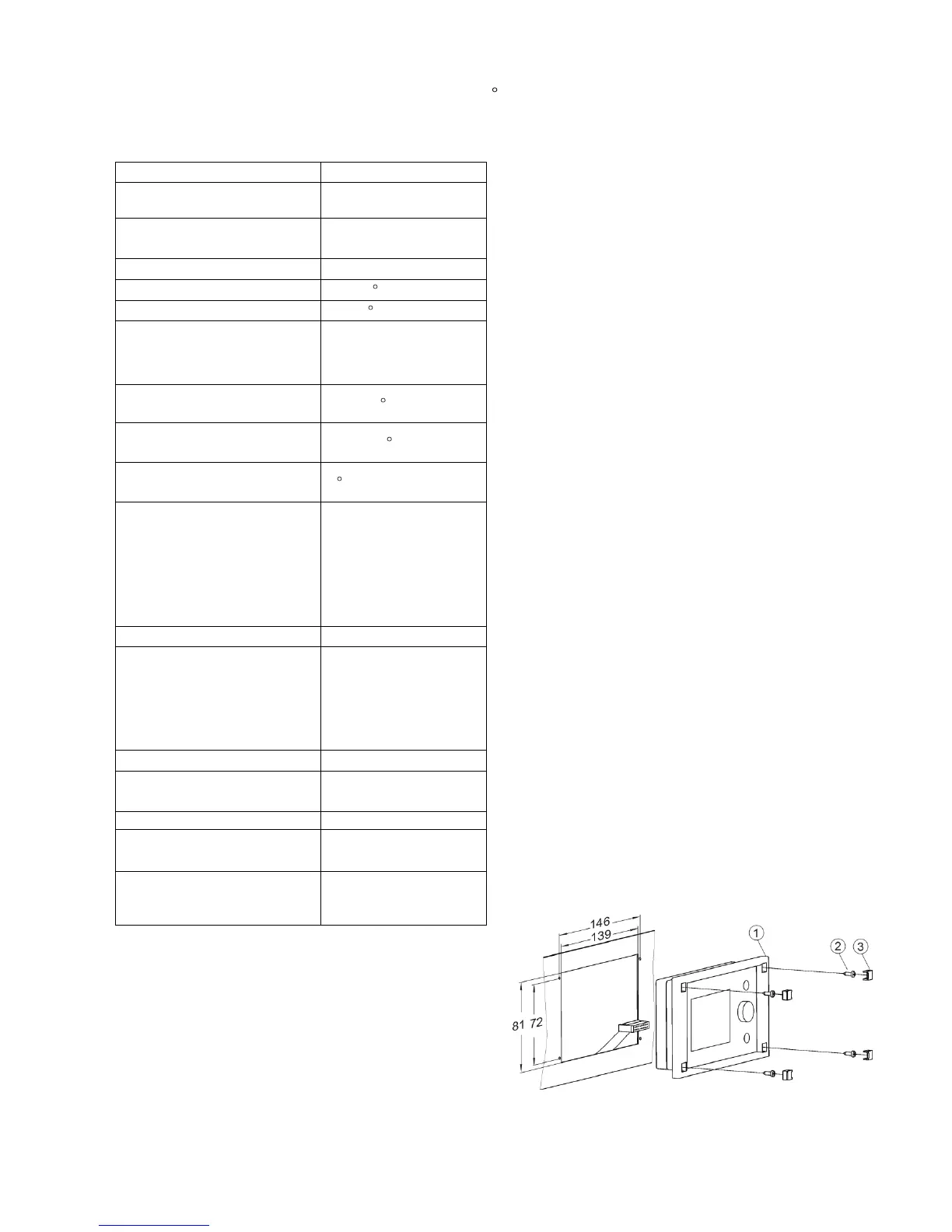

Fig. 18 Fitting the regulator in a mounting plate, where:
1 – control panel, 2 – sheet metal screw
2.9x13, 3 – hole plug.
