Plum ecomaxx 800 R2 User Manual

8
7 Operating the regulator
7.1 Buttons description

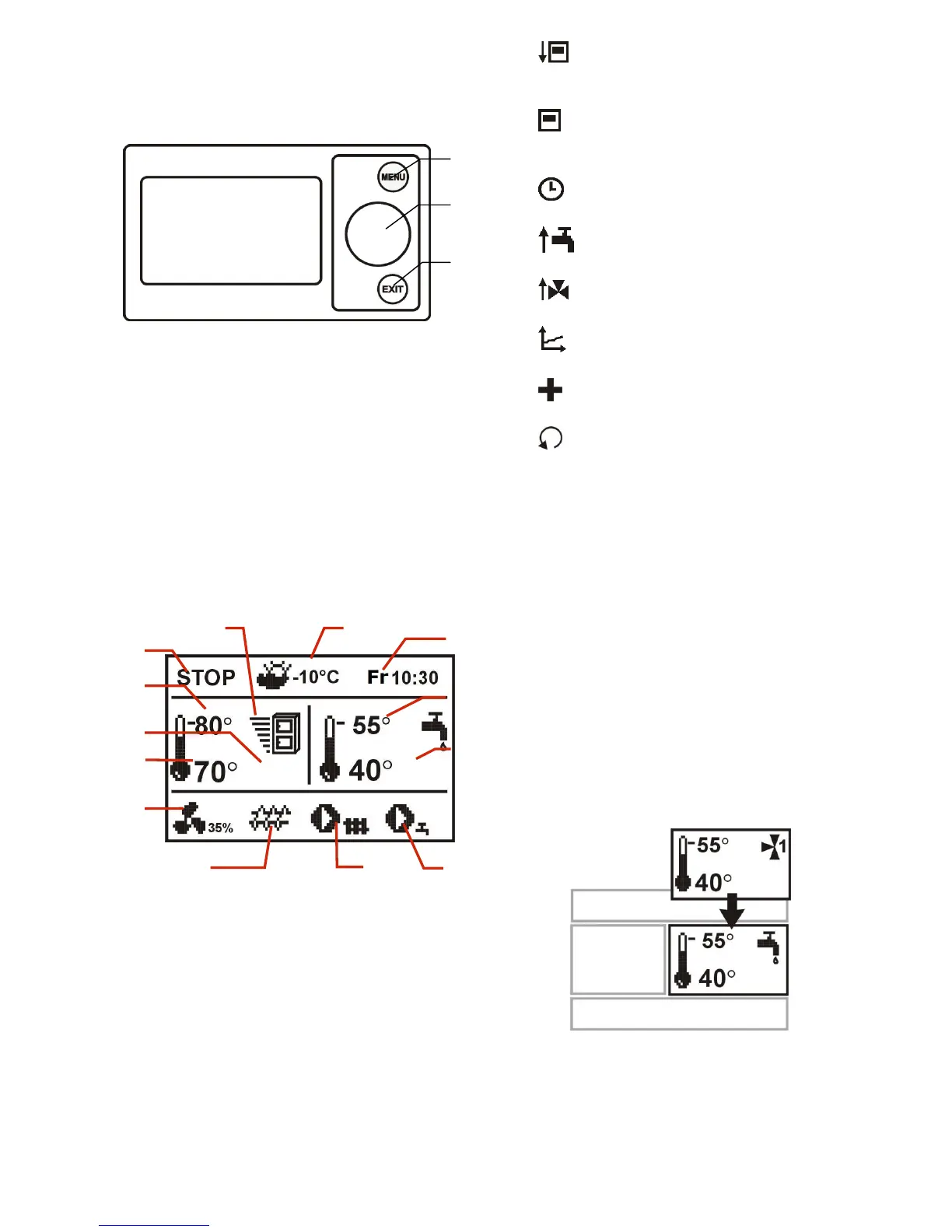

Fig. 1 View of control panel.
Legend:
1. MENU button
2. ,,TOUCH and PLAY” knob
3. EXIT button
Turning the “TOUCH and PLAY" knob
increases or decreased the edited parameter.
This is an element of quick operation of the
regulator. Pushing this knob allows to enter
the given parameter, or to confirm the
selected value.
7.2 Main display window description
Fig. 2 Display main window
Legend:
1. Regulator operation modes: STOP,
FIRING UP, OPERATION, SUPERVISION
2. preset boiler temperature,
3. measured boiler temperature,
4. field of factors influencing preset boiler
temperature
- symbol of decreasing preset boiler
temperature from opening of room
thermostat contacts;
- Preset boiler temperature decrease
due to thermostat disconnection (room
temperature is reached);
- Preset boiler temperature decrease
due to activated time spans;
– Boiler preset temperature during
loading the hot water boiler (HW);
– Boiler preset temperature increase
from mixer circulation;
– weather control switch on for boiler
circulation,
– warning, HWU disinfection mode is
is active,
– active return protection,
5. fan operation symbol,,
6. fuel feeder operation symbol,
7. central heating pump operations symbol,
8. domestic hot water pump operation
symbol,
9. measured temperature of domestic hot
water tank,
10. preset temperature of domestic hot water
tank,
11. clock and day of the week
12. outside (weather) temperature
13. current boiler output level.
Right window on the main screen is
customizable, the user can decide what
information is to be presented there. It is
possible to choose setup presenting info of
HUW by rotating the TOUCH and PLAY knob.
Fig. 3 Auxiliary window
The right window on the main screen can
also present fuel level view, provided that
the fuel level parameter is set properly.
1
7
12
13
11
10
9
8
6
5
2
4
3
3
2
1
