Non-Scanner SKU (SKU 3, 5)
No
Name
Description
1
Receiver
Use with making a phone call
2
LED indicator
Indicate the power status and notification. Refer to LED indicator.
3
Audio jack with cap
Connect headset and the jack is protected by the cap
4
Power button
Turn on/off the device
5
Scan button (Left)
Scan a barcode by pressing (Programmable button)
6
Volume buttons
Control the volume (Programmable button)
7
I/O connector for cradle
Connector for charging and communication with cradle
8
USB connector with cap
USB Type C connector for charging and data communication
and the connector is protected by the cap
9
Speaker
Ring system sound
10
Microphone
Use for collecting sound
11
Touch screen
Displays all operating screen
12
Front camera
Take a picture

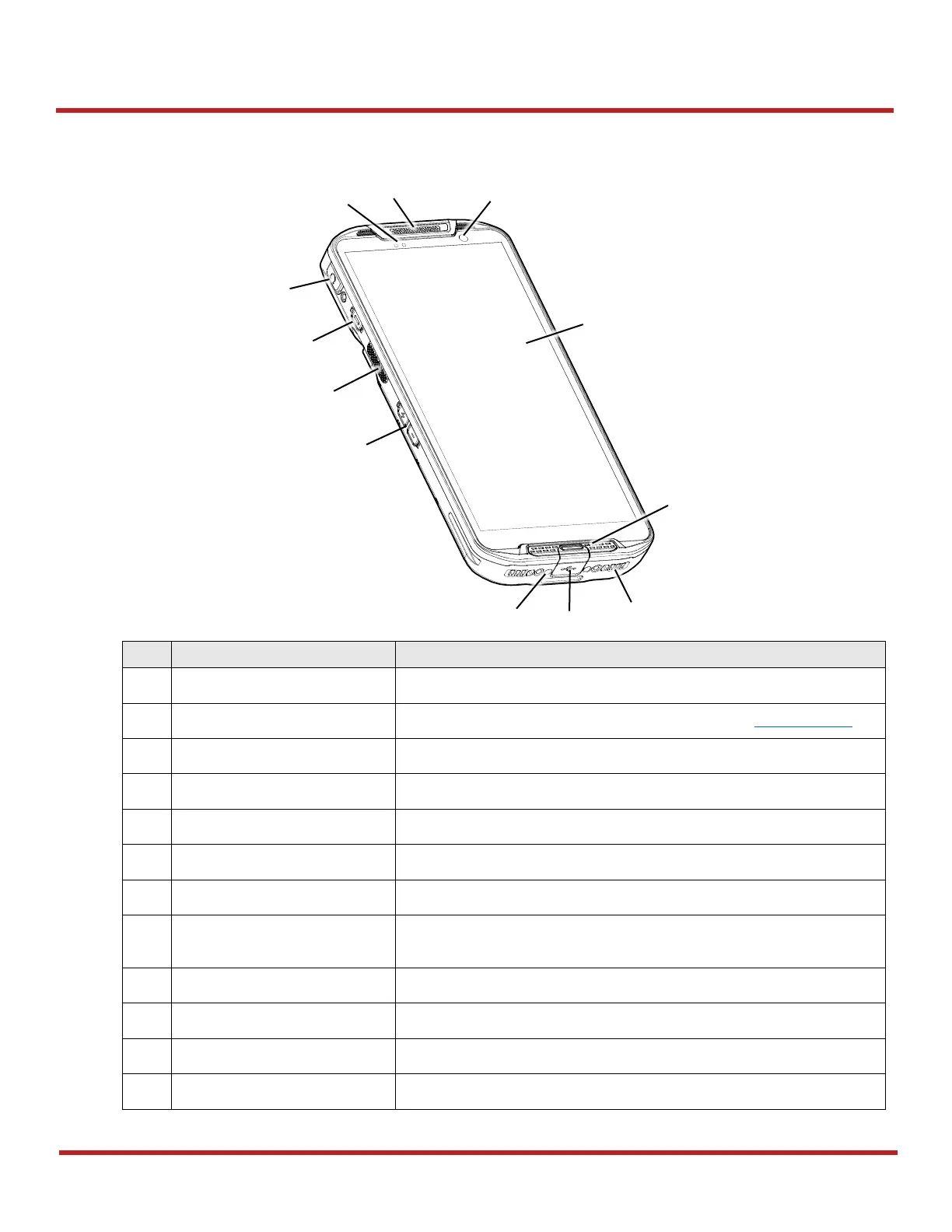

Figure 3 PM95 Non-Scanner SKU: front + left view
